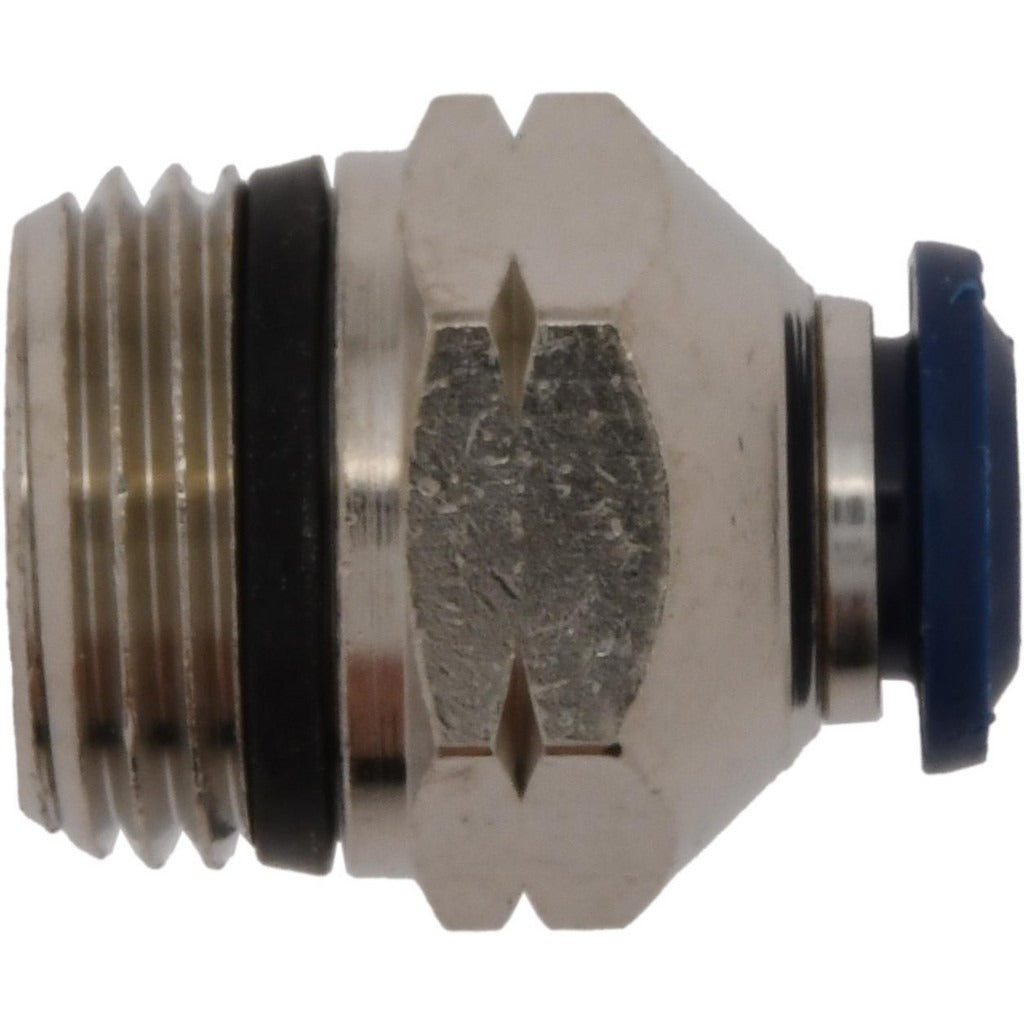

Pro-source 2555514365PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555514365PRO is a push-to-connect tube fitting designed for fast, tool-free connections in compressed air and water systems. It features a 1/4 inch outside diameter tube connection paired with a 3/8 inch universal thread port. The body is nickel-plated brass for corrosion resistance and is rated to 250 psi. An integrated Buna-N O-ring provides the primary seal at the threaded end. Plumbers, HVAC technicians, and industrial maintenance personnel use this type of fitting where quick tube terminations are required without soldering or ferrule compression work.

This fitting is suited for residential and light commercial applications involving compressed air lines and water distribution. The push-to-connect design allows a 1/4 inch OD tube to be inserted and locked without additional hardware. The universal thread port accommodates a wide range of mating connections in pneumatic and fluid system assemblies. Each package contains 5 fittings, making it practical for multi-point installations or service kits where several connections must be made in a single job.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure locking
• Nickel-plated brass construction resists corrosion in wet and pneumatic environments
• Rated to 250 psi for reliable performance in compressed air and water service
• Buna-N O-ring seals the universal thread connection
• Compatible with compressed air and water media
• Sold in a package of 5 fittings

Compatibility

Designed for use with compressed air and water systems requiring a 1/4 inch OD tube and a 3/8 inch universal thread port connection.

Installation Notes

Installation should be performed by a qualified plumber or mechanical technician familiar with pneumatic and fluid piping systems. Depressurize and isolate the line completely before removing any existing fittings or inserting this fitting. Ensure the tube end is cut cleanly and squarely and is free of burrs before inserting into the push-to-connect port. Verify that thread sealant or tape is applied to the universal thread end as required by applicable plumbing or pneumatic system standards.
