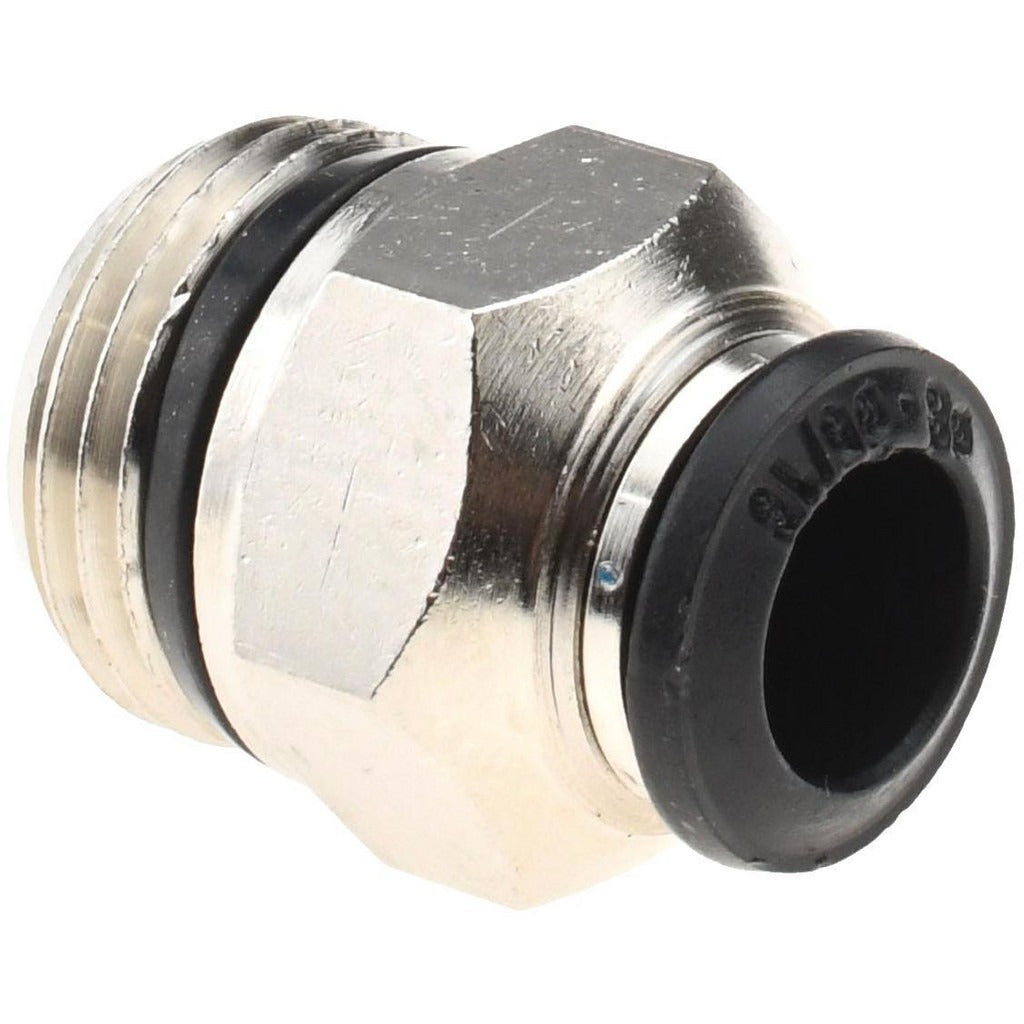

Pro-source 2555509165PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555509165PRO is a push-to-connect tube-to-universal-thread tube fitting designed for fast, tool-free connections in compressed air and water plumbing systems. Constructed from nickel-plated brass, this fitting handles working pressures up to 250 psi and accommodates tubing with an 8.00 mm outside diameter. The universal thread type makes it compatible across a range of standard threaded ports. Licensed plumbers, pipefitters, and HVAC technicians use these fittings to speed up pneumatic and fluid circuit assembly without sacrificing leak integrity at the joint.

This fitting is suited for light commercial and industrial applications involving compressed air lines and water distribution circuits. Its push-to-connect design allows tubing to seat and seal in a single push, eliminating ferrules and compression sleeves. The Buna-N O-ring provides reliable sealing performance across the temperature and pressure ranges common to compressed air service and general-purpose water lines. It is sold in a package quantity of five units per order.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and positive sealing
• Nickel-plated brass body resists corrosion in compressed air and water service
• Rated to 250 psi working pressure
• Buna-N O-ring material compatible with compressed air and water media
• Universal thread type fits a broad range of standard threaded ports
• Accommodates tubing with 8.00 mm outside diameter

Compatibility

Designed for use with compressed air and water systems requiring a push-to-connect tube-to-universal-thread connection with 8.00 mm outside diameter tubing at pressures up to 250 psi.

Installation Notes

Installation is performed by plumbers, pipefitters, or HVAC technicians working on pneumatic or fluid distribution systems. Depressurize and isolate the line before making or breaking any fitting connection. Ensure tubing is cut cleanly and squarely with no burrs before inserting into the fitting to achieve a proper seal. Verify the tubing outside diameter matches the fitting specification before installation.
