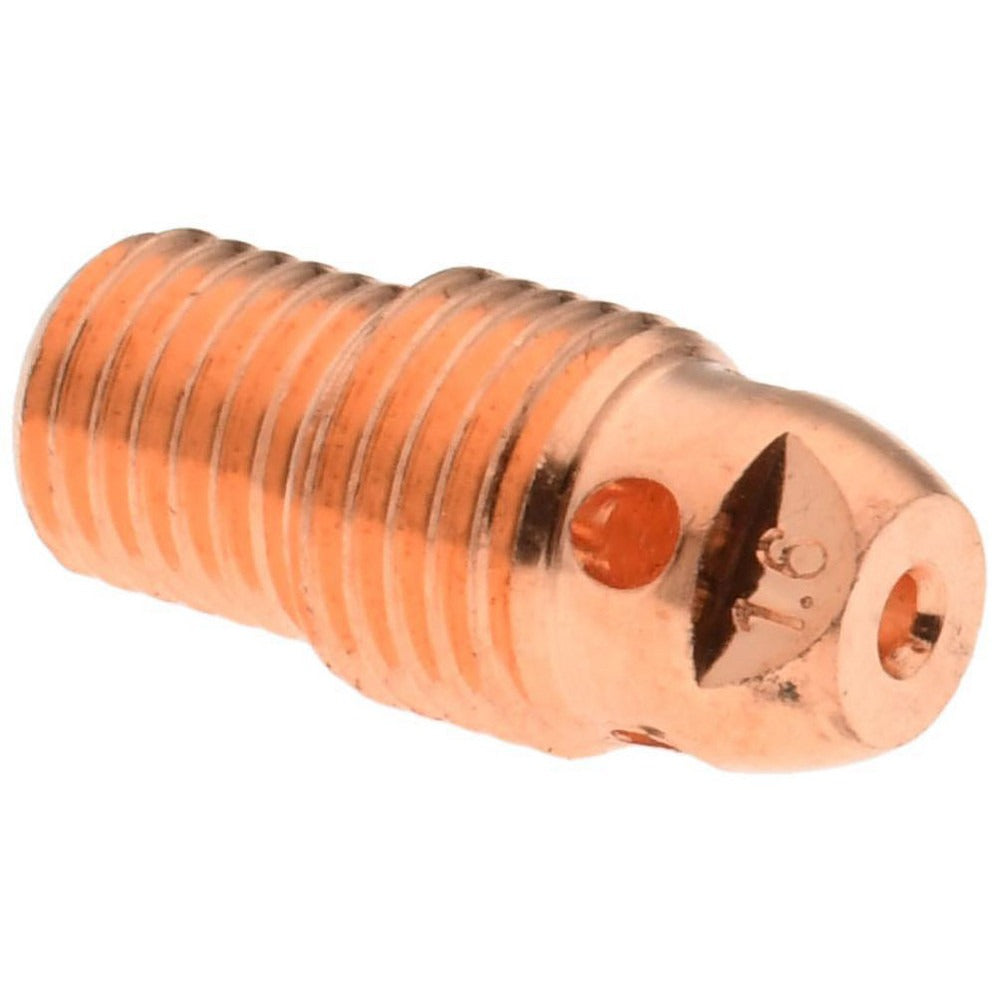

Pro-source 13N27 Tig Torch Collet Body

Product Description

The PRO-SOURCE 13N27 is a TIG torch collet body designed to hold and align the collet and tungsten electrode within a TIG welding torch assembly. The collet body seats between the torch head and the back cap, providing the critical electrical and mechanical connection that keeps the tungsten centered and secure during the welding arc. At 0.82 inches in length and 0.31 inches in width, this is a compact, precision-fit component. Welding technicians and fabricators performing routine torch maintenance or rebuilding a TIG torch will find this a straightforward drop-in replacement for a worn or damaged collet body.

Collet bodies are consumable torch components that degrade over time from heat cycling, spatter, and mechanical wear. The 13N27 is suited for use in TIG torch setups that require a matching collet body to maintain proper tungsten grip and gas flow alignment. Proper collet body fit is critical to arc stability and weld quality in both shop and field welding environments. This part is sold individually and is intended for professional welders performing their own torch maintenance.

Key Features

• Compact form factor: 0.82 inches in length, 0.31 inches in width
• Lightweight construction at 0.01 pounds
• Designed as a direct replacement collet body for compatible TIG torches
• Supports proper tungsten electrode alignment and arc stability
• Sold as a single unit for targeted torch maintenance

Compatibility

Designed as an OEM-style replacement collet body for compatible TIG welding torches requiring a 13N27 collet body. Verify torch model and collet body series before ordering to confirm fitment.

Installation Notes

Collet body replacement is performed by qualified welders or welding equipment technicians. Disconnect the TIG torch from the power source and allow the torch to cool completely before disassembly. Remove the back cap and existing collet body, then seat the replacement collet body firmly before reinstalling the collet and tungsten. Do not force-thread components, as damage to torch body threads will compromise gas seal integrity.
