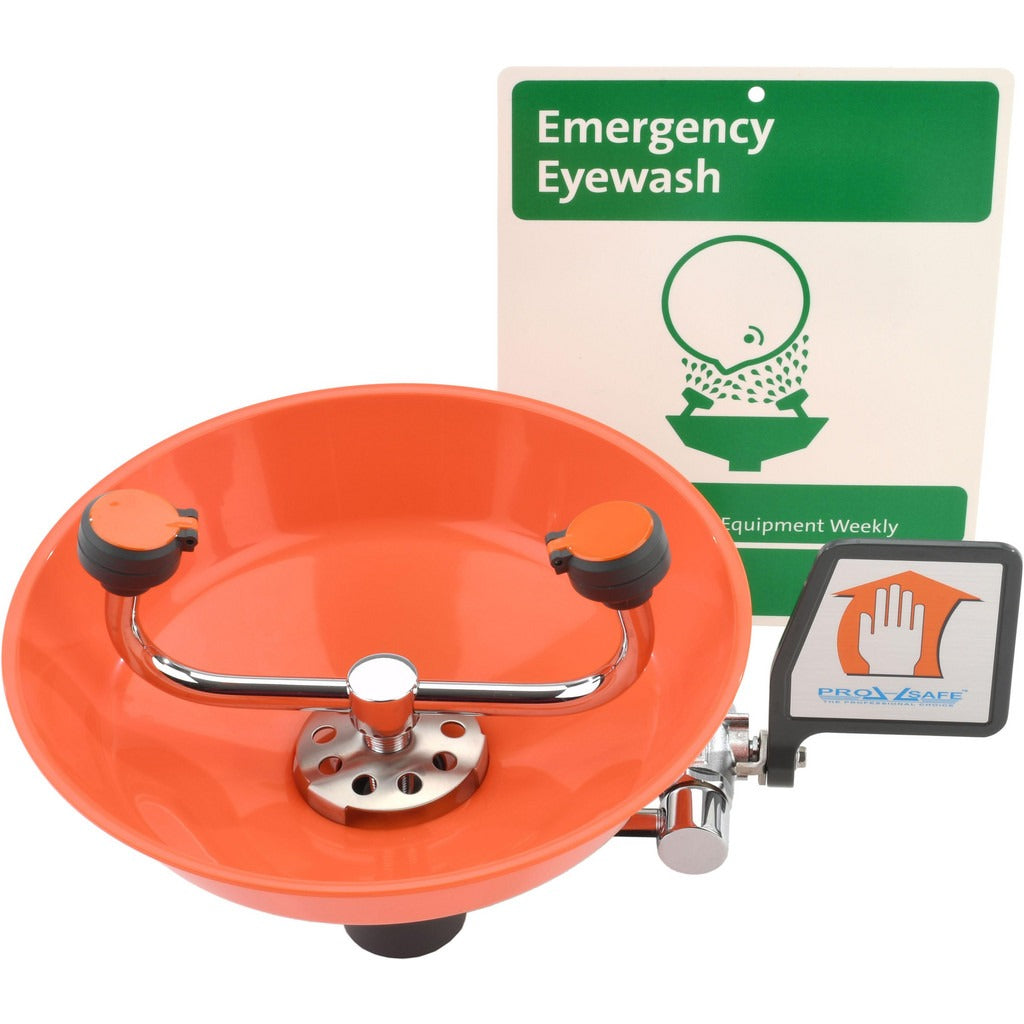

Pro-safe PSG1814P Wall Mount Eyewash Station

Product Description

The PRO-SAFE PSG1814P is a wall-mounted eyewash station with a plastic open bowl, designed for emergency eye and face flushing in industrial, commercial, and institutional settings. It features a 0.5 inch inlet connection and meets ANSI Z358.1-2004 requirements for emergency eyewash equipment. The unit weighs 6 pounds and is intended for permanent wall installation where a dedicated water supply line is accessible. Safety officers, facility maintenance staff, and licensed plumbers are the typical personnel who specify, install, and commission this type of equipment.

The PSG1814P is suited for a wide range of environments where chemical exposure risk is present, including manufacturing floors, laboratories, maintenance shops, and utility areas. Wall mounting keeps the station fixed at a known location for rapid emergency access. The open bowl design allows direct eye and face flushing without requiring the user to manipulate a nozzle cover under duress. This station serves both residential and light commercial applications that require compliant emergency eyewash access points.

Key Features

• ANSI Z358.1-2004 compliant emergency eyewash station
• Wall mount configuration for fixed, accessible placement
• Plastic open bowl design for unobstructed eye flushing
• 0.5 inch inlet for direct connection to standard supply lines
• Lightweight construction at 6 pounds for straightforward installation

Compatibility

Designed as an OEM-style replacement or new-installation eyewash station for wall-mounted applications requiring ANSI Z358.1-2004 compliant emergency eye flushing equipment.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and ANSI Z358.1-2004 placement requirements, which specify accessible location, clearance, and travel distance from hazard areas. Shut off the water supply to the branch line before making the 0.5 inch inlet connection. Verify flow rate and spray pattern meet ANSI requirements after installation before signing off on the station for use. Do not install in areas subject to freezing without freeze-protection provisions.
