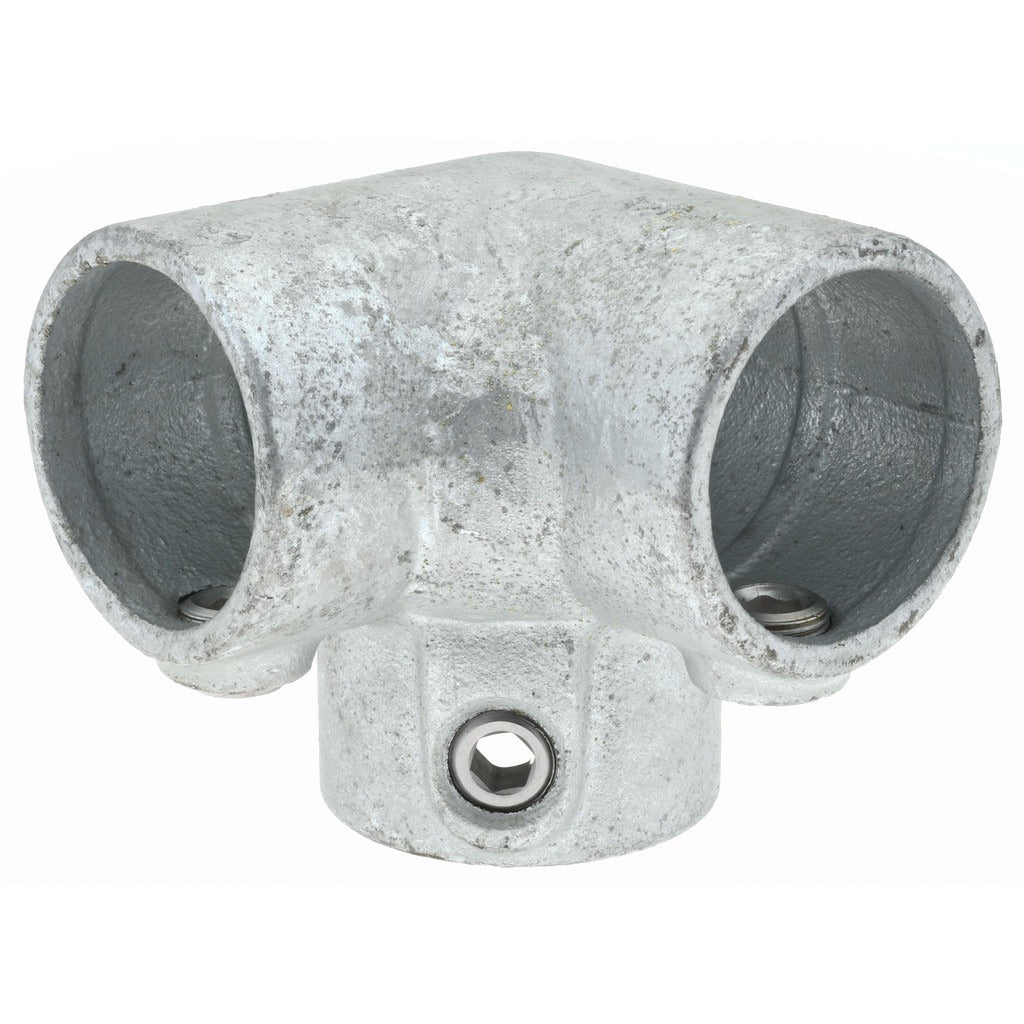

Pro-safe CVB0610-29 Malleable Iron 90 Side Outlet Elbow

Product Description

The PRO-SAFE CVB0610-29 is a 90-degree side outlet elbow pipe rail fitting made from malleable iron with a galvanized finish. It is designed for 1-1/2 inch pipe and provides a three-way directional change in a piping or railing assembly. The galvanized coating resists corrosion in exposed or moisture-prone environments. This fitting is a standard component in handrail, guardrail, and pipe framework systems. It weighs 1.8 pounds and ships as a single unit. Plumbers, pipefitters, and general contractors typically install this type of fitting in both commercial and residential applications.

The CVB0610-29 is suited for 1-1/2 inch pipe rail and structural pipe assemblies. Common install scenarios include stair handrails, safety guardrails, industrial pipe frames, and similar fabricated rail systems. The side outlet configuration allows a branch connection at 90 degrees from the run, making it useful where a lateral pipe must intersect a main rail run. The galvanized finish makes it appropriate for interior and light exterior use where corrosion resistance is a factor.

Key Features

• 90-degree side outlet elbow configuration for three-way pipe connections
• Malleable iron construction for strength and resistance to impact loading
• Galvanized finish provides corrosion resistance in moisture-prone environments
• Sized for 1-1/2 inch pipe — a common dimension in handrail and guardrail systems
• Single-unit packaging with no minimum order requirement beyond one piece

Compatibility

Designed as an OEM-style replacement or new-installation component for 1-1/2 inch malleable iron pipe rail and structural pipe fitting systems.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or qualified contractor. Threaded pipe rail fittings should be assembled using appropriate thread sealant or PTFE tape and tightened with pipe wrenches to avoid over-stressing the fitting. Verify that the pipe size and thread standard match before assembly. Follow applicable local building codes and OSHA guardrail requirements when installing in safety-critical railing applications.
