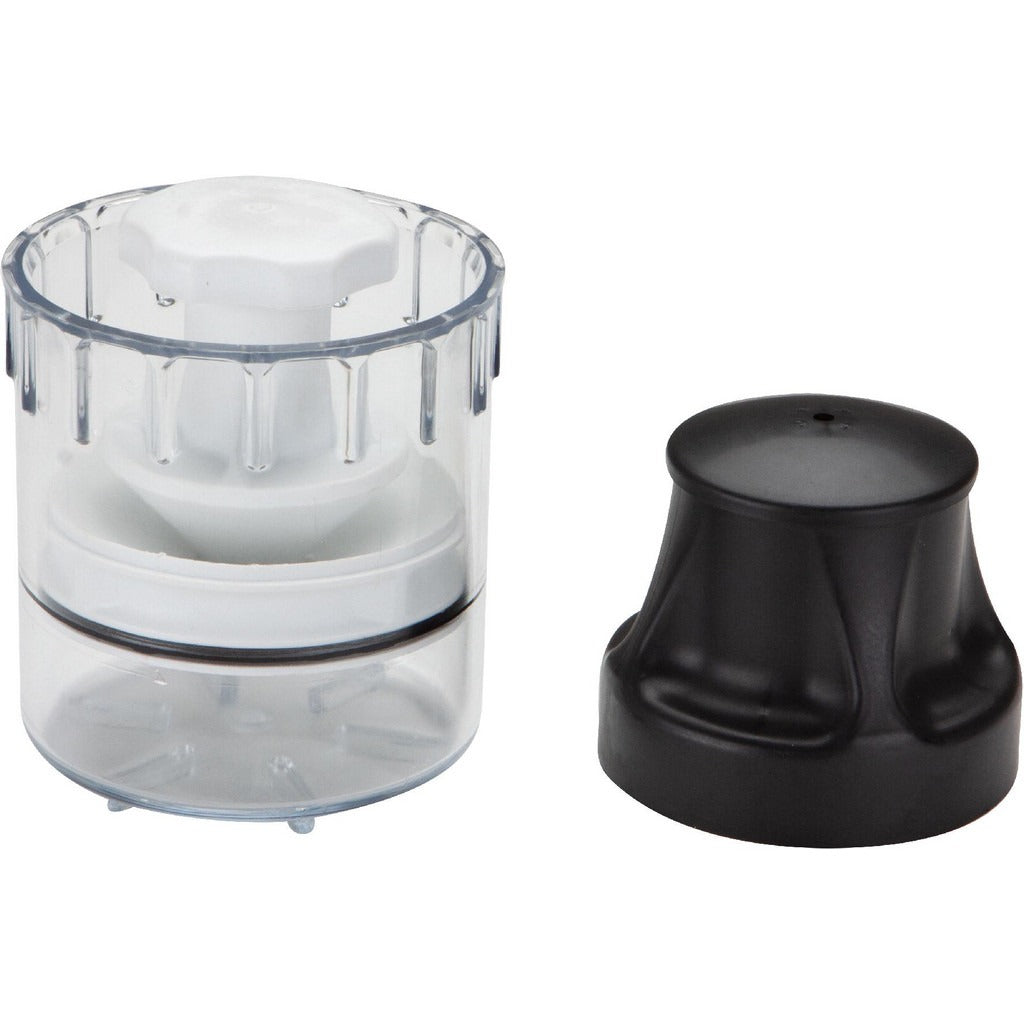

Pro-lube BEP/10 Hand Bearing Packer 1-3/4 to 3-1/2 in

Product Description

The PRO-LUBE BEP/10 is a portable hand bearing packer designed for fast, clean grease repacking of wheel and equipment bearings. The tool forces fresh grease through the bearing rollers and cage while pushing out old, contaminated grease, eliminating the need to work grease in by hand. The plastic construction keeps weight low at 1.2 pounds, and the included dust cap protects the tool between uses. It accepts bearings with an inside diameter of 3.76 inches (95.5mm) and an outside diameter of 4.26 inches (108.2mm), covering a wide range of common bearing sizes used in trailers, axles, and light equipment.

This bearing packer is intended for use with tapered and ball bearings found in trailer hubs, agricultural equipment, and light industrial applications. It is suited for both shop use and field service where a fast, mess-free repack is needed. The tool accommodates bearing ring sizes from 45mm minimum to 90mm maximum outer diameter, covering a broad range of standard bearings encountered in fleet maintenance and service work.

Key Features

• Accepts bearings from 1-3/4 inches (45mm) minimum to 3-1/2 inches (90mm) maximum ring diameter
• Lightweight plastic body at 1.2 pounds for portable field use
• Overall length of 4.61 inches (117mm) for compact storage
• Includes dust cap to keep tool clean between service intervals
• Single-piece unit - no separate components to lose on the job

Compatibility

Designed for use with tapered roller and ball bearings ranging from 45mm to 90mm outer ring diameter, typical of trailer hubs, agricultural equipment, and light industrial machinery.

Installation Notes

This tool is used by lubrication and mechanical technicians performing bearing repack service. Before repacking, ensure the bearing is cleaned of all old grease and inspected for wear or damage. Position the bearing in the packer cone, apply grease to the reservoir, and press the plunger to force grease through the bearing. Repacked bearings should be handled and installed according to the equipment manufacturer's service procedures and applicable shop safety practices.
