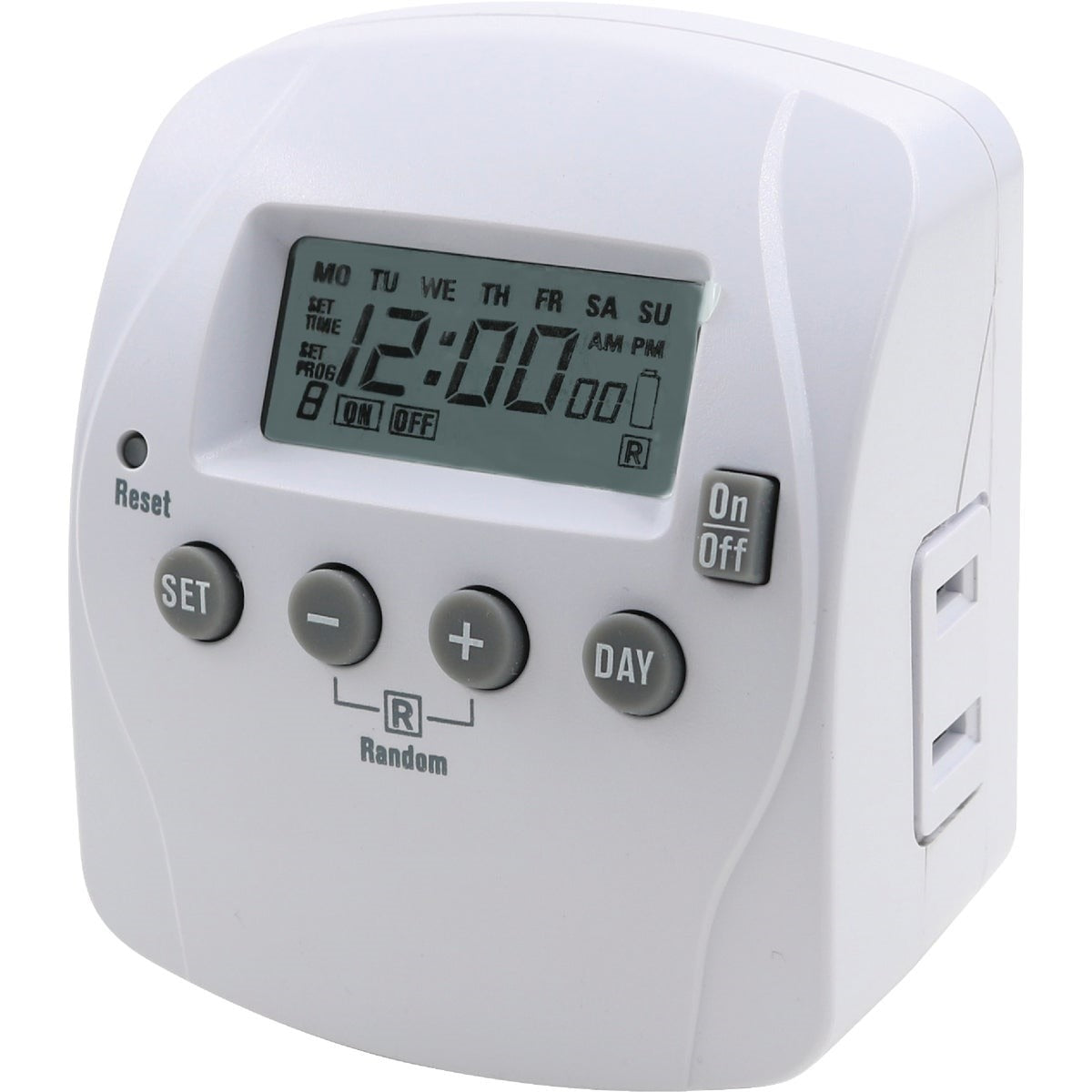

Prime Wire Cable TND002 Indoor Digital 7-day Timer 125V

Product Description

The PRIME WIRE CABLE TND002 is a single-outlet, grounded, indoor digital timer rated at 125 volts that gives electricians and maintenance technicians precise control over connected lighting and devices on a 7-day schedule. The unit features 8 customizable on and off settings per week, programmable by day, hour, and minute using 4 dedicated programming buttons. An angled housing positions the large LCD screen for easy reading even when the timer is plugged directly into a wall outlet. A built-in battery backup retains programming through power interruptions, and a manual on/off override lets users bypass the schedule without clearing settings.

The TND002 is suited for residential and light commercial interior applications where scheduled lighting control or device automation is needed. It installs directly into a standard 125-volt grounded outlet with no wiring required. The random mode function varies the on and off times within the programmed window, a commonly used feature in security lighting applications. Compatible load types include incandescent, CFL, and LED fixtures and devices.

Key Features

• 8 customizable on/off settings programmable by day, hour, and minute
• Random mode varies device on/off cycles within programmed on times for security lighting use
• Large angled LCD screen readable while timer is installed in outlet
• Battery backup retains programming during power outages
• Manual on/off override bypasses schedule without erasing settings
• Compatible with incandescent, CFL, and LED loads

Compatibility

Designed for use with standard 125-volt grounded indoor outlets. Compatible with incandescent, CFL, and LED lighting and devices.

Installation Notes

The TND002 plugs directly into any grounded 125-volt indoor outlet and requires no hardwiring or licensed electrical work for standard plug-in use. Verify the connected load type and wattage do not exceed the timer's rated capacity before plugging in. Follow all applicable NEC guidelines when integrating timers into branch circuit layouts. Do not use in outdoor, wet, or damp locations.

Technical Specifications

• Voltage: 125 volts
• Number of Outlets: 1
• Timer Type: Digital 7-day
• Programmable Settings: 8 on/off settings
• Display: LCD
• Battery Backup: Yes
• Location Rating: Indoor
• Weight: 0.33 pounds
• UPC: 00054732816507

Standard Information

• Brand: PRIME WIRE CABLE
• Manufacturer Part Number: TND002
