Prime-line R 7133 Drawer Track Backplate Plastic Purple 2 Pack

Product Description

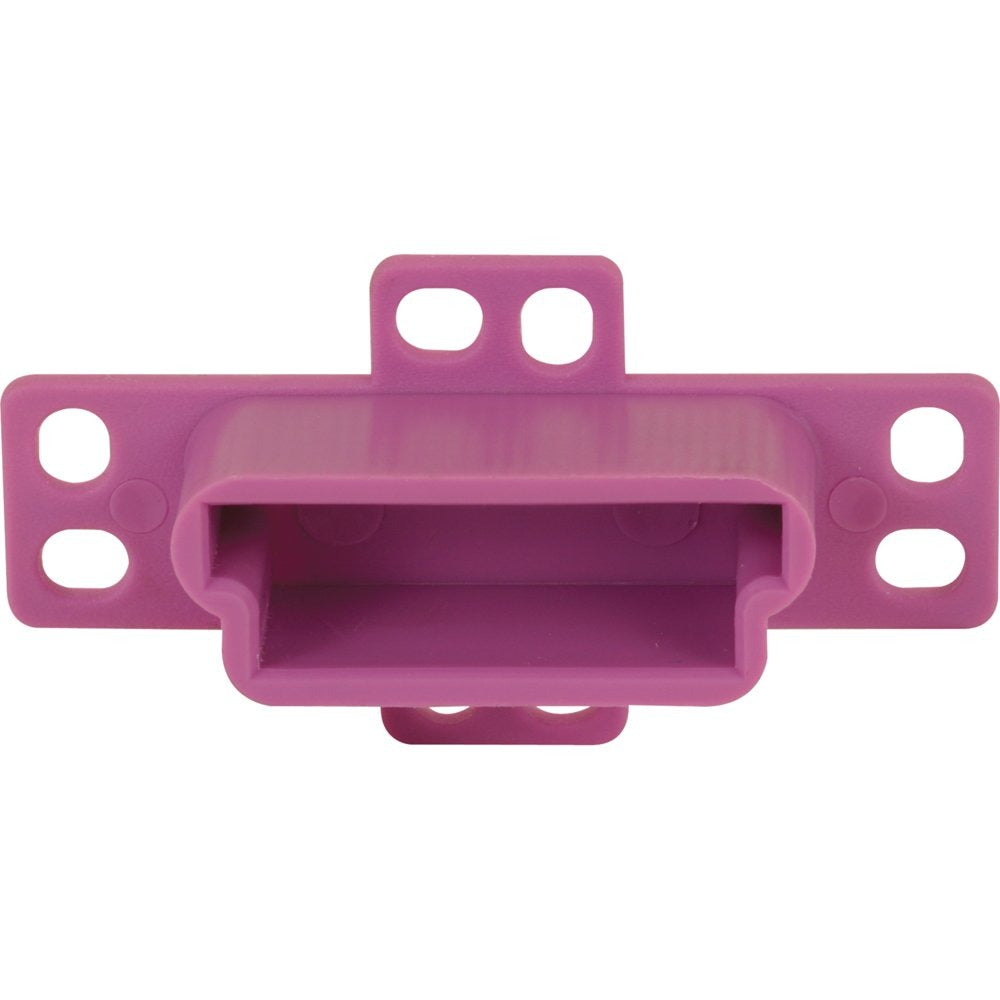

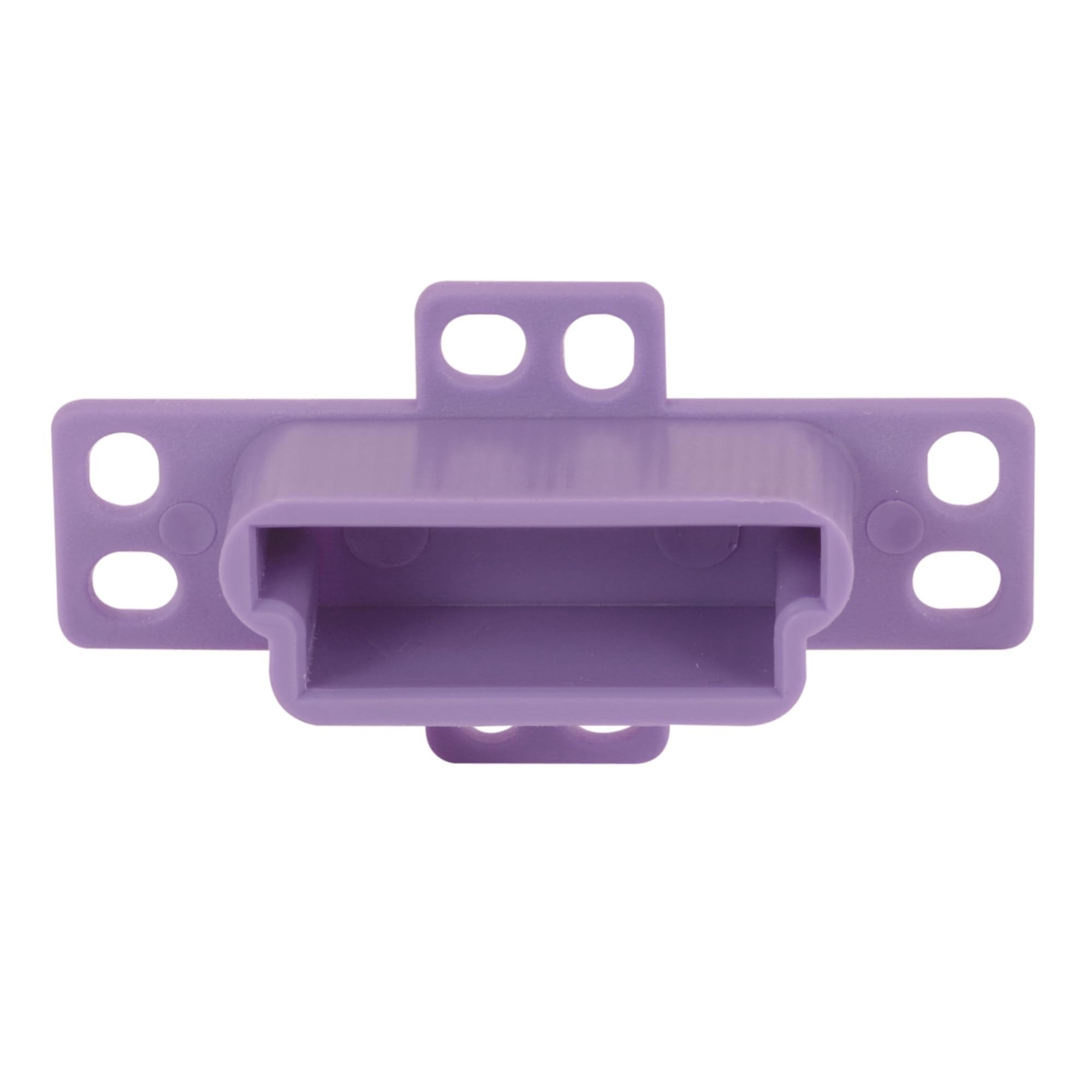

The PRIME-LINE R 7133 is a plastic drawer track backplate designed to mount on the rear of a cabinet and support the drawer track assembly. Sold as a 2-pack, this purple-colored backplate features a 1-1/4 inch opening and a guide length of 2-3/4 inches. The part can be inverted for a self-adjusting application, giving installers flexibility when fitting it to different cabinet configurations. Cabinetmakers, millwork contractors, and general carpenters typically install this hardware when building or servicing drawer systems.

This backplate is designed for use with hat-section style track, rolled edge track, and most other center-mount drawer track systems. It is suited to residential cabinet applications including kitchen cabinets, bathroom vanities, dressers, and utility furniture. The inverted installation option makes it adaptable to varying track heights without additional hardware.

Key Features

• Invertible design allows self-adjusting application for flexible fitment
• Compatible with hat-section style track, rolled edge track, and most center-mount tracks
• Plastic construction - lightweight and corrosion-resistant
• 1-1/4 inch opening accommodates standard center-mount track profiles
• Guide length of 2-3/4 inches for positive rear support
• Sold as a 2-pack for back-of-cabinet installations on a single drawer unit

Compatibility

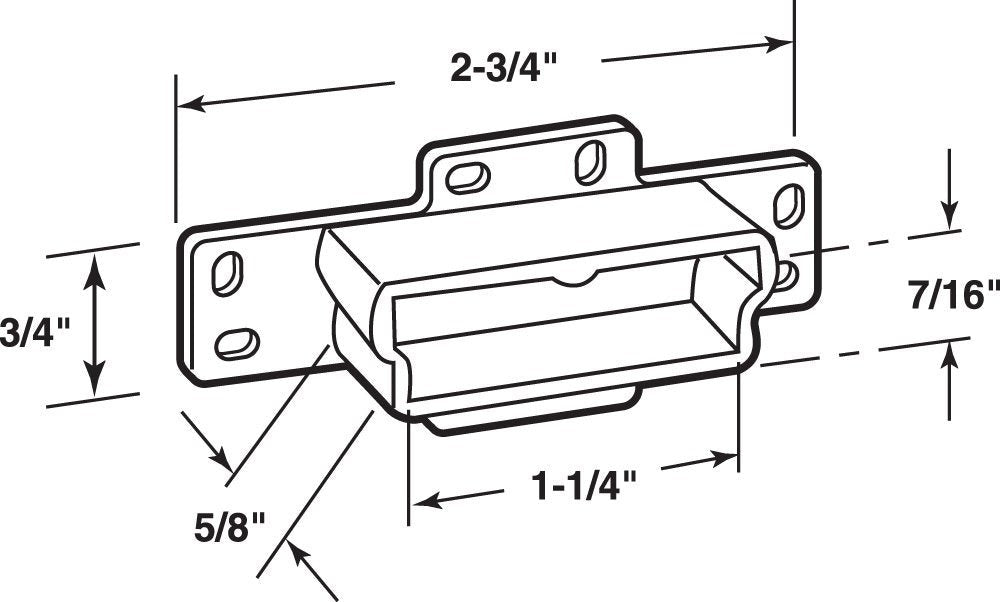

Designed for use on hat-section style track, rolled edge track, and most other center-mount drawer track systems. Refer to the dimensional drawing and compare part dimensions with your existing track before ordering.

Installation Notes

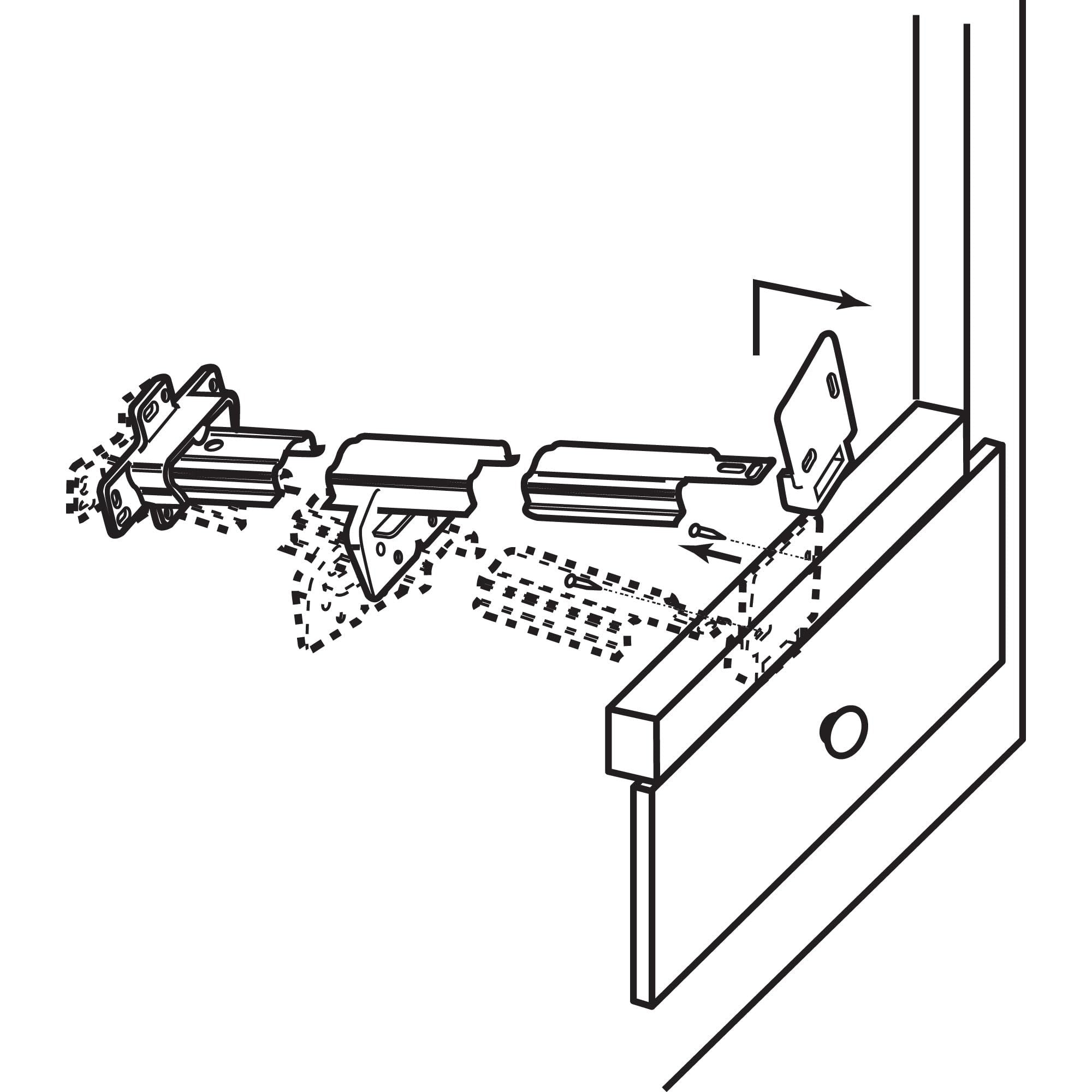

Install at the rear of the cabinet to provide trailing support for the drawer track. Power tools are not required, but a hand drill may be used for pilot holes depending on cabinet material. The backplate can be inverted during installation to achieve a self-adjusting fit - confirm orientation before securing. No disassembly of surrounding cabinetry is typically needed for a straightforward replacement.
