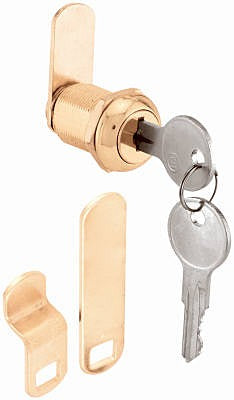

Prime Line Products U 9944 Brass Drawer Cabinet Lock

Product Description

The PRIME LINE PRODUCTS U 9944 is a brass drawer and cabinet lock designed for secure, keyed locking on metal or wood doors and drawers. The cylinder measures 7/8 inches in length with a 3/4 inch outer diameter, and accommodates a maximum cabinet or drawer thickness of 9/16 inches. The face is stainless steel with a brass finish, and the housing is plated die cast with steel cams for durability. This lock uses the Yale Y-13 keyway and ships keyed different, making it suitable for applications where individual key control is required. Licensed tradespeople and skilled maintenance technicians are the typical installers for this hardware.

This lock is intended for residential and light commercial cabinetry, toolboxes, utility enclosures, and drawer assemblies where a compact, cylindrical cam lock is needed. Its versatile cam design allows mounting to both metal and wood surfaces, making it a practical choice for shop furniture, service vehicles, and equipment enclosures. Each package contains 1 lock, 3 cams, 1 trim collar, 1 spur washer, 2 rotation washers, 1 lock nut, and 2 keys, providing all components needed for a complete installation.

Key Features

• Cylinder length of 7/8 inches with 3/4 inch outer diameter
• Stainless steel face with brass finish plated die cast housing
• Steel cams compatible with metal or wood door and drawer mounting
• Uses Yale Y-13 keyway; ships keyed different for individual key control
• Accommodates drawer or cabinet thickness up to 9/16 inches
• Complete kit includes 3 cams, trim collar, spur washer, rotation washers, lock nut, and 2 keys

Compatibility

Designed as an OEM-style replacement or new-install cam lock for metal or wood drawers and cabinet doors requiring a 7/8 inch cylinder with Yale Y-13 keyway compatibility.

Installation Notes

Installation is typically performed by a maintenance technician or skilled tradesperson using standard hand tools. Power down or secure any electrically operated cabinet or enclosure before servicing internal hardware. Ensure the mounting hole diameter matches the cylinder outer diameter of 3/4 inches before installation. Do not overtighten the lock nut, as this can damage the housing or restrict cam rotation.
