Prime Line Products Pl 14155 Aluminum Window Frame

Product Description

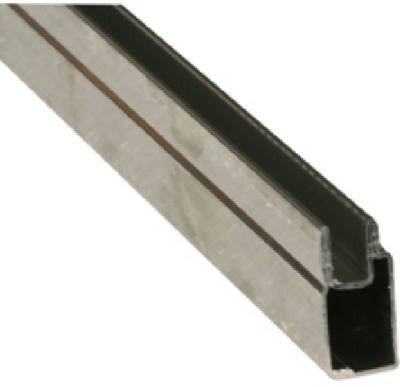

The PRIME LINE PRODUCTS PL 14155 is a mill-finish aluminum window frame extrusion measuring 3/8 inches by 25/32 inches by 94 inches with a .020 wall thickness. Designed for glazing applications, this extruded aluminum frame section provides the structural channel needed to mount single- or double-strength glass panes in standard window assemblies. The mill finish aluminum construction offers corrosion resistance and dimensional consistency for field fabrication or replacement work. Glaziers, window installers, and general contractors use this frame stock when building or repairing aluminum-frame window units. Each unit is sold individually, with a package quantity of 12 available.

This frame extrusion is suited for residential and light commercial window applications where field-fabricated or replacement aluminum frame assemblies are required. It is intended for use with PL14318 corner keys (sold in 20-packs) to form complete frame corners. For single-strength glass installations, pair this frame with P7732 glazing channel (200-foot rolls). For double-strength glass installations, use P7744 glazing channel (200-foot rolls) to ensure proper glass retention and weather seal.

Key Features

• Extruded aluminum construction with mill finish for corrosion resistance
• Dimensions: 3/8 inches by 25/32 inches by 94 inches with .020 wall thickness
• Compatible with PL14318 corner keys for complete frame assembly
• Supports both single-strength and double-strength glass glazing applications
• Consistent profile allows clean cuts and field fabrication without special tooling

Compatibility

Designed for use with PL14318 corner key packs, P7732 200-foot glazing channel for single-strength glass, and P7744 200-foot glazing channel for double-strength glass.

Installation Notes

Installation is typically performed by glaziers or window installation contractors using standard aluminum cutting tools such as a miter saw with a non-ferrous metal blade. Cut frame sections to length and join corners using PL14318 corner keys before setting glass with the appropriate glazing channel. Ensure the frame assembly is properly squared before glazing to prevent glass stress and air infiltration. Follow applicable local building codes for window installation and glass type requirements.
