Prime-line N 6606 Adjustable Pivot Bracket Top Mount Steel

Product Description

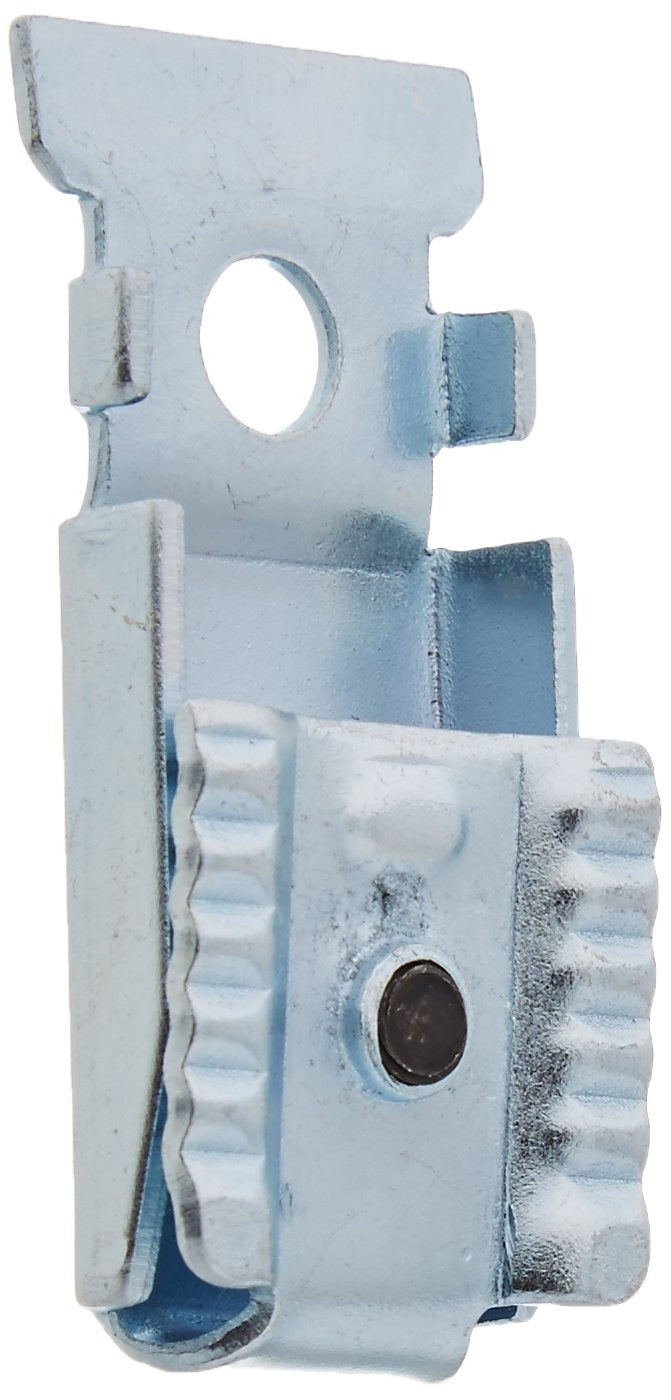

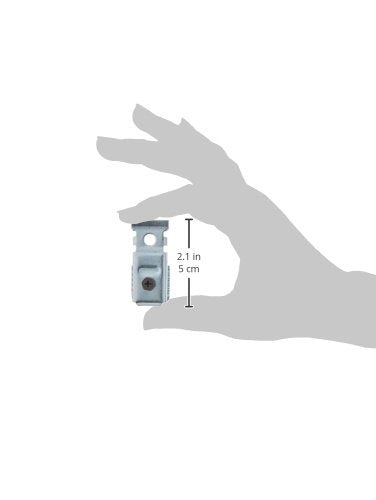

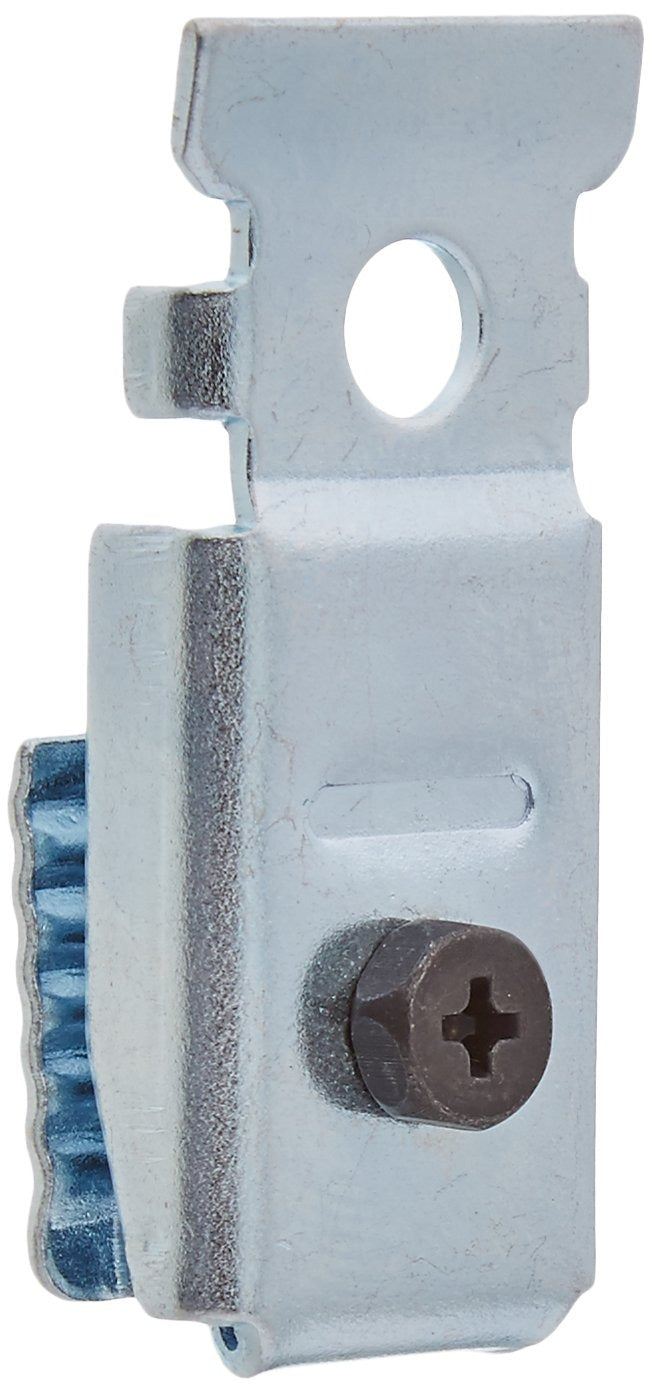

The PRIME-LINE N 6606 is a top-mount adjustable pivot bracket designed for bi-fold door installations. Constructed from steel, this bracket mounts to the top track and provides the pivot point that allows bi-fold door panels to swing and fold smoothly. It features an adjusting screw that allows for fine-tuning of door alignment after installation. The bracket measures approximately 1-15/16 inches in length by 3/4 inch in width, with a 1/4 inch outside diameter pivot post. Mounting hardware is included. This part is typically installed by general contractors, finish carpenters, or experienced DIYers during new installs or hardware replacement service calls.

This bracket is designed for use with 7/8 inch wide top track systems. It fits the Acme 2900 series bi-fold door hardware and other similarly styled door systems that use a compatible top track profile. It is suited for residential interior door applications where bi-fold panels are used for closets, laundry rooms, or similar pass-through openings. The adjustable design makes it a practical replacement part when the original pivot bracket is worn, broken, or missing.

Key Features

• Adjustable design with integrated adjusting screw for post-installation door alignment
• Top-mount configuration fits 7/8 inch wide top track systems
• Steel construction for durability in high-cycle door hardware applications
• 1/4 inch outside diameter pivot post with 1-15/16 inch length
• Mounting hardware included for complete installation

Compatibility

Fits the Acme 2900 series bi-fold door hardware and other similar 7/8 inch wide top track systems.

Installation Notes

Installation is performed by finish carpenters or general maintenance technicians using basic hand tools. Before replacing the pivot bracket, ensure the door panels are fully supported or removed to prevent panel drop during hardware service. Verify that the replacement bracket pivot post diameter and track width match the existing hardware before fastening. Adjust the set screw after mounting to achieve proper door panel alignment and smooth operation.
