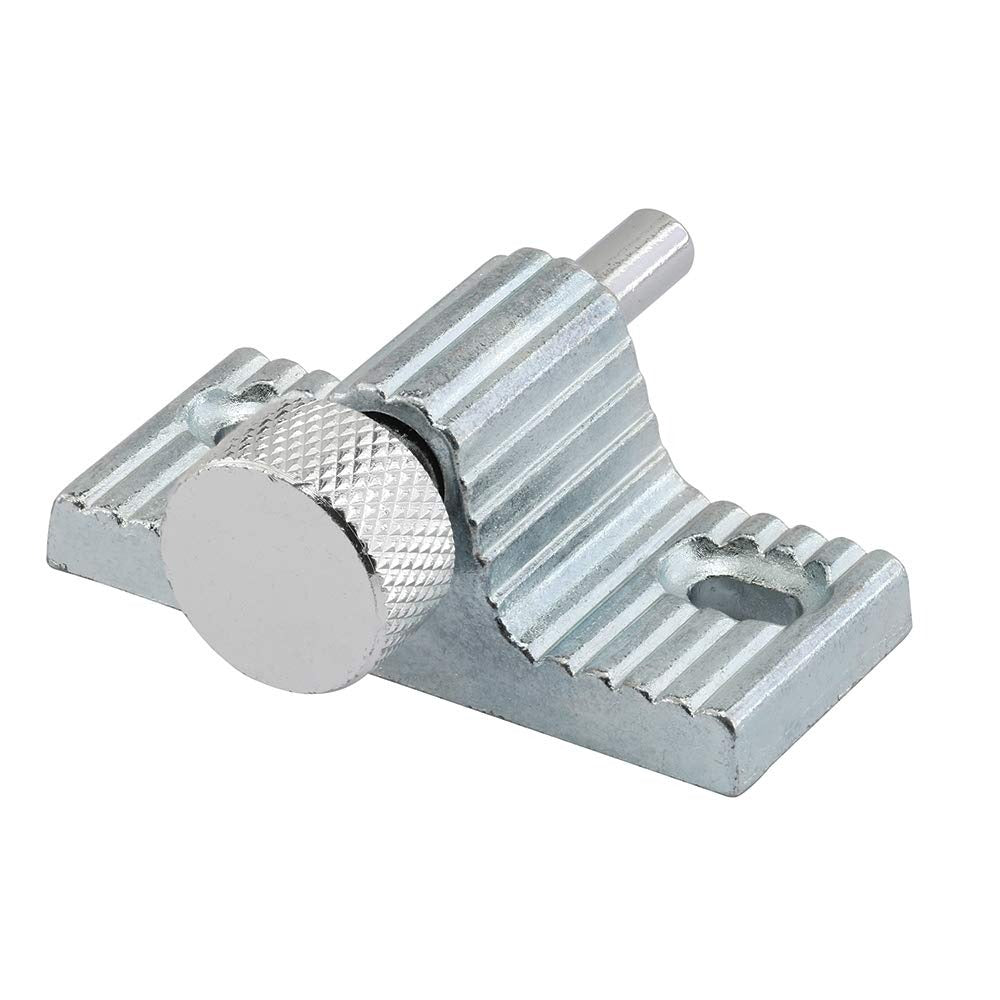

Prime-line MP4002 Twist-in Sliding Door Window Lock

Product Description

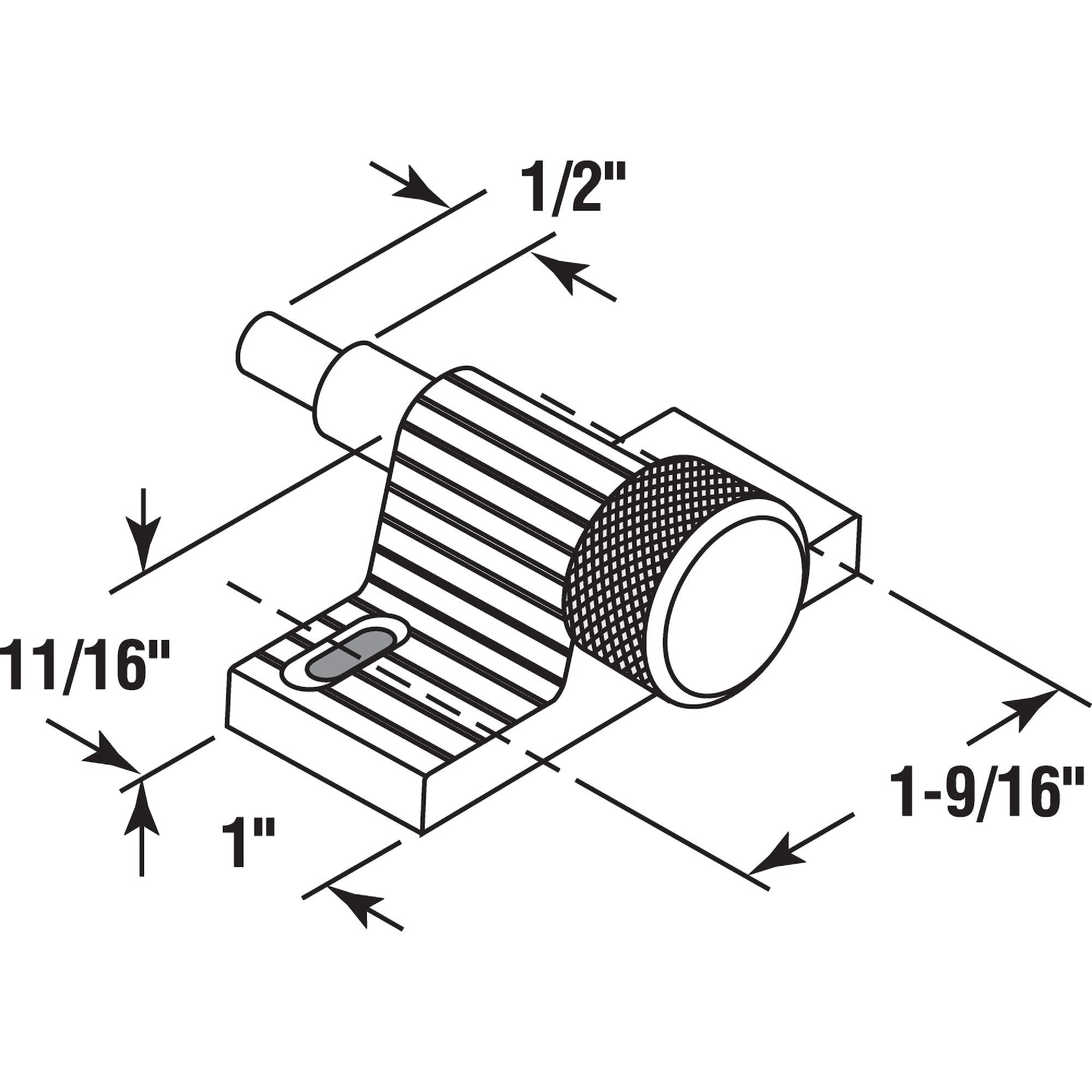

The PRIME-LINE MP4002 is a twist-in secondary lock designed for horizontal sliding windows and patio sliding door systems. The housing is cast from Zamak, a durable zinc-based alloy, and paired with an aluminum bolt. It installs onto the lower back-edge of the sash or door frame and provides an added layer of security when a window or door is held partially open for ventilation or locked fully closed. The bolt delivers a 1/2 inch reach, the body stands 11/16 inch tall, and mounting hole centers are spaced 1-5/8 inches apart. Installation requires minor drilling. Glaziers, window installers, and general contractors typically handle this type of hardware.

The MP4002 is suited for residential and light-commercial applications where sliding windows or patio doors need secondary security beyond the primary latch. It is commonly used as a retrofit or replacement lock on existing horizontal sliding window units and sliding patio door systems. The zinc finish blends with standard aluminum and vinyl window hardware. Because it functions as a secondary device, it can be engaged at a partially open position to allow controlled ventilation while limiting intrusion risk.

Key Features

• Twist-in action allows quick engagement and release without tools
• Zamak cast housing provides rigid, corrosion-resistant support
• Aluminum bolt with 1/2 inch reach for positive stop engagement
• 11/16 inch body height fits within standard sash and door frame profiles
• 1-5/8 inch mounting hole centers for straightforward alignment during install
• Zinc finish compatible with common aluminum and vinyl window hardware finishes

Compatibility

Designed for use on horizontal sliding windows and patio sliding door systems as a secondary security locking device. Mounts to the lower back-edge of the sash or door panel.

Installation Notes

Installation is performed by window and door technicians or general contractors and requires minor drilling into the sash or door frame. Power down any automated door systems before beginning work. Use a properly sized drill bit to align with the 1-5/8 inch mounting hole centers and ensure the bolt path is clear before securing the housing. Do not overtighten fasteners into the Zamak housing, as the material can crack under excessive torque.
