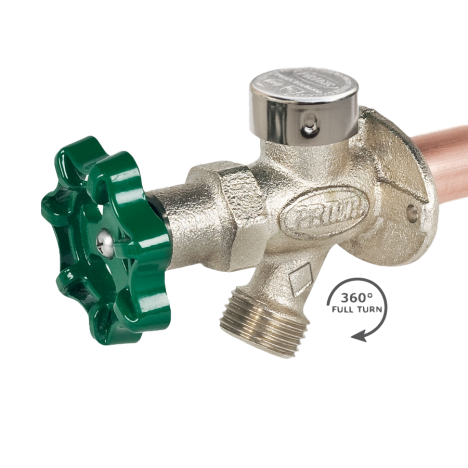

Prier C-144XXC Handle Operated Wall Hydrant 1/2 Inch Crimp PEX

Product Description

The Prier C-144XXC is a wall hydrant designed for reliable water access in areas prone to freezing temperatures. It features an anti-siphon vacuum breaker and a backflow check valve for enhanced safety. Constructed from solid brass, this hydrant provides long-lasting performance with minimal maintenance.

• Solid brass construction ensures durability.
• Designed with a super close coupled stem for efficient operation.
• Includes an anti-siphon vacuum breaker to prevent backflow.

Product Highlights

The Prier C-144XXC wall hydrant is ideal for outdoor applications where freezing may occur. It is easy to install and operate, making it suitable for both residential and commercial use.

Product Information

Standard Information

• Condition: New
• Product Category: Plumbing - Sill Cocks/Hydrants

Technical Specifications

• UPC: 670210321662
• Type: Hydrant
• Product Line: C-144
• Installation Type: Wall Mount
• End 1 Connection Type: Crimp PEX
• End 1 Connection Size: 1/2 Inch
• Warranty: 1 Year
• Finish: Satin Nickel Plated
• Inlet Style: 1/2 Crimp PEX
• ASME: ASME A112.18.1-2018
• ASSE Standards: ASSE 1019
• CSA Certified: CSA B125.1-18
• Collection: C-144 Series
• Flow Rate: 8 gpm
• Handle Material: Metal
• Handle Type: Round
• Height: 3-1/2 in
• IAPMO Listed: Yes
• Material: Brass
• Maximum Temperature: 140
• Pressure - Maximum: 125 psi
• Pressure Class: 125 psi
• Recommended Valve Application: Water
• Sillcock Type: Anti-siphon, Frost-proof
• Valve Body Material: Brass
• Valve Bonnet Type: Threaded
• Valve Operator: Wheel Handle
• Valve Port Opening: Standard Port
• Valve Seat Material: EPDM
• Valve Size: 1/2 in
• Valve Stem: Rising
• Width: 3 in
• Manufacturer: Prier
• Part Number: C-144XXC
• Faucet Type: Wall Hydrant
