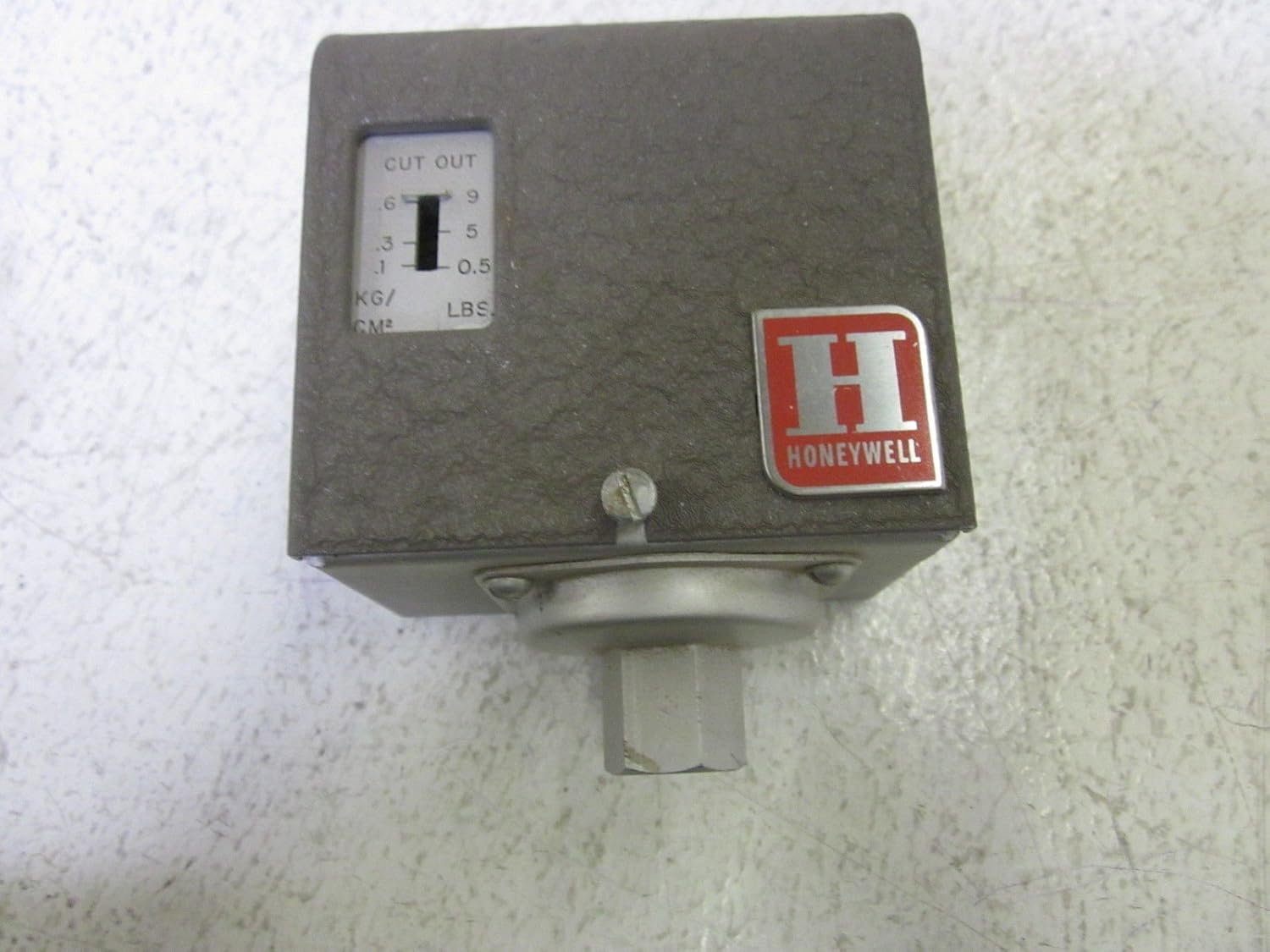

Honeywell PA404B1023 Pressuretrol Controller Pressure Rise 20 psi SPST 0.5-9 psi Differential 24/120/240/277V

Product Description

The Honeywell PA404B1023 Pressuretrol Controller is designed to manage pressure settings for heating systems. This controller makes the circuit at a set point when pressure rises, ensuring system efficiency and safety.

• Manages pressure for heating systems
• SPST snap-acting switch
• Adjustable settings for optimal performance

Product Highlights

The Honeywell PA404B1023 Pressuretrol Controller features a pressure range of 20 psi with a differential range of 0.5 to 9 psi. It operates at 24/120/240/277 volts, making it versatile for various applications. This controller is ideal for suspension-type unit heaters and ensures safe operation by breaking the circuit at the set point on pressure fall.

Product Information

Standard Information

• Brand: Honeywell
• MPN: PA404B1023

Technical Specifications

• Pressure Range: 20 psi
• Differential: 0.5 - 9 psi
• Voltage: 24/120/240/277 V
• Temperature Rating: 150 degrees Fahrenheit
• Dimensions: 4-15/32 inches H x 3-3/8 inches W x 2-1/4 inches D
• Switch Type: SPST snap-acting switch
• Application: Suspension type unit heaters
• Certifications: CSA LR1620, UL MP466
• Weight: 5 pounds
