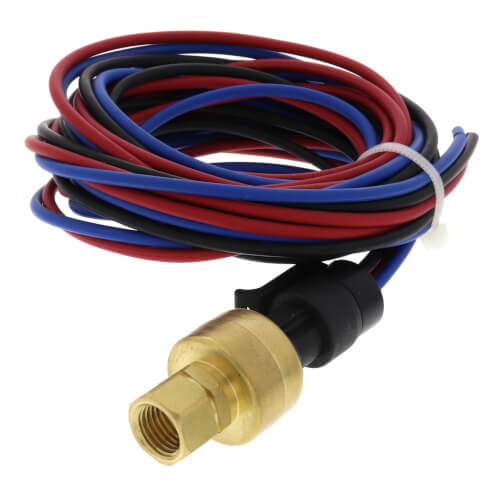

ICM Controls ICM380 Pressure Transducer 0 to 500 psi

Product Description

The ICM Controls ICM380 Pressure Transducer is a robust and reliable device designed for industrial applications. It provides accurate pressure measurements, making it ideal for monitoring and controlling various system parameters.

• Reliable and accurate pressure readings
• Durable design suitable for industrial environments
• Easy integration with existing systems

Product Highlights

The ICM380 features a Schrader fitting for secure connections, ensuring reliable performance in harsh conditions. It is optimized for use in HVAC and refrigeration systems, offering precise measurements and improving system efficiency.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM380

Technical Specifications

• Pressure Range: 0 to 500 psi
• Voltage: 4.5 to 5.5 VDC
• Output Voltage: 0.5 to 4.5 VDC
• Supply Current: 8 mA (max. @ 5.5 VDC with no load)
• Output Current: 2.5 mA (max. sink or source)
• Output Load: 10k ohms typical
• Operating Temperature Range: -40°C to +135°C
• Overvoltage Protection: 16 VDC
• Short Circuit Protection: Yes
