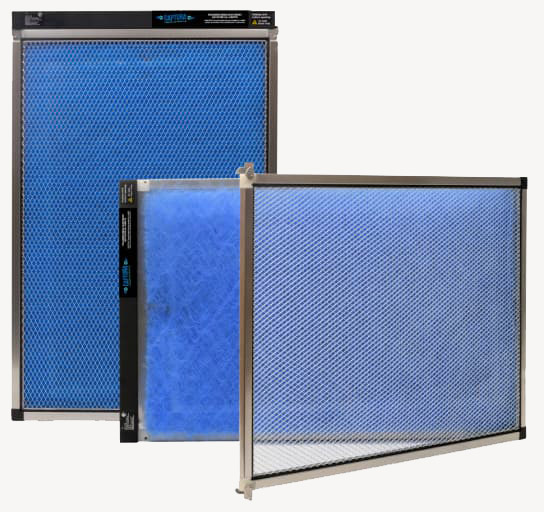

Premier One Products PP6100-20X25EX-RF Polarized Media Kit 20x25

Product Description

The PREMIER ONE PRODUCTS PP6100-20X25EX-RF is a polarized media air cleaning retrofit kit designed to upgrade existing filter housings with advanced electrostatic particle capture technology. Operating on 24 volts at just 2 watts, the system applies an electrical charge to the fiberglass media to achieve 97% efficiency at 0.3 microns, capturing fine particles including allergens, bacteria, and airborne pathogens down to 0.01 microns. Rated for 819 CFM with a low resistance of 0.14 inches water gauge at rated airflow, this kit delivers high-efficiency filtration without significantly loading the blower or increasing static pressure. Licensed HVAC technicians install this unit as part of an indoor air quality upgrade in residential or light commercial forced-air systems.

The PP6100-20X25EX-RF is sized for 20 x 25 x 1 inch nominal filter housings and mounts into existing filter rack infrastructure, eliminating the need for a new housing or major ductwork modification. The raw description notes compatibility with Honeywell and Trion filter housing models of this nominal size. A low-voltage 24-volt connection to the furnace control board powers the polarizing charge, making integration with existing systems straightforward for a qualified technician. This kit is appropriate for residential gas or electric forced-air systems where IAQ improvement is the goal without replacing the existing filter rack.

Key Features

• 97% particle capture efficiency at 0.3 microns using polarized fiberglass media
• Low 0.14 inches w.g. resistance at 819 CFM minimizes impact on system static pressure
• Connects via 24-volt low-voltage wire to the furnace control board
• Mounts into existing filter rack without housing replacement
• 2-watt power consumption for continuous polarized charge operation
• Nominal 20 x 25 x 1 inch size fits standard residential filter openings

Compatibility

Designed for installation into existing 20 x 25 x 1 inch nominal filter rack housings, particularly Honeywell and Trion filter housing models of this size. Requires a 24-volt connection at the furnace control board.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the furnace and air handler at the disconnect and thermostat before beginning work. The 24-volt low-voltage wiring connection to the furnace board must be made per the manufacturer wiring diagram included with the kit. Verify that existing filter rack dimensions match the 20 x 25 x 1 inch nominal size before ordering.

Technical Specifications

• Air Flow Capacity: 819 CFM
• Filter Efficiency: 97% at 0.3 microns
• Resistance: 0.14 inches w.g. at 819 CFM
• Voltage Rating: 24 volts
• Power Consumption: 2 watts
• Nominal Size: 20 x 25 x 1 inches
• Width: 20 inches
• Height: 25 inches
• Depth: 1 inch
• Filter Type: Polarized Media
• Media Type: Polarized Fiberglass
• Material: Fiberglass
• Mounting Type: Filter Rack Mount (Existing)
• Color: Blue

Standard Information

• Brand: PREMIER ONE PRODUCTS
• Manufacturer Part Number: PP6100-20X25EX-RF
