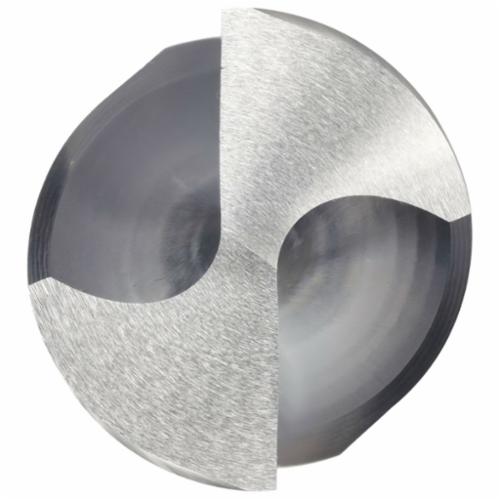

Precision Twist Drill PREDO-91461 Precision Twist Drill 5999530 R56 General Purpose Reduced Shank Drill

Product Description

The Precision Twist Drill PREDO-91461 is a general-purpose reduced shank drill designed for a range of applications. This drill has a size of sixty-one sixty-fourths of an inch in fraction and zero point nine five three one inches in decimal inch. It is suitable for use in various materials including magnetic soft steel, structural steel, plain carbon steel, alloy steel, and stainless steel.

• Overall length of six inches.
• Features a reduced shank of one-half inch.
• Constructed from high-speed steel for longevity.

Product Highlights

This drill is ideal for general use with both ferrous and non-ferrous materials. It offers a polished finish that enhances performance and cutting efficiency.

Product Information

Standard Information

• Brand: Precision Twist Drill
• MPN: PREDO-91461

Technical Specifications

• Applicable Materials: Magnetic Soft Steel, Structural Steel, Plain Carbon Steel, Alloy Steel, Tempered Steel, Free Machining Stainless Steel
• Cutting Depth: 4xD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Finish: Steam Oxide
• Flute Length: 3 in
• Flute Type: Spiral
• Flutes: 2
• Overall Length: 6 in
• Point Angle: 118 deg
• Point Type: Conventional
• Series: R56
• Shank Type: Reduced
• Drill Size - Fraction: 61/64 in
• Drill Size - Decimal Inch: 0.9531 in
• Shank Size: 1/2 in
• Material: HSS
