Precision Twist Drill PREDO-41305 M41CO Heavy Duty Short Length Drill Bit #5 Drill - Wire

Product Description

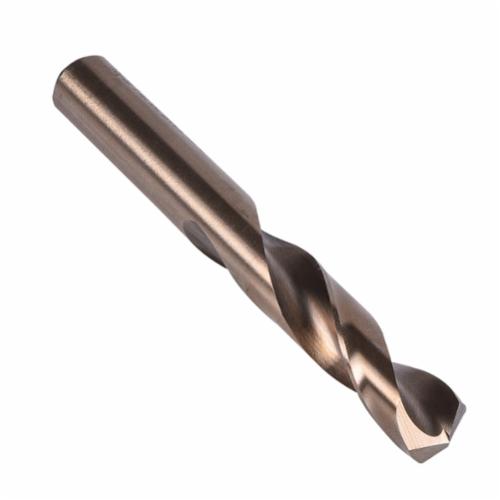

The Precision Twist Drill PREDO-41305 is a heavy-duty short length drill bit made from HSS-E material. This drill bit measures zero point two zero five five inches, designed for wire drilling applications. It features a two and three eighths inch overall length, with a cutting depth of two point five times the diameter. The drill bit includes two flutes and a spiral flute design that aids in easier chip removal.

• Designed for high precision drilling in various metal types.
• Self-centering split point for enhanced drilling accuracy.
• Right-hand cutting direction for efficient performance.

Product Highlights

Ideal for machining operations, the Precision Twist Drill is suitable for alloy steel, stainless steel, and harder materials.

Product Information

Standard Information

• Brand: Precision Twist Drill
• MPN: PREDO-41305

Technical Specifications

• Cutting Depth: 2.5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS-E
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-1/4 inches
• Flute Type: Spiral
• Number of Flutes: 2
• Overall Length: 2-3/8 inches
• Point Angle: 135 degrees
• Point Type: Split/Self-Centering
• Series: M41CO
• Shank Size: 0.205 inches
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #5
• Drill Size - Decimal Inch: 0.2055 inches
• Material: HSS-E
• Finish: Bronze
• Applicable Materials: Alloy Steel, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium
