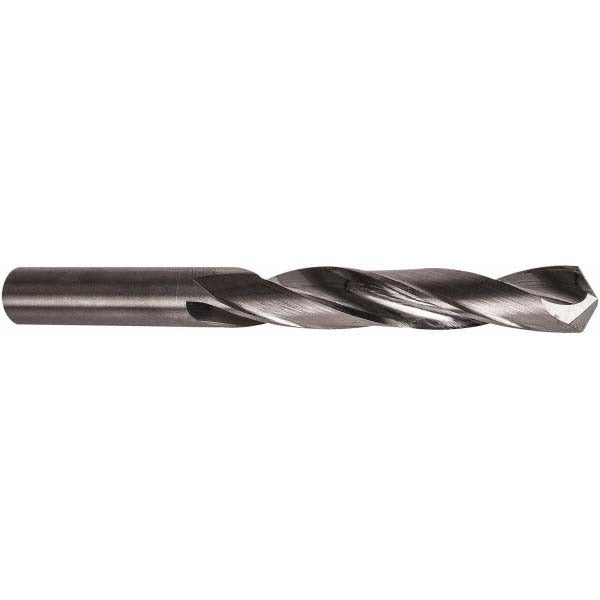

Precision Twist Drill 6002747 Drill Bit Letter F Solid Carbide

Product Description

The PRECISION TWIST DRILL 6002747 is a solid carbide jobber length drill bit sized at Letter F, equivalent to 0.2570 inches in diameter, with a standard 118-degree drill point angle. Manufactured from solid carbide throughout, this bit delivers rigidity and wear resistance needed for consistent hole quality in production and maintenance drilling. The bright, uncoated finish is retained from the grinding process and is suitable for general-purpose use. The right-hand, regular spiral flute geometry moves chips efficiently out of the bore, and the web-thinned, tapered web configuration reduces thrust at entry. HVAC, plumbing, electrical, and general mechanical tradespeople will find this bit appropriate for drilling aluminum, non-ferrous metals, and similar materials.

This drill bit is designed for jobber-length drilling applications in production shops, field service, and maintenance environments. The 3.2500-inch overall length and 2.0000-inch flute length provide sufficient reach for the majority of standard through-hole and blind-hole tasks encountered in trade work. The straight shank seats directly into standard drill chucks without an adapter. It is positioned as a general-purpose option within the Series D33F-D33W-D33L-D33M product family, covering the 0.2500 to 0.3000-inch diameter range.

Key Features

• Solid carbide construction for rigidity and extended wear life compared to high-speed steel
• 118-degree standard point angle suits a wide range of general-purpose drilling tasks
• Web-thinned, tapered web reduces drill entry thrust and minimizes walking on flat surfaces
• Regular spiral flute promotes efficient chip evacuation during through-hole and blind-hole drilling
• Bright, uncoated finish maintains as-ground carbide surface with no coating variability
• Straight shank fits standard drill chucks without adapters or collet modifications

Compatibility

Part of the Series D33F-D33W-D33L-D33M product family. Designed for use in standard drill chucks accepting a 0.2571-inch straight shank. Primary workpiece material compatibility covers aluminum and non-ferrous metals per manufacturer specification. ANSI standards compliant.

Installation Notes

Installation and use of this drill bit should be performed by qualified tradespeople familiar with rotating cutting tool safety. Secure the shank fully in the chuck and verify runout before drilling. Do not exceed the recommended maximum drilling depth of 2.0000 inches without retracting to clear chips. Use appropriate personal protective equipment including eye protection when operating drilling equipment.
