Precision Twist Drill 6002707 Jobber Drill Bit 15/32

Product Description

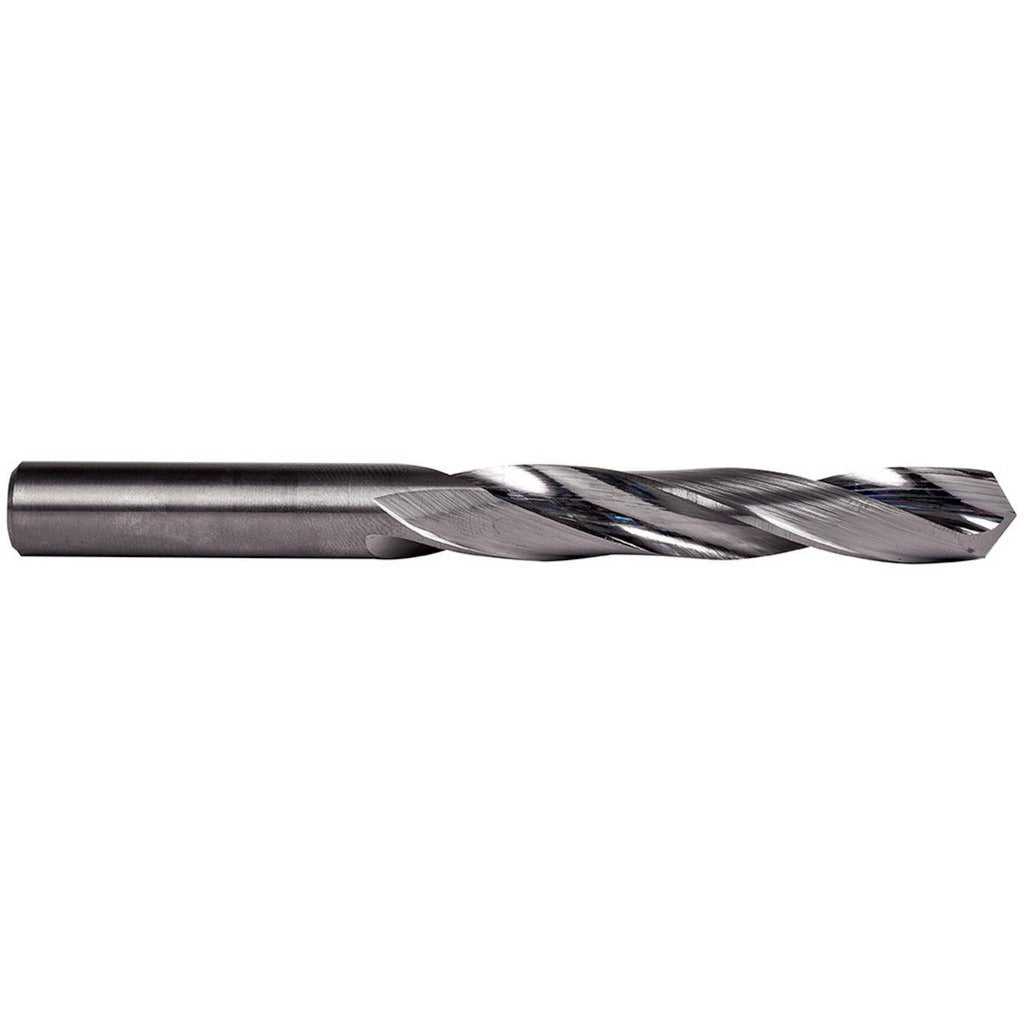

The PRECISION TWIST DRILL 6002707 is a solid carbide jobber length drill bit designed for precision drilling in aluminum, non-ferrous metals, and other demanding workpiece materials. Ground to a 118-degree standard point angle with web thinning for improved centering and reduced thrust, this bit delivers consistent, clean entry. It measures 4.75 inches overall length with a 3-inch flute length and a straight shank diameter of 0.4688 inches (15/32 inch). The bright, uncoated finish suits applications where coating interaction with workpiece material is a concern. Machinists, tool-and-die technicians, and maintenance professionals will find this bit well suited to production and general-purpose drilling tasks.

This drill bit is intended for general-purpose drilling operations in aluminum and non-ferrous materials, as well as a range of other materials indicated by ISO material codes P, M, K, N, and H. The 6xD flute-to-diameter ratio makes it appropriate for jobber-depth holes without the need for peck drilling on most setups. It is a practical fit for CNC machining centers, drill presses, and hand-held power tools where a straight shank carbide bit is specified. The two-flute, regular spiral configuration supports efficient chip evacuation in softer metals and composites.

Key Features

• Solid carbide construction for extended tool life versus high-speed steel alternatives
• 118-degree standard point angle with web-thinned, tapered web for reduced entry thrust
• Bright/uncoated finish suitable for aluminum and non-ferrous workpiece materials
• Right-hand cut, regular spiral flute with 6xD flute-by-diameter ratio
• Straight shank, 0.4688-inch diameter — compatible with standard drill chucks
• Maximum drilling depth of 3 inches; no coolant-through design

Compatibility

Designed as an OEM-compatible solid carbide jobber drill bit within the PRECISION TWIST DRILL Series D33F-D33W-D33L-D33M, suitable for use with standard drill chucks accepting a straight 15/32-inch shank.

Installation Notes

Installation and operation should be performed by qualified machinists or maintenance technicians familiar with rotating cutting tool safety. Secure the straight shank firmly in a properly sized drill chuck before operation, and verify spindle speed and feed rate are appropriate for the workpiece material and bit diameter. Carbide tooling is brittle — avoid side loading, interrupted cuts without proper setup, or dropping the bit on hard surfaces. Always wear appropriate eye protection and follow facility safety protocols when drilling.
