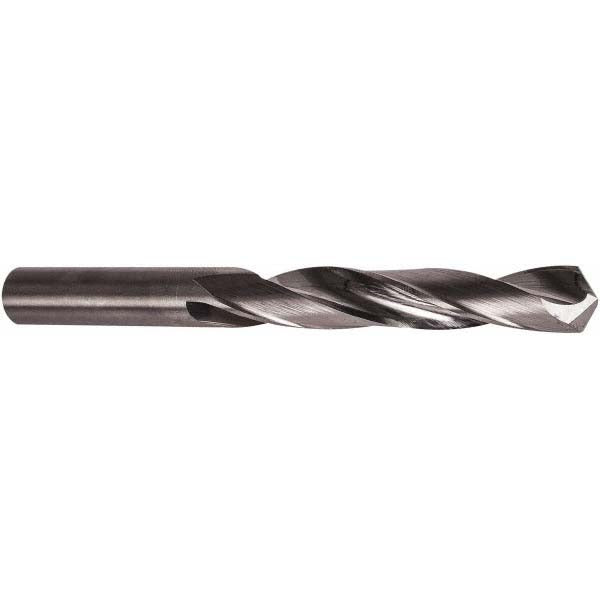

Precision Twist Drill 6002098 Jobber Drill Bit 37

Product Description

The PRECISION TWIST DRILL 6002098 is a solid carbide jobber length drill bit designed for precision drilling in a wide range of metalworking applications. Built to wire gauge size 37 with a decimal diameter of 0.1040 inches, this bit features a 118-degree standard point angle and a bright, uncoated finish. The two-flute regular spiral design delivers efficient chip evacuation, while the web-thinned, tapered web construction reduces cutting resistance at entry. With an overall length of 2.25 inches and a flute length of 1.25 inches, this bit is suited for applications requiring accuracy in tight, controlled drilling conditions. Machinists, maintenance technicians, and metalworking professionals install this bit in standard drill presses and CNC setups.

This drill bit is rated for use on steel, stainless steel, cast iron, non-ferrous metals, and hard materials, covering ISO material codes P, M, K, N, and H. The straight cylindrical shank with a diameter of 0.1040 inches fits standard drill chucks without modification. The Series D33F-D33W-D33L-D33M designation identifies this as a general-purpose jobber-length carbide bit within PRECISION TWIST DRILL's product line. It is built to ANSI standards and is suited for both production drilling and maintenance repair operations where consistent hole quality is required.

Key Features

• Wire size 37 diameter of 0.1040 inches for precise hole sizing in metalworking applications
• 118-degree standard point angle with web-thinned, tapered web for reduced entry thrust
• 2-flute regular spiral flute design promotes effective chip removal
• Bright, uncoated finish suitable for use across ferrous and non-ferrous materials
• Straight cylindrical shank at 0.1040 inches diameter for compatibility with standard chuck systems
• Built to ANSI standards for dimensional consistency and interchangeability

Compatibility

Designed for use in standard drill chucks accepting a 0.1040-inch straight cylindrical shank. Compatible workpiece materials include steel, stainless steel, cast iron, non-ferrous metals, and hard materials as identified by ISO codes P, M, K, N, and H. Part of the D33F-D33W-D33L-D33M series.

Installation Notes

Installation is performed by machinists or maintenance technicians using a compatible drill press, hand drill, or CNC machine with a chuck sized for a 0.1040-inch straight shank. Secure the bit fully in the chuck and verify runout before drilling. Ensure the workpiece is clamped or fixtured to prevent movement during operation. Follow applicable shop safety protocols and machine manufacturer guidelines when setting spindle speed and feed rate for the workpiece material.
