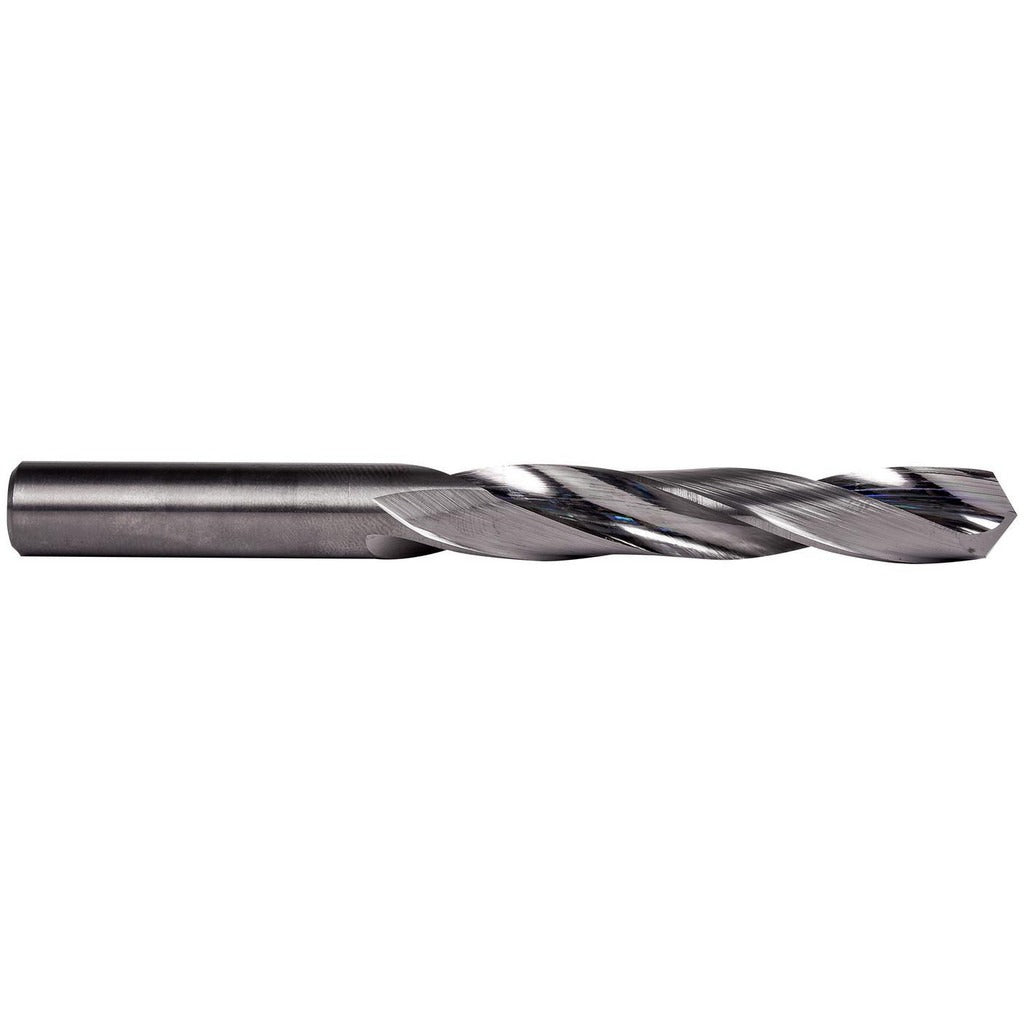

Precision Twist Drill 6002064 Jobber Drill Bit Wire 30

Product Description

The PRECISION TWIST DRILL 6002064 is a jobber-length drill bit sized to wire gauge 30 (0.1285 inches decimal equivalent) with a 118-degree standard point angle. Built from high speed steel with a bright, uncoated finish, this bit features a right-hand spiral flute, tapered web with web thinning, and a straight cylindrical shank. It is designed for general-purpose drilling across a broad range of materials including steel, stainless steel, cast iron, non-ferrous metals, and hard materials. The two-flute spiral design provides efficient chip evacuation and consistent hole quality in production and maintenance drilling applications.

This bit fits standard jobber-length drilling applications in metal fabrication, maintenance, and general machine shop work. The 2.25-inch overall length and 1.25-inch flute length suit bench drill presses, handheld drill motors, and mill setups where a compact, rigid bit is preferred for accurate hole placement in structural and sheet metal work. The Series D33F-D33W-D33L-D33M designation covers this size range within the PRECISION TWIST DRILL product family.

Key Features

• Wire gauge 30 size — 0.1285 inches decimal equivalent for precise hole sizing
• 118-degree standard point for reliable entry on steel, stainless steel, cast iron, non-ferrous, and hard materials
• High speed steel construction with bright uncoated finish
• Web-thinned tapered web reduces thrust and improves chip flow
• Right-hand cut, two-flute regular spiral with 10xD flute-to-diameter ratio
• Straight cylindrical shank fits standard drill chucks — no adapter required
• Meets ANSI standards for jobber-length drill bits

Compatibility

Part of the PRECISION TWIST DRILL Series D33F-D33W-D33L-D33M. Designed as a general-purpose OEM-style jobber-length drill bit for use with standard drill chucks accepting a 0.1285-inch straight cylindrical shank.

Installation Notes

Install and remove this bit with the drill motor or press fully powered down and the chuck key secured. Machinists and maintenance technicians should verify chuck jaw condition to prevent shank slippage on small-diameter bits. Coolant-through is not supported on this bit; apply cutting fluid externally when drilling stainless steel or hard materials to manage heat buildup. Follow shop safety protocols and applicable ANSI machine guarding standards during operation.
