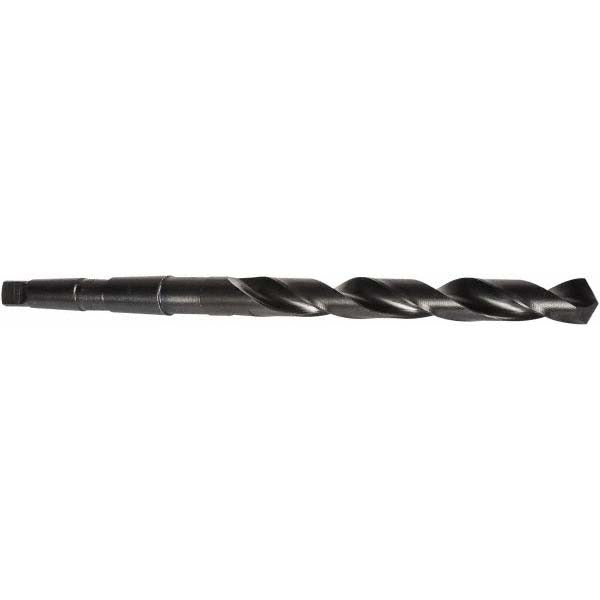

Precision Twist Drill 6001026 Taper Shank Drill Bit

Product Description

The PRECISION TWIST DRILL 6001026 is a taper shank drill bit engineered for general-purpose metal drilling in machine shop and production environments. Built from high speed steel with an oxide finish, it delivers reliable performance in ferrous and non-ferrous materials. The bit measures 0.7087 inches (18.00 mm) in diameter with a 9 inch overall length and a 5.09-inch spiral flute. The 2MT Morse taper shank seats securely in compatible drill press and lathe tailstock spindles. A 118-degree standard point angle and web-thinned tip reduce thrust and improve centering at the start of each bore. Right-hand cutting direction and regular spiral flute geometry promote efficient chip evacuation during through-hole drilling.

This drill bit is suited for use in drill presses, lathes, and milling machines equipped with a No. 2 Morse taper socket. It handles general-purpose drilling in steel, cast iron, aluminum, and similar materials. The Series 5ATS design and DIN 345 standard construction make it a practical choice for production machinists, tool room technicians, and maintenance trades requiring consistent hole quality at standard metric diameters.

Key Features

• 0.7087 inch (18.00 mm) diameter conforms to DIN 345 standard sizing
• No. 2 Morse taper (2MT) shank for positive seating in compatible spindles
• High speed steel construction with oxide finish for corrosion resistance and reduced friction
• 118-degree standard point angle with web-thinned tip for improved entry and reduced thrust
• Regular right-hand spiral flute, 5.09 inches long, promotes chip clearance
• General-purpose Series 5ATS design suitable for a wide range of ferrous and non-ferrous stock

Compatibility

Designed for use with drill presses, lathes, and machine tool spindles fitted with a No. 2 Morse taper (2MT) socket. Compatible with standard DIN 345 taper shank drill applications.

Installation Notes

Installation should be performed by a qualified machinist or tool room technician familiar with Morse taper tooling. Power down and lock out the machine before inserting or removing the shank from the spindle socket. Clean the taper shank and socket bore thoroughly before seating to ensure full contact and prevent slippage under load. Use a proper drift and dead-blow mallet to remove the bit from the spindle — never force the shank with improvised tools.
