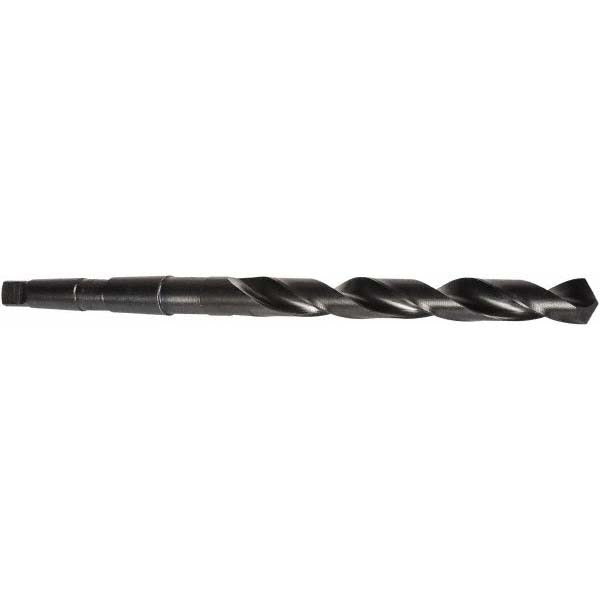

Precision Twist Drill 6001003 Taper Shank Drill Bit

Product Description

The PRECISION TWIST DRILL 6001003 is a taper shank drill bit designed for general-purpose drilling in metal, wood, and similar materials. Built from high speed steel with an oxide finish, it accepts a 1MT (Morse Taper 1) shank for use in drill presses, lathes, and milling machines equipped with a compatible taper socket. The cutting diameter is 0.125 inches (1/8 inch), the overall length is 5.125 inches, and the flute length is 1.875 inches. The 118-degree standard point angle suits a wide range of common shop and field drilling tasks. Right-hand spiral flutes clear chips efficiently during through-hole and blind-hole operations.

This drill bit is suited for machine tool setups in industrial, maintenance, and fabrication environments. The 1MT taper shank seats directly into drill press quills or lathe tailstocks with a matching Morse Taper 1 socket, eliminating the need for a separate chuck. Its general-purpose classification makes it appropriate for toolroom work, HVAC component fabrication, plumbing rough-in drilling, and electrical panel knockout drilling where a machine tool is available. The Series 209 designation and ANSI standard compliance confirm dimensional consistency for production and service shop use.

Key Features

• High speed steel construction for durability across ferrous and non-ferrous materials
• Oxide finish for basic corrosion resistance and reduced friction at the cutting edge
• 1MT Morse Taper shank seats directly in compatible drill press quills and lathe tailstocks
• 118-degree standard point angle for general-purpose drilling without special grinding
• Web-thinned design reduces thrust requirements at the drill point
• Right-hand cut with regular spiral flutes for efficient chip evacuation

Compatibility

Designed for use in any drill press, lathe tailstock, or milling machine spindle fitted with a Morse Taper 1 socket. Meets ANSI dimensional standards for taper shank drill bits.

Installation Notes

Installation is performed by machinists or trade professionals using a machine tool with a Morse Taper 1 receiver. Power down and lock out the machine before seating or removing the taper shank. Insert the shank firmly into the quill or tailstock socket by hand or with a soft mallet to ensure full taper engagement. Use a drift key through the machine spindle slot to release the bit safely after use.
