Precision Twist Drill 6000409 Cobalt Drill Bit 35/64

Product Description

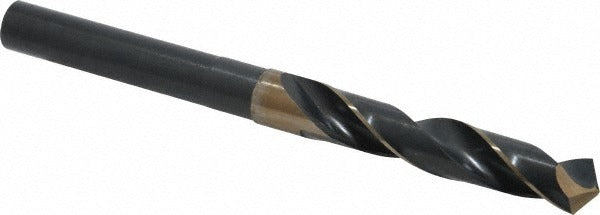

The PRECISION TWIST DRILL 6000409 is a reduced shank cobalt twist drill bit designed for production and maintenance drilling in ferrous metals, aluminum, titanium, nickel alloys, and other demanding materials. The bit measures 35/64 inch (0.5469 inches decimal) in cutting diameter with a 1/2 inch straight-cylindrical shank, allowing use in standard 1/2 inch chucks even though the cutting diameter is slightly larger. Overall length is 6 inches with a 3 inch flute length. The 118-degree split point reduces walking on entry and lowers thrust requirements. Cobalt construction provides heat resistance for hard material drilling without a separate coating.

This bit is suited for shop and field work involving ferrous metals as the primary workpiece material. Secondary applications include aluminum, copper, magnesium, nickel, titanium, cermet, and synthetic materials. The right-hand spiral flute with regular helix evacuates chips efficiently in through-hole and deep drilling applications up to 3 inches depth. It is a practical choice for machinists, industrial maintenance technicians, and metalworking trades requiring a larger-diameter drill that runs in a standard 1/2 inch chuck without a separate adapter.

Key Features

• Cobalt tool material for heat resistance in hard and abrasive metals
• 118-degree split point reduces walking and lowers feed force on entry
• Reduced shank design: 35/64 inch cutting diameter on a 1/2 inch shank
• 3 inch flute length supports drilling depths up to 3 inches
• Right-hand cut, regular spiral flute for efficient chip evacuation
• Bright/uncoated finish — no coating buildup to affect tolerances
• Meets ANSI standards

Compatibility

Designed as an OEM-style reduced shank drill bit in the PRECISION TWIST DRILL Series R56CO, compatible with any standard 1/2 inch chuck or collet holder.

Installation Notes

Installation is performed by machinists or metalworking technicians using a drill press, milling machine, or hand drill with a 1/2 inch chuck. Secure the shank fully in the chuck before applying feed pressure. Confirm workpiece is clamped before drilling. Follow shop safety practices including eye protection and chip guards when drilling metal; observe applicable ANSI B11 machine safety standards.
