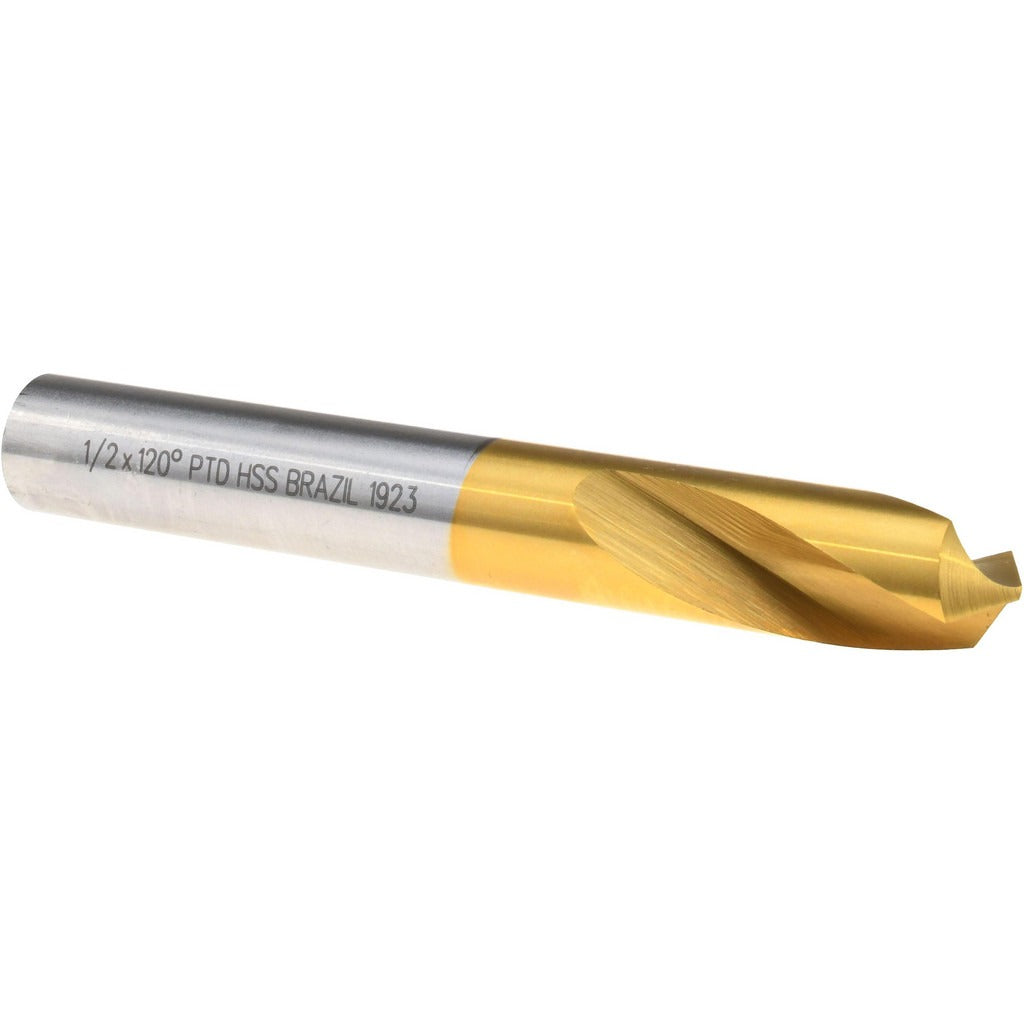

Precision Twist Drill 6000110 Spotting Drill 1/2 in

Product Description

The PRECISION TWIST DRILL 6000110 is a TiN-coated high-speed steel spotting drill designed to create accurate center points and countersinks before full-depth drilling operations. The 120-degree point angle suits a wide range of standard drilling applications and helps prevent walk-on entry into workpieces. At 0.5 inches in diameter with a 3.75-inch overall length and a 1.375-inch spiral flute length, this tool fits standard drill chucks and CNC toolholders with a 0.5-inch straight cylindrical shank. The titanium nitride coating extends tool life and reduces friction during cutting. This is a single-ended, right-hand-cut tool intended for general-purpose metal fabrication and machining environments.

This spotting drill is suited for machine shops, maintenance facilities, and production environments where precise hole location is required before drilling, countersinking, or tapping. It performs in manual drill presses and CNC machining centers alike. The two-flute spiral design clears chips efficiently during short spotting passes. Applications include spotting pilot points in ferrous and non-ferrous metals, plastics, and similar materials where accurate hole registration is critical.

Key Features

• 120-degree point angle for general-purpose spotting and center-starting
• Titanium nitride (TiN) coating for extended tool life and reduced cutting friction
• High-speed steel construction handles standard machining feeds and speeds
• Two-flute spiral design promotes chip evacuation during spotting passes
• Straight cylindrical shank fits standard drill chucks and collets
• Right-hand cut, single-ended configuration for conventional machine spindle use

Compatibility

Designed as a general-purpose spotting drill compatible with any drill press, mill, or CNC machining center that accepts a 0.5-inch straight cylindrical shank toolholder or collet chuck.

Installation Notes

Installation and use should be performed by a qualified machinist or tooling technician familiar with cutting tool setup. Power down and de-energize the machine spindle completely before installing or removing this tool from the toolholder. Secure the shank fully within the chuck or collet to the manufacturer-recommended engagement depth before operation. Inspect the cutting edges and TiN coating for chips or damage before each use and replace if wear is detected.
