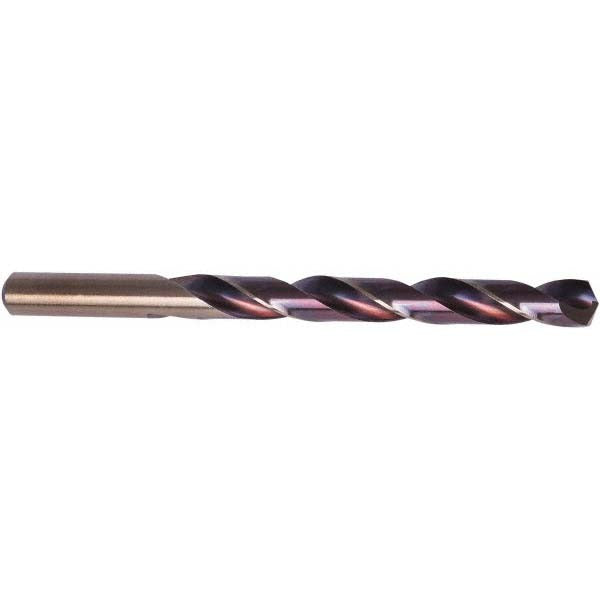

Precision Twist Drill 5996274 3/32 Inch Hss Jobber Drill Bit

Product Description

The PRECISION TWIST DRILL 5996274 is a high speed steel jobber-length drill bit designed for general-purpose drilling in ferrous metals including steel, stainless steel, cast iron, superalloys, and titanium. The bit measures 3/32 inch (0.0938 inches) in diameter with a 135-degree split-point geometry and a web-thinned construction that reduces walking and decreases the thrust required to start a hole. A bronze coating provides lubricity and added surface hardness for extended service life. With an overall length of 2.25 inches and a 1.25-inch spiral flute, this bit fits standard drill chucks and is suited for use by machinists, HVAC technicians, plumbers, and electricians working in tight access areas.

This bit is part of the Series HX10-HX15-HX18 and is sized for light drilling work in metal fabrication and trade service applications. The 3/32-inch diameter makes it well-suited for pilot holes, sheet metal work, and close-tolerance drilling tasks where smaller-diameter entry points are required. The straight-cylindrical shank accepts standard three-jaw drill chucks on corded or cordless drills. Primary workpiece materials rated for this bit include steel, stainless steel, cast iron, superalloys, and titanium per the manufacturer specifications.

Key Features

• 135-degree split-point angle with web-thinned geometry for self-centering starts and reduced thrust
• High speed steel construction rated for steel, stainless steel, cast iron, and titanium workpieces
• Bronze coating for improved lubricity and surface hardness
• Regular spiral flute with tapered web configuration for consistent chip evacuation
• Straight-cylindrical shank fits standard 3-jaw drill chucks without adapters
• ANSI specification compliance for dimensional consistency

Compatibility

Part of the PRECISION TWIST DRILL Series HX10-HX15-HX18. Designed for use in standard drill chucks accepting a 3/32-inch straight-cylindrical shank. Rated for drilling steel, stainless steel, cast iron, superalloys, and titanium per manufacturer material codes P, M, K, and S.

Installation Notes

Install the bit securely in a properly sized drill chuck and tighten all chuck jaws evenly before use. Power down and unplug or de-energize the drill before changing bits. Use appropriate cutting fluid or lubrication when drilling stainless steel, superalloys, or titanium to manage heat buildup and extend bit life. Wear appropriate eye protection and secure the workpiece before drilling.
