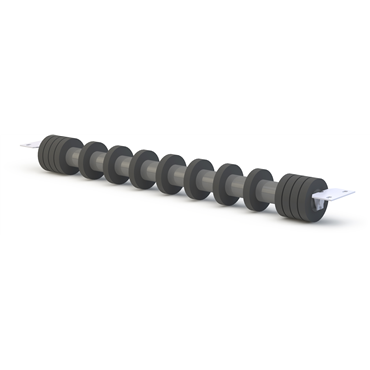

Precision Pulley & Idler B4-RRD-36SB CEMA B Return Rubber Disc Idler

Product Description

The Precision Pulley & Idler B4-RRD-36SB is a CEMA B rated return rubber disc idler designed for material handling applications. It works effectively for conveyor systems handling various materials. This idler has a robust construction for longevity.

• 36 inches belt width
• 4 inches roller diameter
• Idler type: Return rubber disc

Product Highlights

This idler meets CEMA standards for dimensions and load ratings. It features high-quality sealed ball bearings for maintenance-free operation.

Product Information

Standard Information

• Brand: Precision Pulley & Idler
• Part Number: B4-RRD-36SB

Technical Specifications

• Weight: 33.0 lbs
• Belt Width: 36 inches
• CEMA Class: CEMA Class B - Light Duty
• Idler Type: Return Rubber Disc
• Roller Diameter: 4 inches
• Roller Length: 38.25 inches
• Overall Length: 47 inches
• Overall Width: 8 inches
• Bolt Hole Spacing - Width: 4 inches
• Bolt Hole Spacing - Length: 45 inches
• Base to Center Height of Shaft: 4.5 inches
• Roller Disc Width: 5 inches
