Precision Multiple Controls P-2275 PHOTOCNTRL 120VAC (EACH)

Product Description

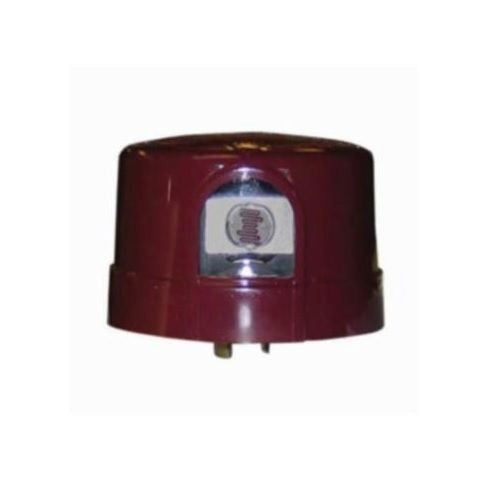

The Precision Multiple Controls P-2275 is a thermal photo control designed for delayed response applications. It operates at one hundred twenty volts with a ballast load capability of one thousand eight hundred VA. The product features a turn lock mount and is made from UV stabilized polypropylene. This component is suitable for utility grade applications, providing reliable performance in various lighting conditions.

• Delayed response utility grade
• 320 J MOV arrester for surge protection
• Operates in temperatures ranging from -40 to 170 degrees Fahrenheit

Product Highlights

This photo control includes a built-in time-delay feature to prevent unwanted cycling caused by transient light sources, such as lightning or passing headlights.

Product Information

Standard Information

• Brand: Precision Multiple Controls
• Part Number: P-2275

Technical Specifications

• Arrester: 320 J MOV
• Ballast Load: 1800 VA
• Contact Form: SPST
• Dimensions: 3.07 in Dia x 2.15 in H
• Environmental Conditions: -40 to 170 degrees Fahrenheit
• Material: UV Stabilized Polypropylene
• Mounting Type: Turn Lock
• Operating Cycles: 5000
• Sensitivity: 1 to 3 FC (ON)
• Sensor Type: Cadmium Sulfide Light Sensitive Element
• Series: P Series
• Timing Range: 15 seconds
• Voltage Rating: 120 VAC
