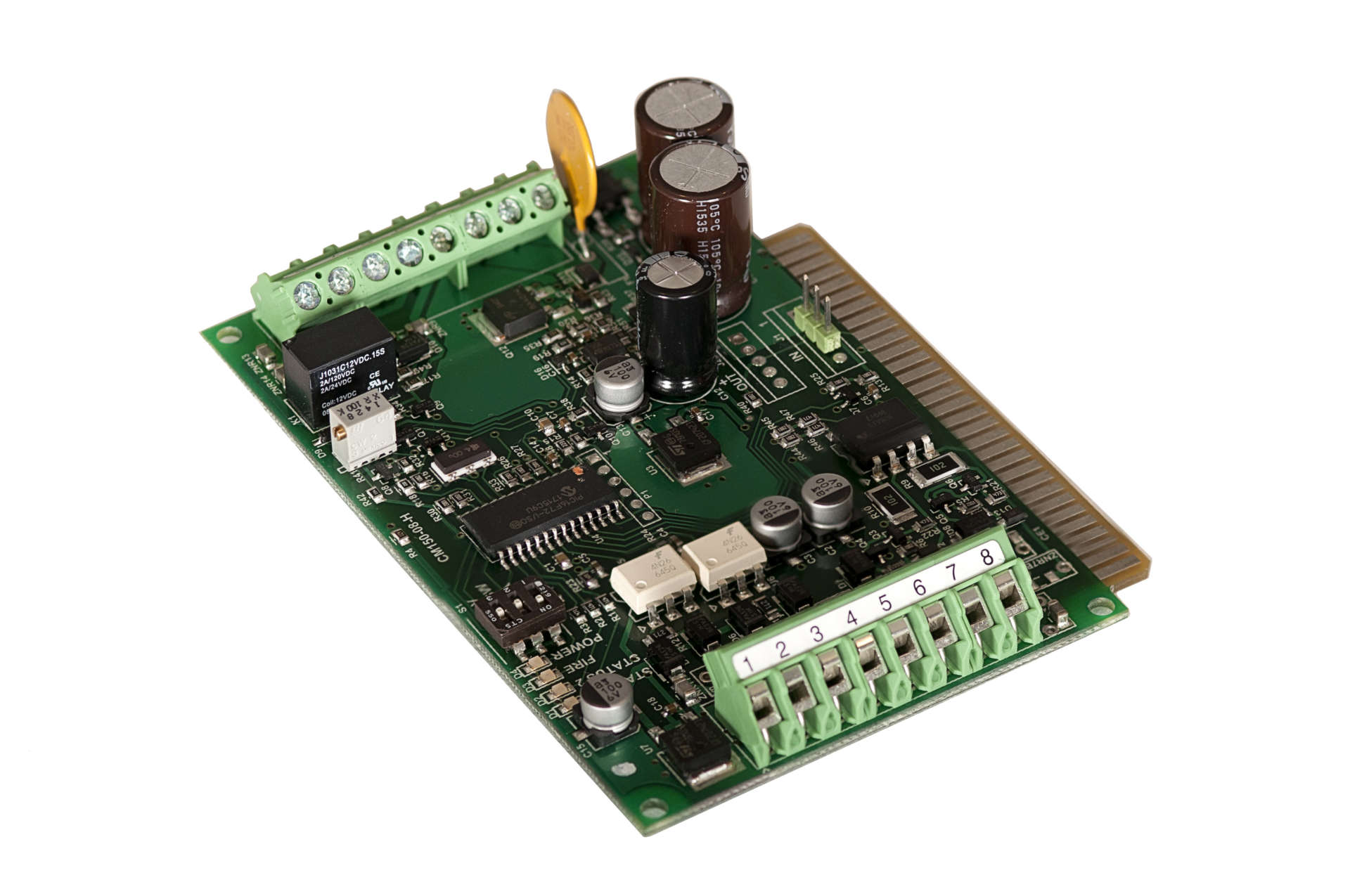

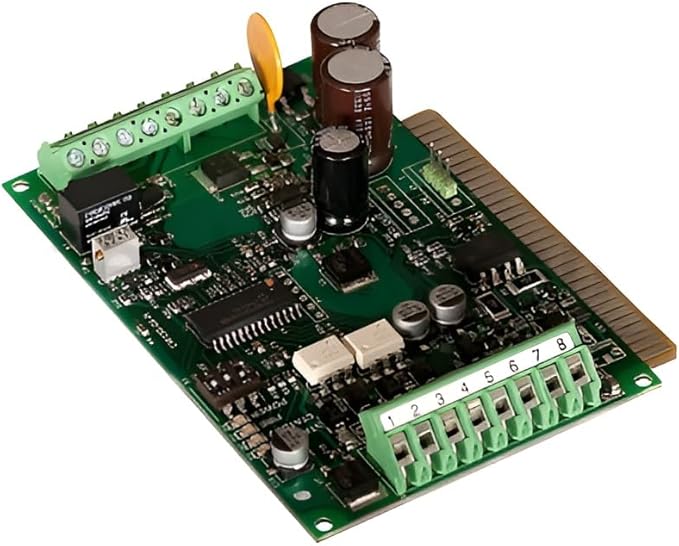

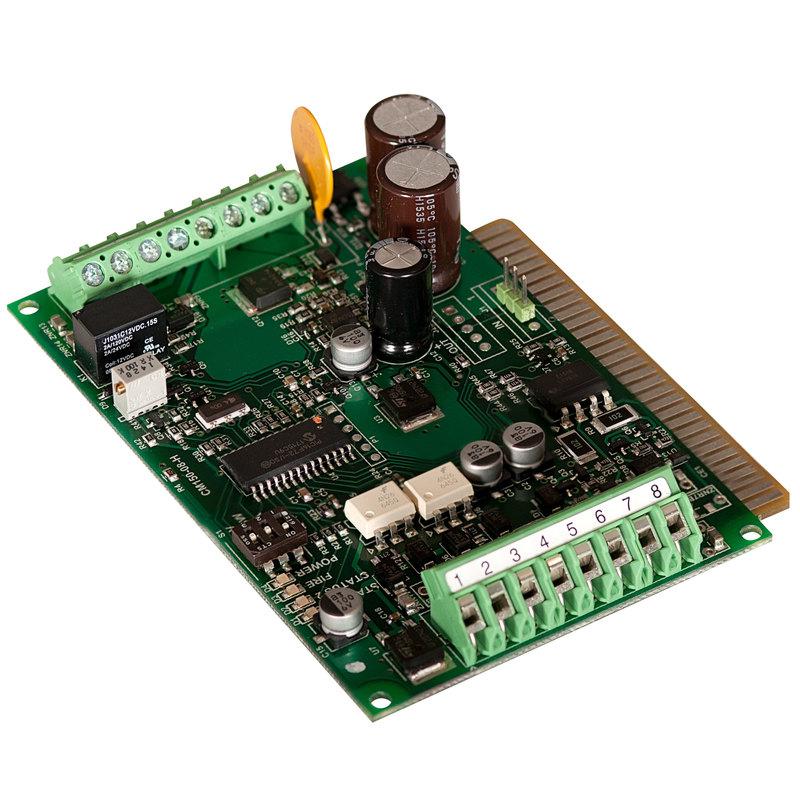

Precision Hardware CM150-08 Control Module Electric Latch Retraction

Product Description

The Precision Hardware CM150-08 Control Module facilitates electric latch retraction for exit devices. This control module offers a user-selectable delay ranging from zero to four minutes after the input is removed. A vital feature includes a fire alarm terminal with a red LED indicator that blinks to signal any interruptions in the circuit due to fire alarms.

• User selectable 0-4 minute delay after input removal
• Integrated fire alarm terminal with LED indicator
• Compatible with normally closed contacts or voltage from fire detecting devices

Product Highlights

This control module is essential for incorporating electric latch retraction in security systems, providing reliable operation in emergency scenarios.

Product Information

Standard Information

• Part Number: CM150-08
• Item Model Number: CM150-08

Technical Specifications

• Power Source: DC
• Voltage: 24 Volts, 5 Volts
• Item Package Quantity: 1
• Batteries Included: No
• Batteries Required: No
• Input Voltage: 5-24 VDC or VAC
• Input Current: 0.005 Amp
• Minimum Pulse Width: 0.25 seconds
• Current Pulse: 4.75 Amp
