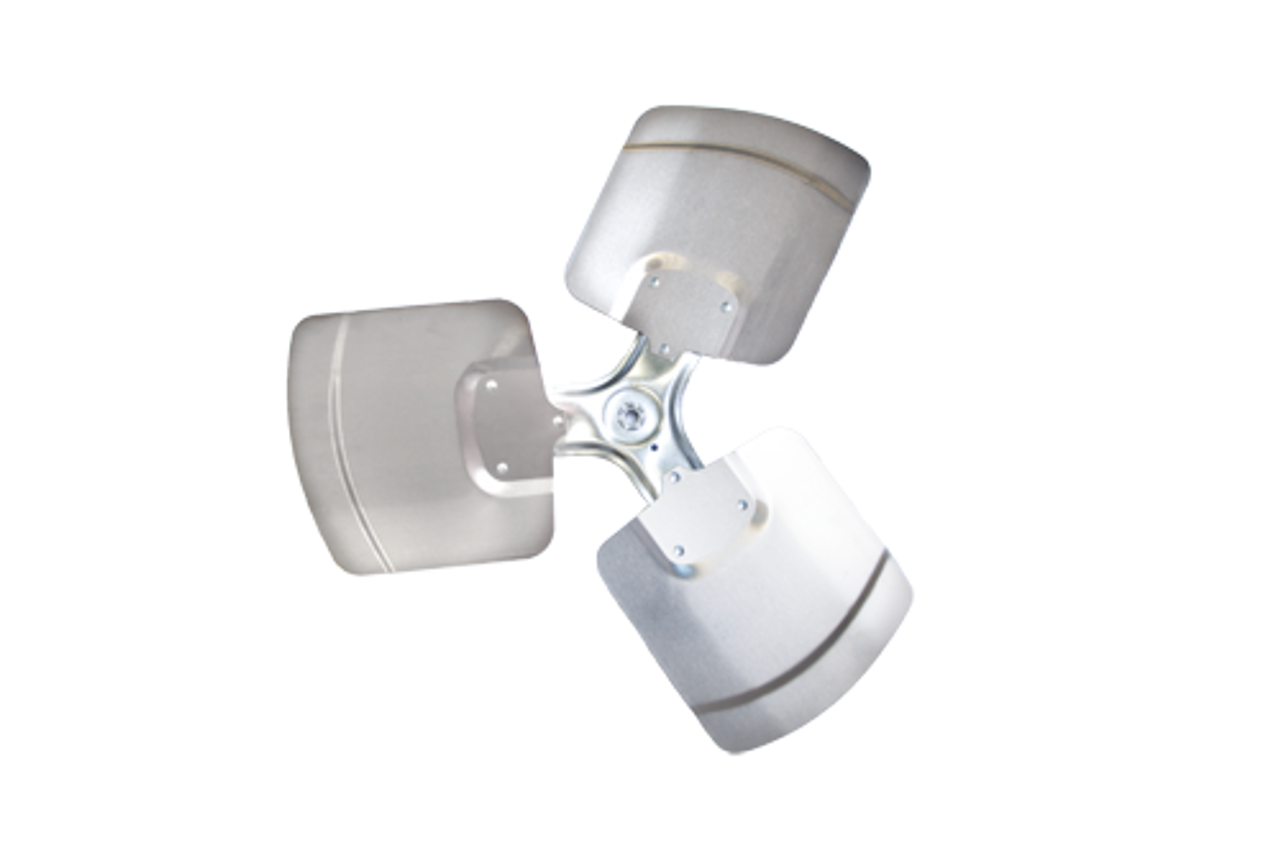

Precision Electric Motor Sales T2003-28RA-PAL 20", 3 BLADE, 28 DEGREE, 1/2" BORE, CW, AXIAL FAN

Product Description

The Precision Electric Motor Sales T2003-28RA-PAL is a 20-inch axial fan blade designed for HVAC condenser and air-moving applications. Built with a 3-blade configuration and 28-degree pitch, it delivers efficient airflow and reliable performance in demanding environments such as rooftop units, heat pumps, and unit heaters. This fan blade features a 1/2 inch bore and clockwise rotation, making it a direct-fit replacement for multiple OEM models across major HVAC brands.

Product Highlights

• 20 inch diameter for high airflow capacity

• 3 blade design for balanced performance and efficiency

• 28 degree pitch improves air movement and system cooling

• Clockwise rotation when viewed from shaft end

• 1/2 inch bore for standard motor shaft compatibility

• Durable metal construction with riveted blade assembly

• Suitable for condensers, heat pumps, and air handling units

• Cross-compatible with several OEM and aftermarket part numbers

Technical Specifications

• Brand: Precision Electric Motor Sales

• MPN: T2003-28RA-PAL

• Product Type: Axial Fan Blade

• Diameter: 20 inches

• Number of Blades: 3

• Blade Pitch: 28 degrees

• Bore Size: 1/2 inch

• Rotation: Clockwise (CW)
