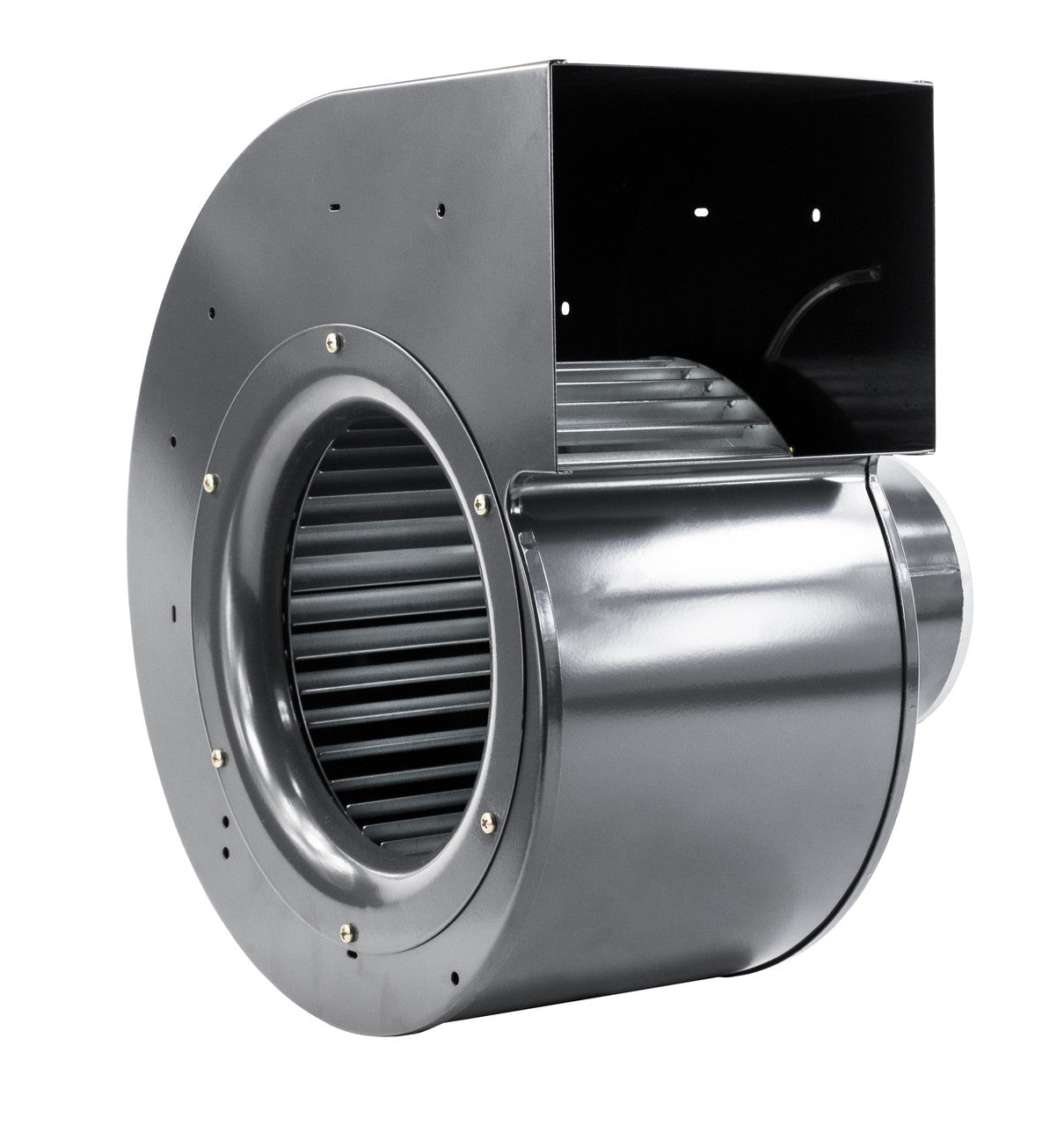

Precision Electric Motor Sales PTDU1 Dayton Direct Replacement Blower

Product Description

The Precision Electric Motor Sales PTDU1 is a direct replacement blower designed for HVAC applications. This unit is an aftermarket solution to replace discontinued Dayton models including 1TDU1, 1TDU1A, and 4C830. The blower uses a one-quarter horsepower motor to provide a maximum airflow of nine hundred ninety cubic feet per minute (CFM).

• Compatible with all mounting positions.
• Includes automatic overload protection for safety.
• Constructed with durable painted steel housing.

Product Highlights

This blower is suitable for air circulation, discharging, and ventilation in various systems.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: PTDU1

Technical Specifications

• Max Airflow: 990 CFM
• Horsepower: 1/4hp
• RPM: 1050
• Voltage: 115/230 Volts
• Amps: 3.6/1.8
• Frequency: 60/50hz
• Mounting: All Position
• Bearings: Ball Bearings
• Max Inlet Temperature: 104F
• Outlet Flange Bolt Hole Dimension: 7.25 x 5.75 inches
• Overload Protection: Automatic
• Approvals: cULus Approved
• Housing Material: Painted Steel
• Insulation Class: B
• Motor Type: PSC Motor
• Included Components: Conduit Box
• Reversibility: Non Reversible
• Speed Control Compatibility: Not recommended
• Power Cord/Switch: None
