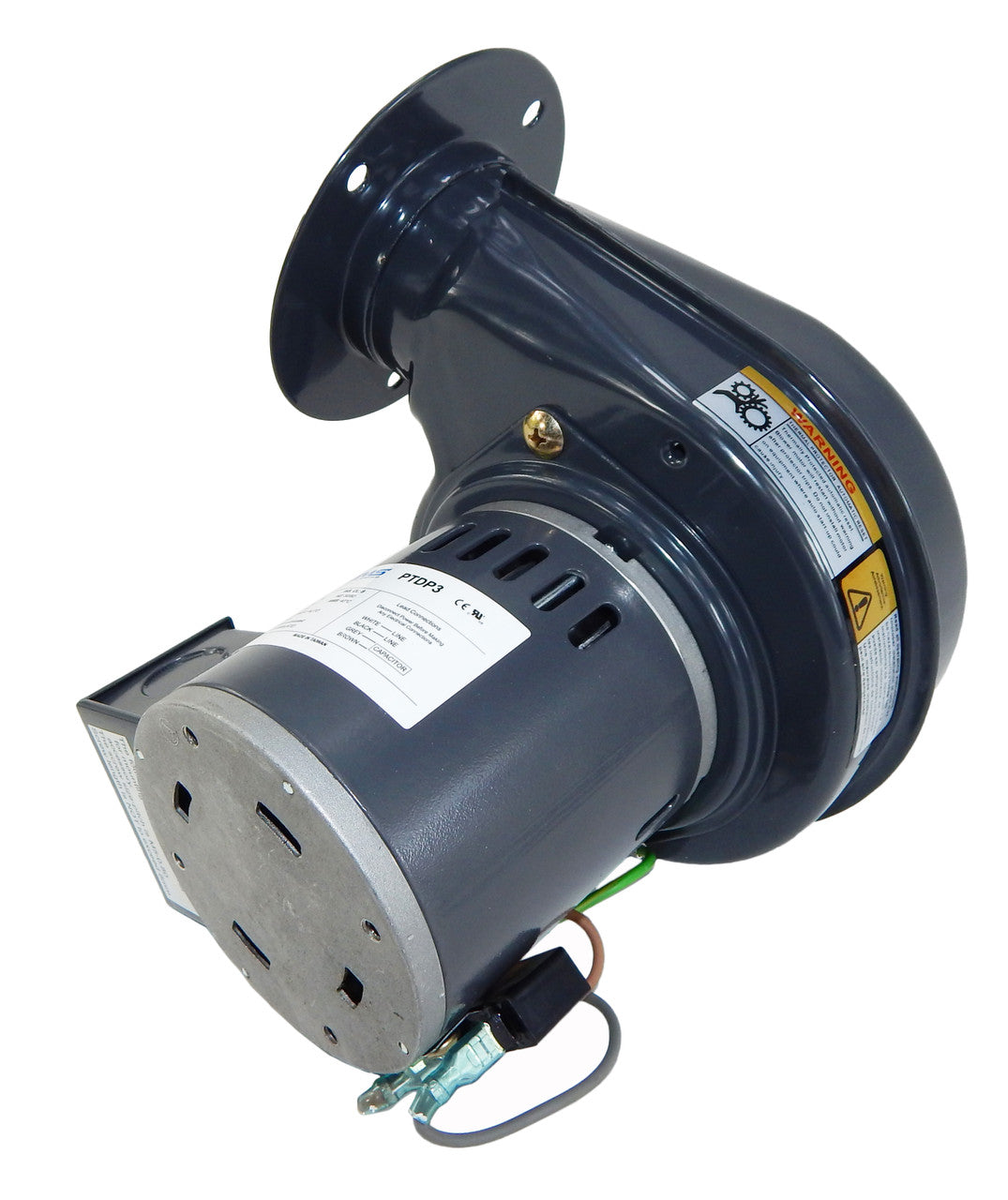

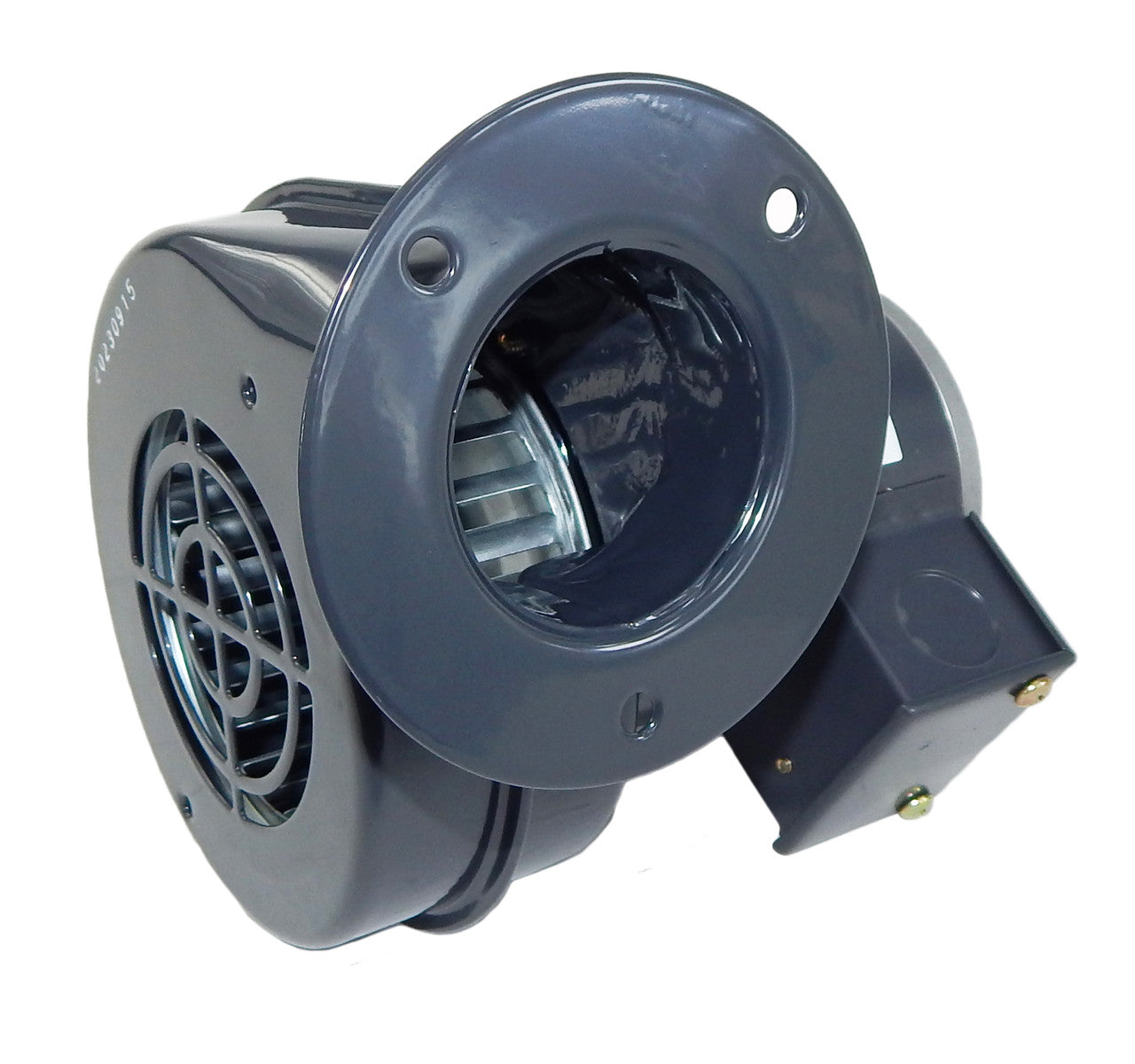

PRECISION ELECTRIC MOTOR SALES PTDP3 Blower

Product Description

The PRECISION ELECTRIC MOTOR SALES PTDP3 Blower is designed as a direct aftermarket replacement for Dayton models 1TDP3 and 4C443. This blower features a PSC motor and painted steel housing, ensuring durability and reliability. Designed for all-position mounting, it also includes a conduit box for easy installation.

Maximum airflow is 75 CFM, achieved at 3020 RPM. The blower operates at 115 Volts with a frequency of 60/50 Hz. It includes automatic overload protection and is cULus approved for safety.

• Direct aftermarket replacement for Dayton 1TDP3 and 4C443 models.
• All-position mounting with painted steel housing.
• Maximum inlet temperature of 104F.

Product Highlights

This blower provides optimal performance and is suitable for a range of HVAC applications.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: PTDP3

Technical Specifications

• Max Airflow: 75 CFM
• RPM: 3020
• Current: 0.45 amps
• Input Voltage: 115 Volts
• Frequency: 60/50 Hz
• Mounting Type: All Position
• Bearings: Ball Bearings
• Max Inlet Temperature: 104F
• Round Outlet Flange Diameter: 4 inches
• Housing Material: Painted Steel
• Insulation Class: B
• Motor Type: PSC
