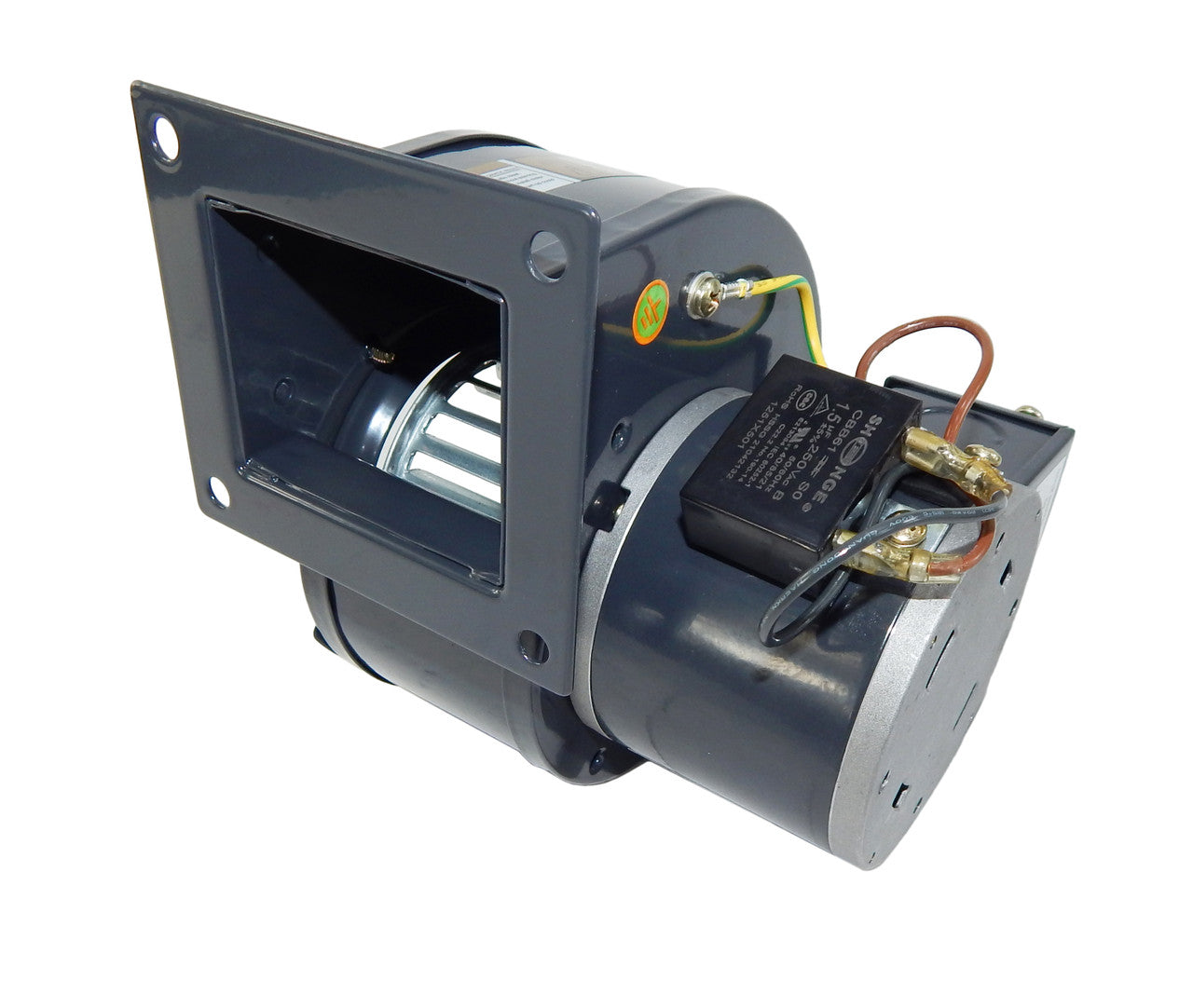

Precision Electric Motor Sales PTDP1 Centrifugal Blower 1/100 HP 115 VOLT

Product Description

The Precision Electric Motor Sales PTDP1 is a centrifugal blower designed for applications like fireplaces and pellet stoves. It operates at 115 volts and features a 1/100 HP PSC motor. This blower delivers an airflow of eighty-nine cubic feet per minute (CFM) with a rotational speed of three thousand twenty RPM. Key features include automatic overload protection and cULus approval, ensuring safe operation.

• Operates on 115 volts with a 1/100 HP PSC motor.
• Provides eighty-nine CFM airflow at three thousand twenty RPM, ideal for fireplace and pellet stove use.
• Equipped with automatic overload protection and ball bearings.

Product Highlights

Product Information

Standard Information

• Voltage: 115 VOLTS
• Motor Type: PSC Motor

Technical Specifications

• HP: 1/100 HP
• Amps: 0.31 AMPS
• RPM: 3020 RPM
• Overload Protection: Automatic
• Insulation Class: Class B
• Max Inlet Temperature: 104°F
• Bearings: Ball Bearing
• CFM (Airflow): 89 CFM
• Mounting: All Position
• Capacitor: Included
• cULus Approved: Yes
• Conduit Box: Included
• Reversibility: Non Reversible
• Outlet Flange Bolt Hole Dimension: three and three-eighths by two and seven-eighths inches
• Housing Material: Painted Steel
