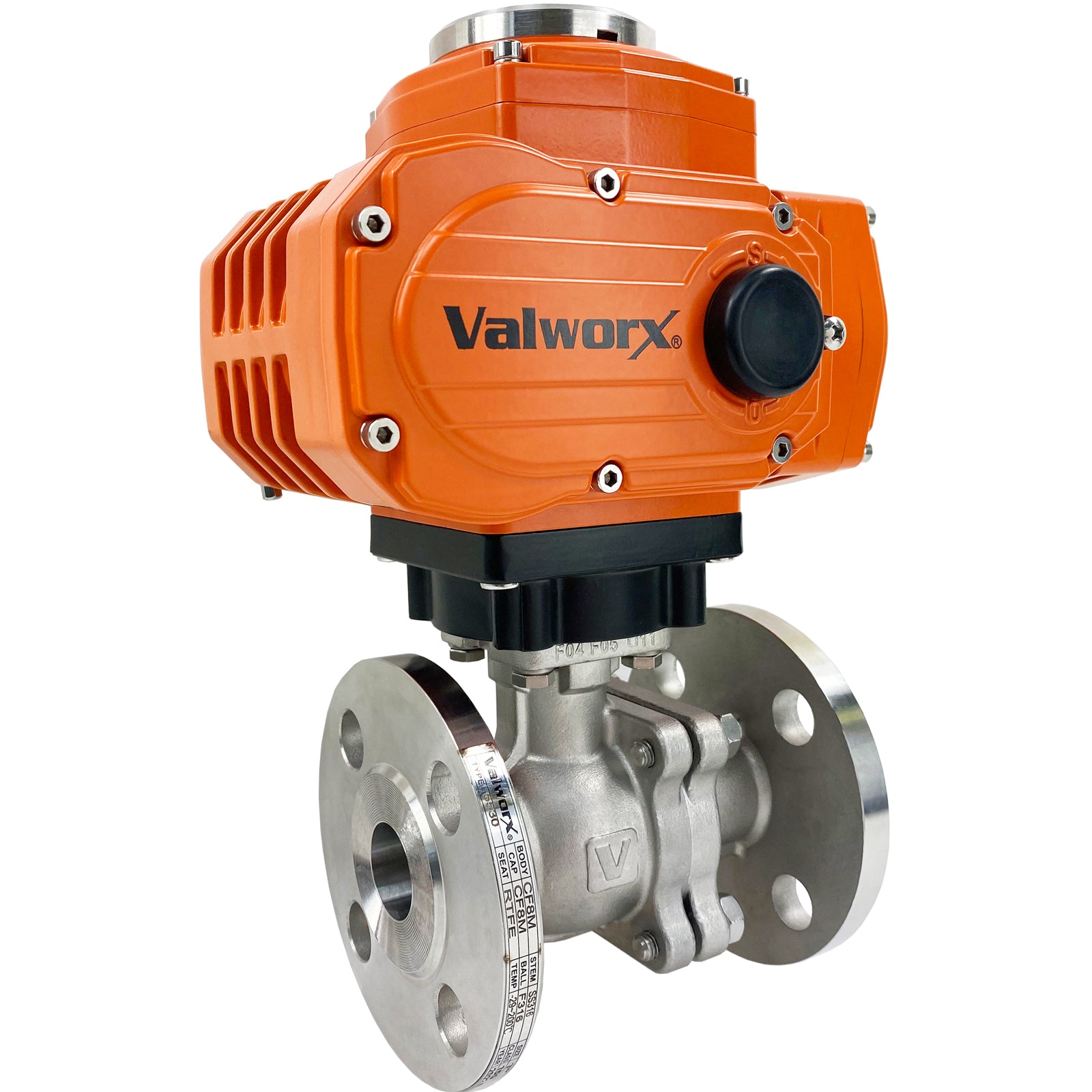

Precision Electric Motor Sales 5861 Explosion Proof 150# Flanged SS Ball Valve 24 VDC

Product Description

The Precision Electric Motor Sales 5861 is an explosion-proof ball valve designed for on/off control in various industrial applications. This valve features a robust construction with a stainless steel body, ensuring durability and longevity. It operates on 24 VDC with a power-to-open and power-to-close actuator, maintaining the last known position during power loss.

• Constructed with 316 stainless steel for corrosion resistance.
• Equipped with RTFE ball seats to enhance cycle life.
• Complies with explosion-proof standards for safe operation in hazardous environments.

Product Highlights

This valve is ideal for controlling fluid flow in settings where explosion risks exist. The sturdy design and reliable electric actuation make it suitable for various applications.

Product Information

Standard Information

• Type: Explosion Proof Electric Actuated Flange Valve- On/Off
• Voltage: 24 VDC

Technical Specifications

• Current Rating: 1.8A (full load amps)
• Cycle Time: 20 seconds per 90-degree rotation (no load)
• Pipe Size: 1.5 inches ANSI 150# flanged
• Port Size: Full Port, orifice 1.50 inches, Cv 60
• Pressure (Max): 275 PSI, vacuum up to 29.91 InHg
• Valve Temperature Range: -4 to +392 °F
• Actuator Temperature Range: -13 to 131 °F
• Valve Body: 316 stainless steel
• Ball: 316 stainless steel
• Stem Seals: Braided Graphite/ FKM (Viton)
• Ball Seats: RTFE (reinforced Teflon)
• Duty Cycle: 70%
• Enclosure: Aluminum alloy, polyester painted, SS fasteners
• Enclosure Rating: Type 4X (IP67) weatherproof
• Electrical Connections: Two 1/2 inch NPT threaded ports
• Valve Position Confirmation: 2 x SPST auxiliary limit switches rated 3A@121/210VAC
• Manual Override: 5mm Hex Drive with protective cover
• Motor Protection: Thermal overload
• Anti-Condensation Heater: 4 watts thermostatically controlled
• Low Emission: API 641
• Fire Safe: API 607
• Pipeline Use: API 608
• Stem Packing: API 622
• Flange Face to Face: ANSI B16.10 Class 150
• Explosion Proof: UL Class I Div I Groups C & D
• Max Fluid Velocity: 10 feet per second
