Precision Electric Motor Sales 56344 Hvac Motor

Product Description

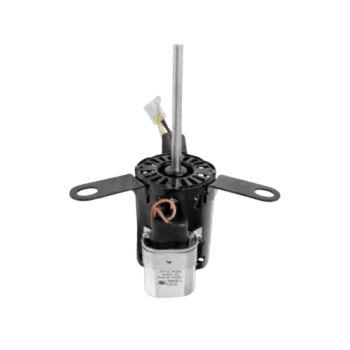

The PRECISION ELECTRIC MOTOR SALES 56344 is a single-shaft electric motor designed for HVAC applications. It operates on 115 volts and offers dual-speed performance at 1050 and 1550 RPM, making it suitable for fan and blower assemblies where variable airflow is required. Rated at 8/100 horsepower, this motor delivers consistent, smooth output in a compact form factor. Licensed HVAC technicians and mechanical contractors typically specify this motor as a direct replacement in residential and light commercial air-handling equipment where reliable single-shaft drive performance is essential.

This motor is intended for use in HVAC fan and blower applications, including evaporator fan assemblies, condenser fan assemblies, and indoor air handler units. Its dual-speed capability allows it to serve systems that require staged or two-speed airflow control. The 115-volt operating voltage makes it compatible with standard single-phase residential and light commercial power supply configurations. It is well-suited for replacement installations in existing equipment where the original motor shares the same voltage, speed, and horsepower ratings.

Key Features

• Dual-speed operation at 1050 and 1550 RPM for staged airflow control
• 115-volt single-phase input compatible with standard residential and light commercial power
• 8/100 HP rating suitable for fan and blower drive applications
• Single-shaft design simplifies mounting and direct-drive installation
• Compact form factor suited for retrofit and replacement in existing HVAC equipment

Compatibility

Designed as an OEM-style replacement motor for residential and light commercial HVAC fan and blower assemblies requiring a 115-volt, dual-speed, single-shaft motor at 8/100 HP.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified electrician. Disconnect and lock out all electrical power to the unit before removing the existing motor or making any wiring connections. Verify that the replacement motor shaft diameter, mount type, and rotation direction match the original equipment requirements before completing installation. Follow applicable NEC guidelines for motor branch circuit wiring and overcurrent protection.

Technical Specifications

• Voltage: 115 volts
• Horsepower: 8/100 HP
• Speed: 1050/1550 RPM
• Shaft Configuration: Single-shaft

Standard Information

• Brand: PRECISION ELECTRIC MOTOR SALES
• Manufacturer Part Number: 56344
