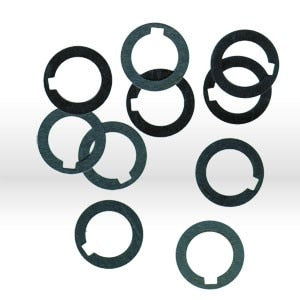

Precision Brand 24127 Arbor Spacers 0.006x0.5x0.75 in 10-pack

Product Description

The PRECISION BRAND 24127 is a pack of 10 precision arbor spacers designed for use on arbors, shafts, and spindles where tight dimensional tolerances are required. Each spacer measures 0.006 inches thick with a 0.5-inch inner diameter and a 0.75-inch outer diameter. These spacers are used to set axial position, take up end play, or establish precise spacing between components on rotating assemblies. The pack-of-10 format supports toolroom and shop floor applications where multiple setups or adjustments are performed in sequence.

Arbor spacers of this type are commonly used in machining, grinding, and fabrication environments to fine-tune tool or blade positioning on arbors and mandrels. They are well-suited for applications where incremental thickness adjustments are needed to achieve correct stack height or component alignment. Maintenance technicians and machinists working with milling cutters, saw blades, and grinding wheels are the primary installers of this type of spacer.

Key Features

• 0.006-inch thickness allows for fine incremental spacing adjustments
• 0.5-inch inner diameter fits standard small arbor and shaft sizes
• 0.75-inch outer diameter provides adequate bearing surface for most arbor applications
• Pack of 10 spacers supports multiple setups from a single purchase
• Precision-ground dimensions support repeatable, accurate positioning

Compatibility

Designed as an OEM-style replacement or supplemental spacer for use on arbors and spindles with a 0.5-inch bore diameter in machining and fabrication applications.

Installation Notes

Arbor spacers are installed by qualified machinists or maintenance technicians during tooling setup or arbor assembly. Always power down and lock out the machine before disassembling the arbor or spindle. Inspect the arbor bore and mating surfaces for burrs or contamination before stacking spacers. Stack multiple spacers of known thickness to achieve the required total axial spacing, and verify total stack dimension with a micrometer before returning the machine to service.

Technical Specifications

• Thickness: 0.006 inches
• Inner Diameter: 0.5 inches
• Outer Diameter: 0.75 inches
• Quantity per Pack: 10
• Weight: 0.01 pounds
• UPC: 698158241279

Standard Information

• Brand: PRECISION BRAND
• Manufacturer Part Number: 24127
