Pps 691514794402 Adapter Reducing (3/4 x 1/2 in) 79440

Product Description

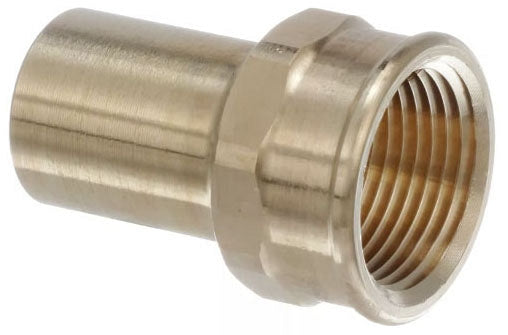

PPS 691514794402 is a lead-free ProPress reducing pipe adapter constructed of bronze to join press fittings to female NPT connections. It is intended for potable water, hydronic heating, chilled water, compressed air, non-medical gases, fire sprinkler, and low-pressure steam systems. The adapter has a nominal size of 3/4 x 1/2 in, a 200 psi pressure rating, a temperature range of 0 to 250 deg F, and an overall length of about 1.8 in.

• Bronze lead-free construction with ProPress press fitting to female NPT (FNPT) end style
• Nominal size 3/4 x 1/2 in; overall length 1-51/64 in (approx. 1.8 in)
• 200 psi pressure rating; temperature range 0 to 250 deg F; suitable for potable water and HVAC/fluid/gas systems

Product Highlights

Lead-free bronze ProPress reducing adapter, 3/4 x 1/2 in, press fitting to FNPT, 200 psi, 0–250 deg F

Product Information

Standard Information

• Brand: PPS
• Manufacturer Part Number: 691514794402
• Country of Origin: Import

Technical Specifications

• Brand: PPS
• MPN: 691514794402
• Manufacturer Part Number: 79440
• Manufacturer: Viega
• Product Name: Adapter Reducing
• Type: Press Fittings
• Material: Bronze
• End Style: Fitting x FNPT
• Fitting Connector Type: Adapter
• Size: 3/4 x 1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Length: 1-51/64 in (1.8 in)
• Application: Potable water; hydronic heating; chilled water; compressed air; non-medical gases; fire sprinkler; low-pressure steam
• Standard/Approvals: ABS Listed; ASTM B88; CSA MSE-13; FM 1920; IAPMO PS117; ICC LC 1002; NSF 61-G; UL 213
• Individual Weight: 0.1110 LB
• Category: Brass/Bronze/Copper Press Fittings
• Category Name: Pipe, Tube & Hose Fittings
