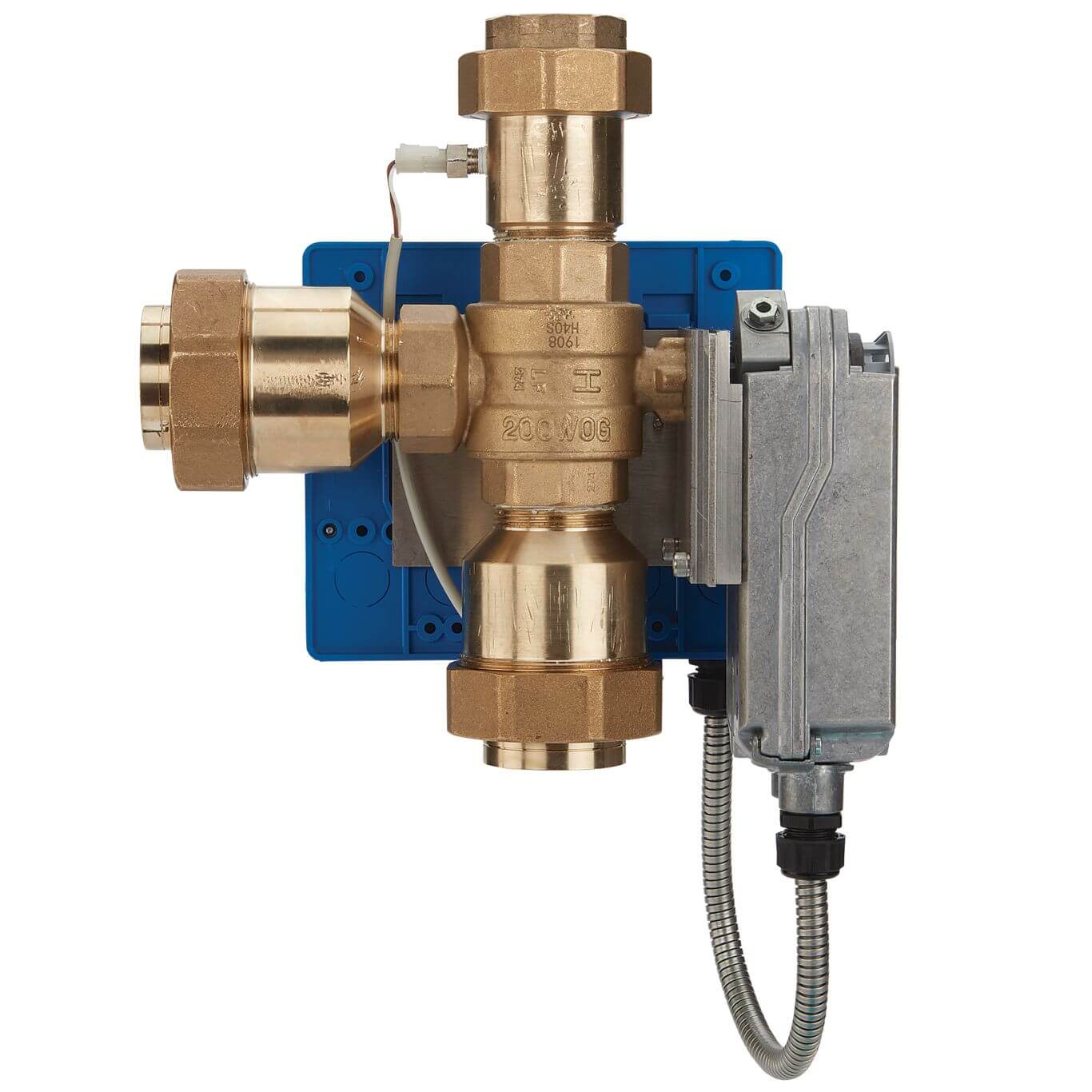

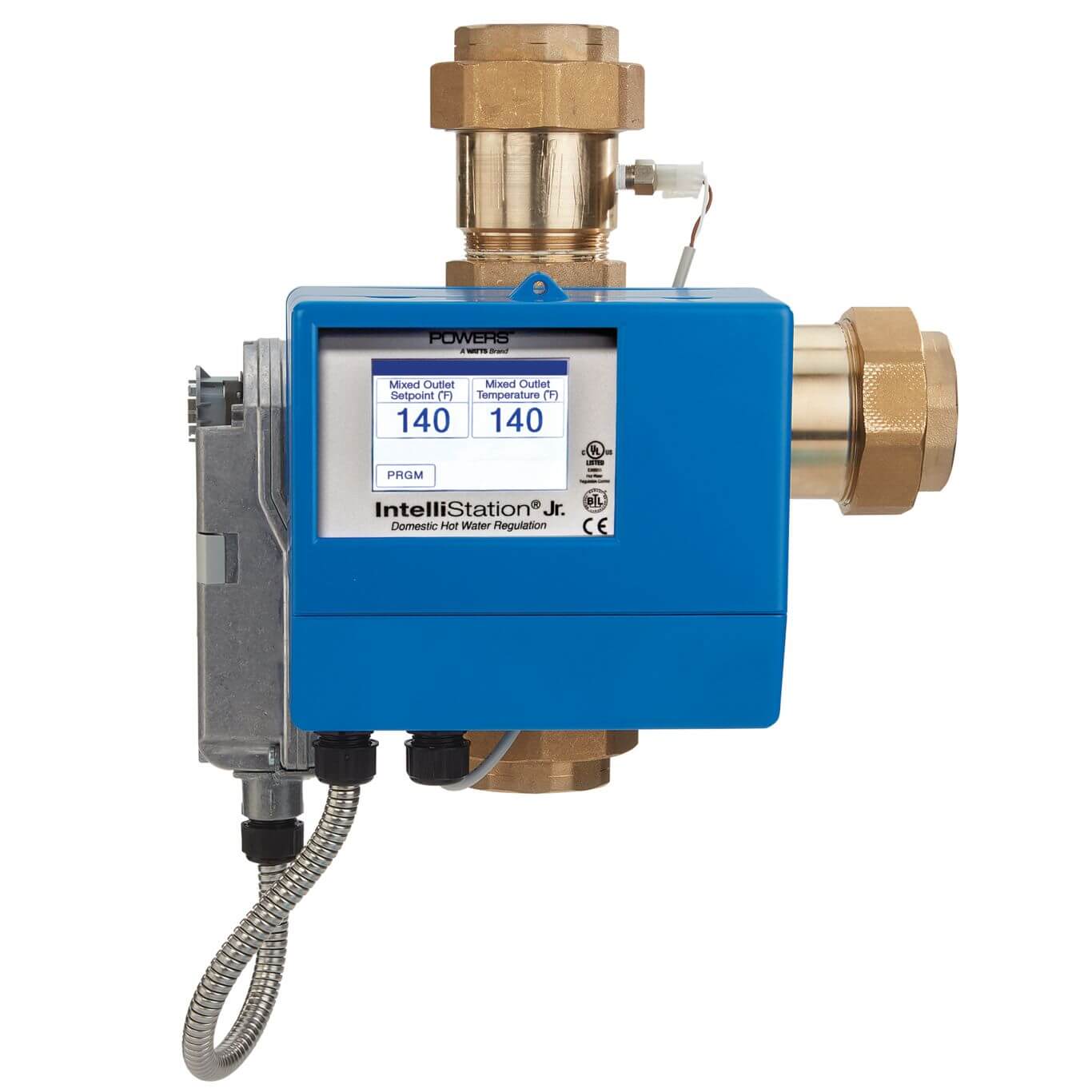

Powers LFIS075VL 3/4 Inlet IntelliStation Jr. Digital Water Mixing Valve

Product Description

The Powers LFIS075VL is a 3/4 inch inlet digital water mixing valve. This unit is designed for efficient mixing and precise control of hot and cold water. The IntelliStation Jr. is user-friendly and requires no factory programming. It can be configured on-site with ease.

• Programmable set point temperature range from sixty to one hundred eighty degrees Fahrenheit
• User-selectable touch screen display for easy monitoring
• Wi-Fi enabled for software upgrades and remote access

Product Highlights

This mixing valve enhances safety with features such as full cold flow during power failure and manual override capability.

Product Information

Standard Information

• Type: Mixing Valve
• Lead Free: Yes

Technical Specifications

• Inlet Size: 3/4 inches
• Outlet Size: 3/4 inches
• Max Temperature: 180 degrees Fahrenheit
• Min Temperature: 60 degrees Fahrenheit
• Max Pressure: 200 PSI
• Min Flow: 0.5 GPM
• Standards Met: CUPC, ASSE 1017
• Weight: 13.9 pounds
