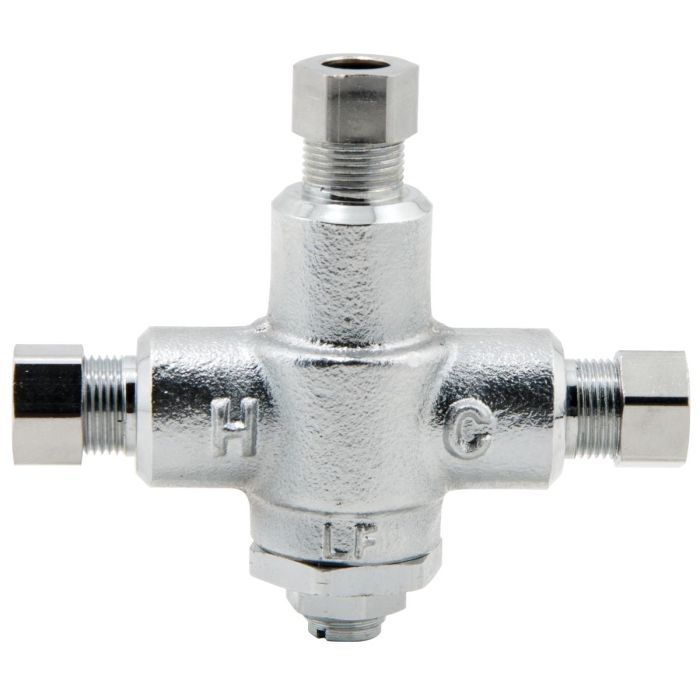

Powers LFE480-11 Thermostatic mixing valve 4 gpm (3/8 in) 6550046

Product Description

Powers LFE480-11 is a HydroGuard thermostatic mixing valve that provides temperature control for domestic hot water with 3/8 in compression inlets and outlets and a 4 gpm flow rate. The unit has a lead-free copper silicon alloy body with a chrome-plated finish, mixed water temperature range 80 to 120 F, cold inlet 40 to 80 F, hot inlet 120 to 180 F, and a maximum pressure of 125 psi. It meets ASSE 1070 and measures approximately 3 3/16 in by 3 3/16 in.

• Lead-free copper silicon alloy body with chrome-plated finish
• 3/8 in compression inlet and outlet; 4 gpm flow rate
• Mixed water 80 to 120 F; cold inlet 40 to 80 F; hot inlet 120 to 180 F; maximum pressure 125 psi; ASSE 1070 compliant

Product Highlights

Compact HydroGuard thermostatic mixing valve for domestic and lavatory hot water applications; 3/8 in compression connections; 4 gpm; ASSE 1070 compliant

Product Information

Standard Information

• Brand: POWERS
• Manufacturer Part Number: LFE480-11
• Country of Origin: United States

Technical Specifications

• Brand: Powers
• Model / MPN: LFE480-11
• Alternate MPN: 6550046
• Series: HydroGuard LFe480
• Item: Thermostatic Mixing Valve
• Body Material: Lead free copper silicon alloy
• Finish: Chrome plated
• Flow Rate: 4 gpm
• Inlet Size: 3/8 in
• Outlet Size: 3/8 in
• Inlet Type: Compression
• Outlet Type: Compression
• Temperature Range (Mixed): 80 to 120 F
• Inlet Temperature (Cold): 40 to 80 F
• Inlet Temperature (Hot): 120 to 180 F
• Max Pressure: 125 psi
• Overall Height: 3 3/16 in
• Overall Width: 3 3/16 in
• Standards: ASSE 1070
• For Use With: Domestic hot water applications
• Product Type: Under-the-counter lavatory combination mixing valve (HydroGuard, lead free)
• SKU: POWLFE48011
• UPC: 686408614607
• Country of Origin: United States
