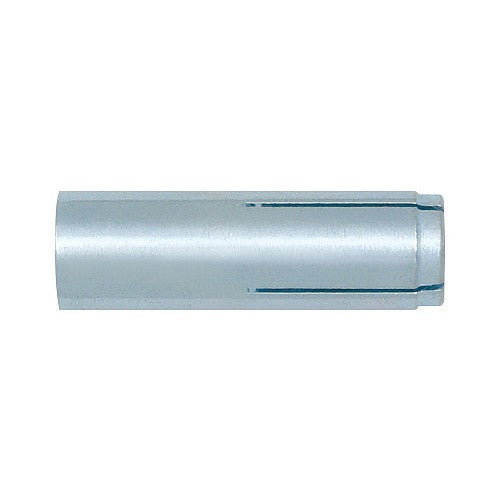

Powers Fasteners 06306-PWR Steel Drop-In Anchor

Product Description

The POWERS FASTENERS 06306-PWR is a steel drop-in anchor. It is an all-steel, machine bolt anchor available in carbon steel. It can be used in solid concrete, including lightweight concrete and concrete-filled steel deck members. The anchors can also be considered for hard stone and solid block base materials.

• Internally threaded anchor for easy bolt removability and service work
• Flanged (lipped) version installs flush for easy inspection and standard embedment
• Smooth wall dropin can be installed flush mounted or below the base material surface (optionally available with a knurled body)

Product Highlights

The steel drop-in anchor is designed for use in concrete, hard stone, and solid block base materials. It features an internally threaded design for easy bolt removal.

Product Information

Standard Information

• Brand: POWERS FASTENERS
• Manufacturer Part Number: 06306-PWR

Technical Specifications

• Catalog Number: 06306-PWR
• Anchor Size: 3/8"
• Anchor Length Overall: 1-9/16"
• Drill Diameter: 1/2"
• Internal Thread Depth: 5/8"
• Minimum Embedment Depth: 1-9/16"
• Pack Qty: 50
• Approvals: UL
