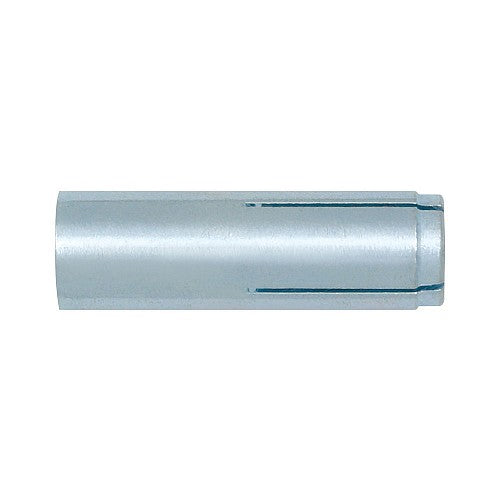

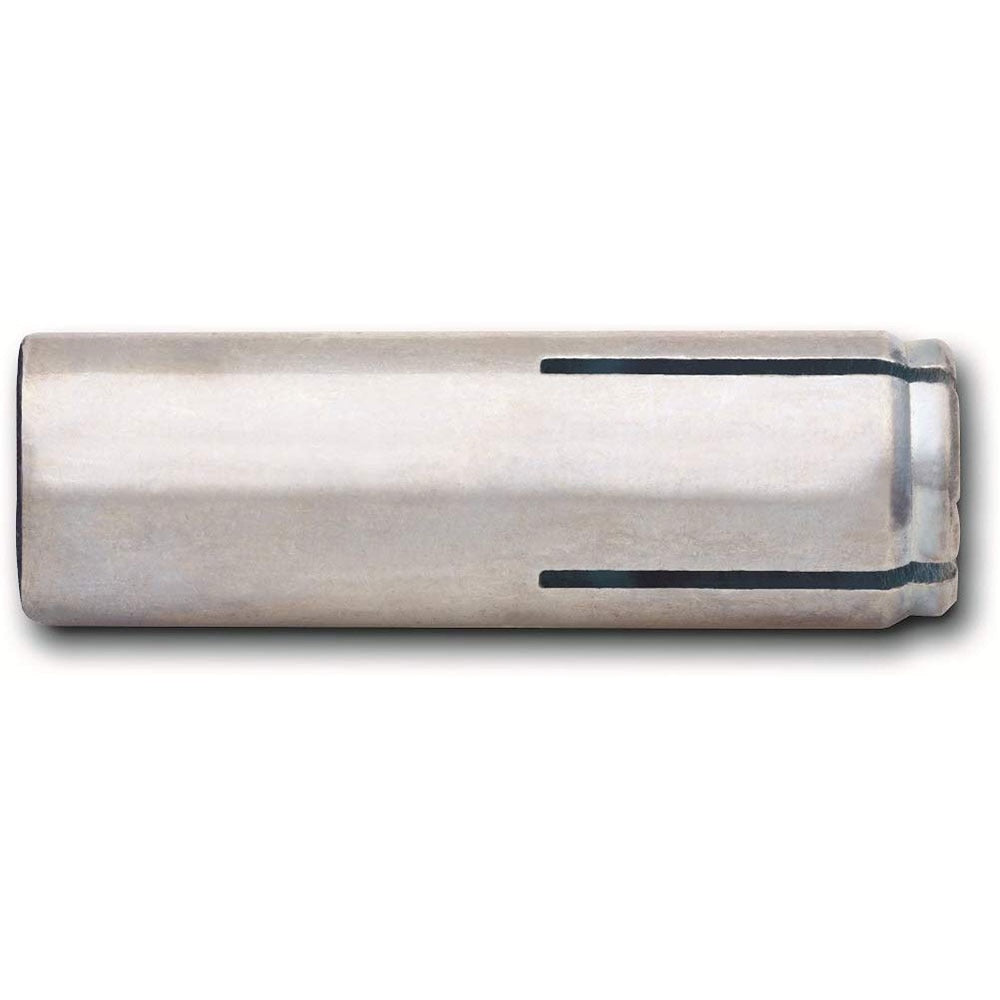

Powers Fasteners 06306-PWR 3/8 Steel Drop-In Anchor (50 Pack)

Product Description

The POWERS FASTENERS 06306-PWR Steel Dropin is an all-steel, machine bolt anchor available in carbon steel. It can be used in solid concrete, hard stone, and solid block base materials. The anchor features an internally threaded design for easy bolt removability and service work. It is suited for use in concrete formwork applications.

• All-steel, machine bolt anchor
• Can be used in solid concrete, hard stone and solid block
• Internally threaded anchor for easy bolt removability and service work

Product Highlights

The Steel Dropin anchor is ideal for use in concrete, hard stone, and solid block base materials.

Product Information

Standard Information

• Brand: POWERS FASTENERS
• Manufacturer Part Number: 06306-PWR

Technical Specifications

• Item: Drop-In Anchor
• Drop-In Anchor Type: Non-Flange
• Anchor Material: Carbon Steel
• Fastener Finish: Zinc Plated
• Material Grade: 1008
• Anchor Thread Size: 3/8"-16
• Anchor Diameter: 3/8"
• Anchor Length: 1-9/16"
• Thread Depth: 5/8"
• Bolt Diameter: 3/8"
• Drill Bit Size: 1/2"
• Min. Hole Depth: 1-9/16"
• Anchor Length Overall: 1-9/16"
• Drill Diameter: 1/2"
• Internal Thread Depth: 5/8"
• Minimum Embedment Depth: 1-9/16"
• Pack Qty: 50
• Brand: POWERS
• Part Number: 06306-PWR
• Model: 06306
• Manufacturer: Powers Fastening Innovations
• Number of Pieces: 50
• Thread Size: 3/8"
• Thread Coverage: Partially Threaded
• Fastener Size: 3/8" x 1"
• Size Name: 3/8"
• Compatible Groove Diameter: 0.38 Inches
• Metal Type: Carbon Steel
• Thread Type: Unc
• Set Screw Thread Type: Unified National Coarse (UNC)
• Thread Style: Right Hand
• Thread Class: 2A
• Grade Rating: Standard
• Drive System: External Hex
