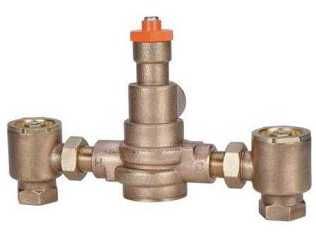

Powers ETV200-13 - Emergency Tempering Valve

Product Description

The Powers ETV200-13 is an emergency tempering valve designed for safety in hot water systems. It features a cold water bypass to maintain safe temperatures. The valve has a temperature adjustment range from sixty to ninety-five degrees Fahrenheit. This model includes a vandal-resistant locking mechanism and check stops for enhanced safety and efficiency.

• Temperature range: sixty to ninety-five degrees Fahrenheit
• Vandal-resistant locking mechanism
• Thirty gallons per minute bypass flow rate at thirty psi

Product Highlights

This valve is essential for any emergency fixture that requires tempered water. It effectively manages water temperature to ensure safety.

Product Information

Standard Information

• Brand: Powers
• Model: ETV200

Technical Specifications

• MPN: ETV200-13
• Valve Application: Tempered Water for Emergency Fixtures
• Body Material: Brass
• Valve Connection: FPT
• Inlet Connection Size: 3/4 inches
• Outlet Connection Size: 1 inch
• Minimum Flow GPM: 3 GPM
• Minimum Outlet Temperature: 60 degrees Fahrenheit
• Maximum Outlet Temperature: 95 degrees Fahrenheit
• Set Temperature: 85 degrees Fahrenheit
• Max Pressure: 125 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: Yes
• ASSE Classification: 1071
• Weight: 6.20 lbs
