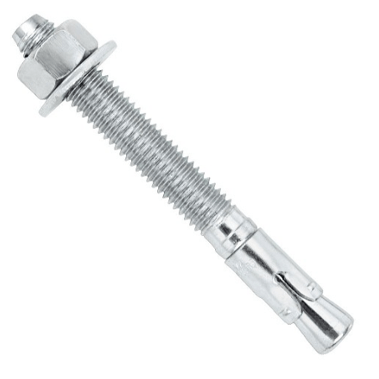

Powers 7416SD1-PWR Power-Stud+ Sd1 3/8 x 5

Product Description

The POWERS 7416SD1-PWR Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete. It is manufactured with a zinc plated carbon steel body and expansion clip. Nut and washer are included. Suitable for structural connections, safety-related attachments, and tension zone applications.

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes

Product Highlights

The Power-Stud+ SD1 anchor is designed for use in normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry.

Product Information

Standard Information

• Brand: POWERS
• Manufacturer Part Number: 7416SD1-PWR
• Country of Origin: GERMANY

Technical Specifications

• MPN: 7416SD1-PWR
• Brand: POWERS
• Manufacturer: Powers Fastening Innovations
• Item model number: 7416SD1
• Item Package Quantity: 1
• Cutting Diameter: 3/8 Inches
• Measurement System: inch
• Certification: AN, ISO-9001
• Usage: Concrete
• Included Components: Unit^Instruction Guide
• Batteries Included?: No
• Batteries Required?: No
• Assembled Diameter: 3/8 Inches
• Package Quantity: 50
• Package Size: Package
• Diameter: 3/8"
• Length: 5"
• Thread Length: 3-5/8"
• Material: Steel
• Finish: Zinc Plated
• Thread: Coarse
• Product Type: Wedge Anchors
• Drill Size: 3/8 in
• Head Type: Hex
• Minimum Embedment Depth: 1-5/8 in
• Overall Length: 5 in
• Shear Strength: 2540 lb
• Tensile Strength: 2685 lb
• Thread Size: 3/8-16
• Thread Type: UNC
• Type: Wedge Anchor
• Country of Origin: United States
