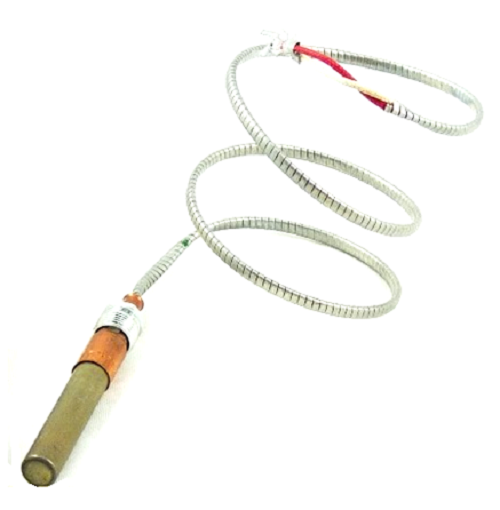

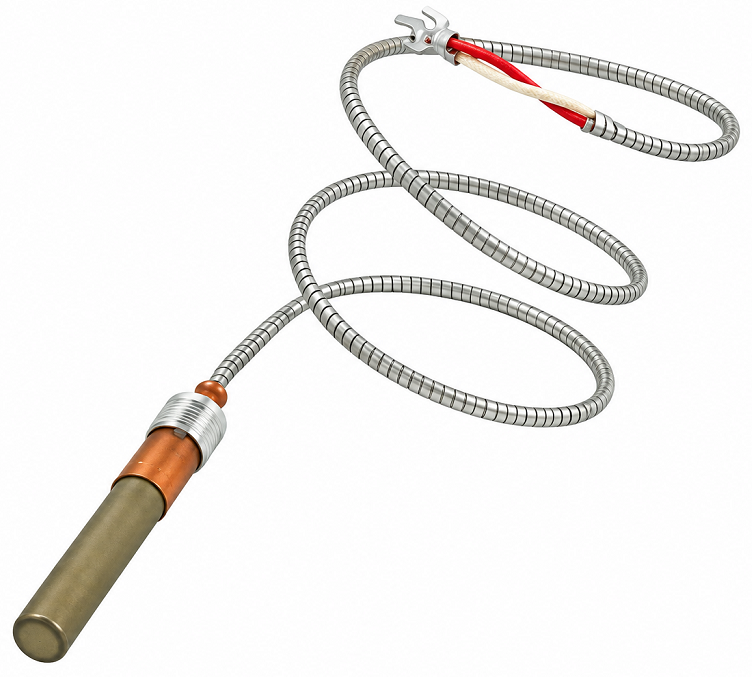

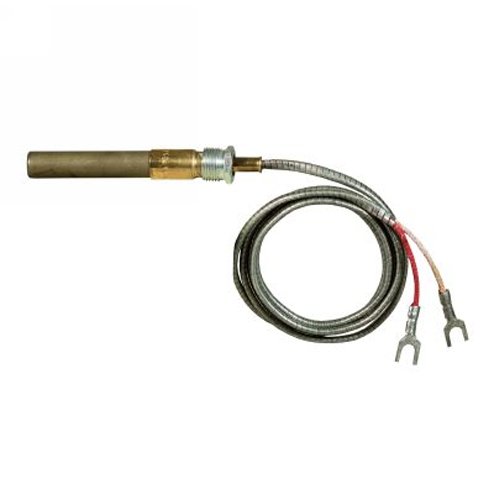

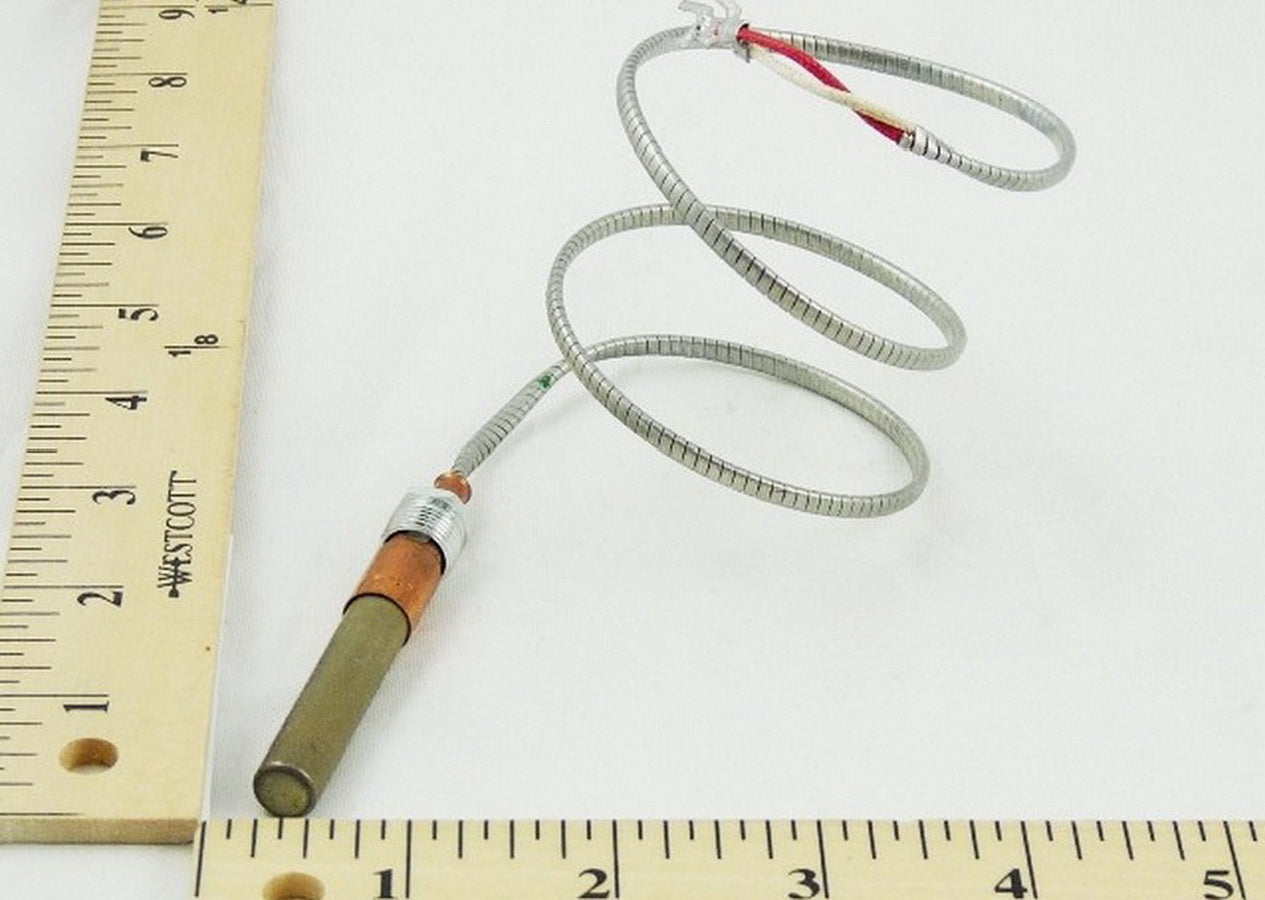

Resideo Q313A1014 750 mV Thermopile (23 inches Lead A)

Product Description

Resideo Q313A1014 is a thermopile sensor that generates approximately 750 mV and is supplied with 23-inch leads for temperature and infrared sensing in HVAC and sensor assemblies. It converts thermal energy from a pilot flame or heat source into a millivolt output for millivolt control circuits. The two-lead, metal-shielded design with spade terminals provides integration with standard pilot burners and furnace systems.

• Produces approximately 750 mV output (open-circuit ~600 mV to 750 mV) with rated resistance 2.88 ohms
• Two metal-shielded leads with 23-inch length and spade terminal connections
• Hot junction temperature rating up to 1400°F (760°C); compatible with Q314 and Q324 pilot burners for millivolt gas control and HVAC applications

Product Highlights

750 mV thermopile with 23-inch metal-shielded leads, spade terminals, 2.88 ohm resistance, and high hot-junction temperature rating for HVAC and millivolt gas-control integration.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: Q313A1014
• Country of Origin: Mexico
