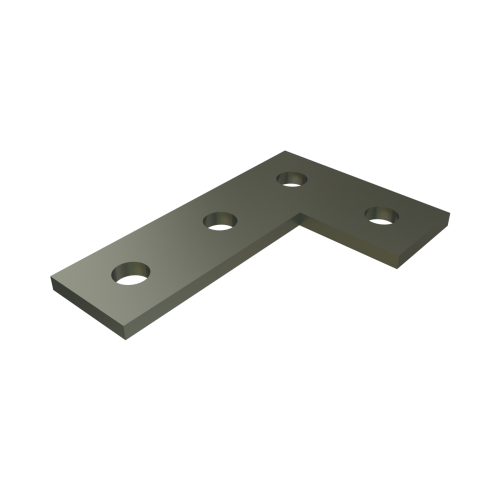

Power-Strut P1380A SS 4 Hole, Flat Plate Fitting

Product Description

The POWER-STRUT P1380A SS is a 4-hole flat plate fitting designed for metal framing. This fitting is constructed from Stainless Steel - 304, providing a sturdy solution for joining metal framing components. It features 9/16 inch (14mm) diameter holes, spaced 1 7/8 inch (48mm) on-center, and has a width of 1 5/8 inch (41mm). Its flat design enables flexible connection methods and configurations for various support structures.

• Constructed from steel meeting ASTM A1011 SS GR 33 standards.
• Features 9/16 inch (14mm) diameter holes, suitable for 1/2 inch fasteners.
• Offers versatility with various material and finish options for diverse applications.

Product Highlights

Sturdy Stainless Steel 304 flat plate fitting for secure metal framing connections.

Product Information

Standard Information

• Brand: POWER-STRUT
• Manufacturer Part Number: P1380A SS

Technical Specifications

• Material Type: Stainless Steel - 304
• Surface Finish: Stainless Steel - 304
• Base Metal Standard: ASTM A240 or A276, Type 304
• Hole Diameter: 9/16 inch (14mm)
• Hole Spacing From End: 13/16 inch (21mm)
• Hole Spacing On-Center: 1 7/8 inch (48mm)
• Width: 1 5/8 inch (41mm)
• Thickness: 1/4 inch (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or 0.220 inch (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45
