POWER DRIVE H-1-7/16 Bushing

Product Description

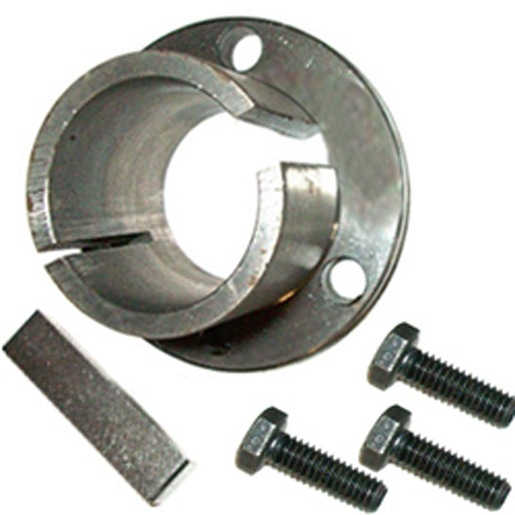

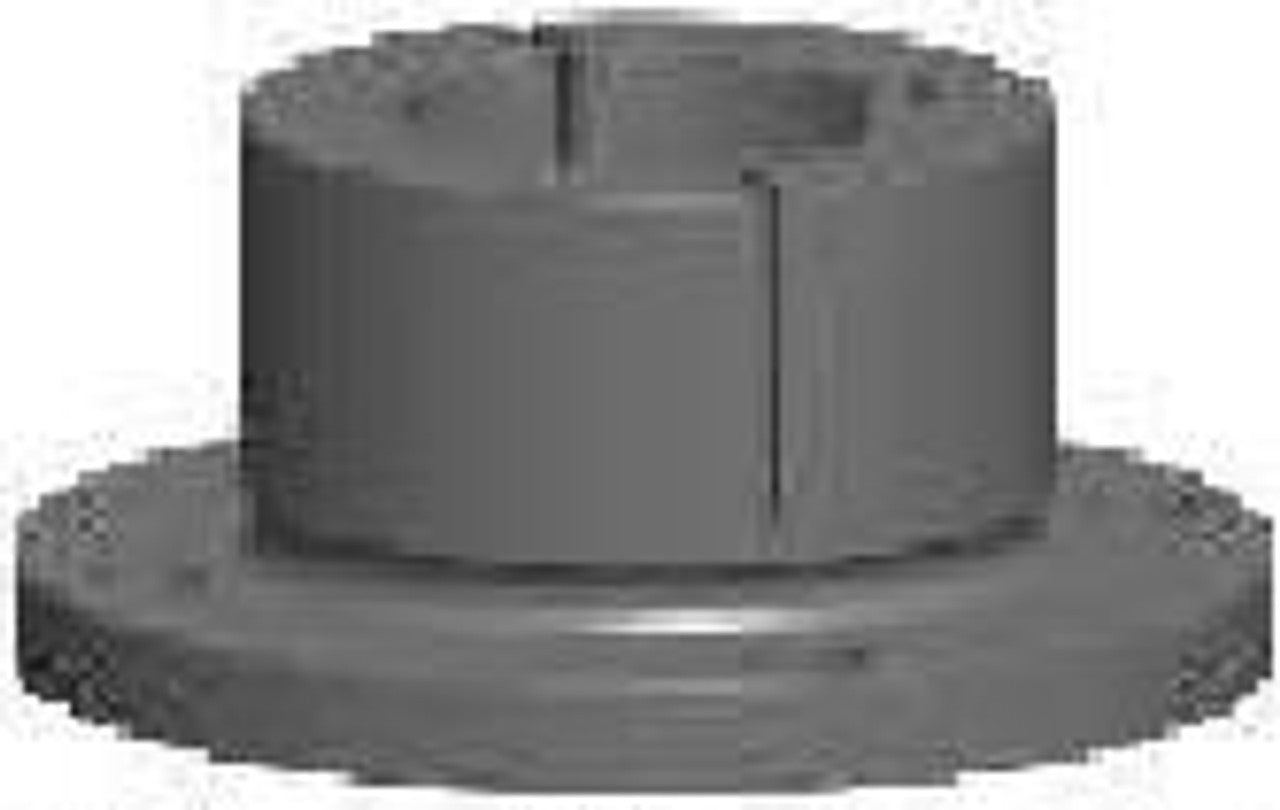

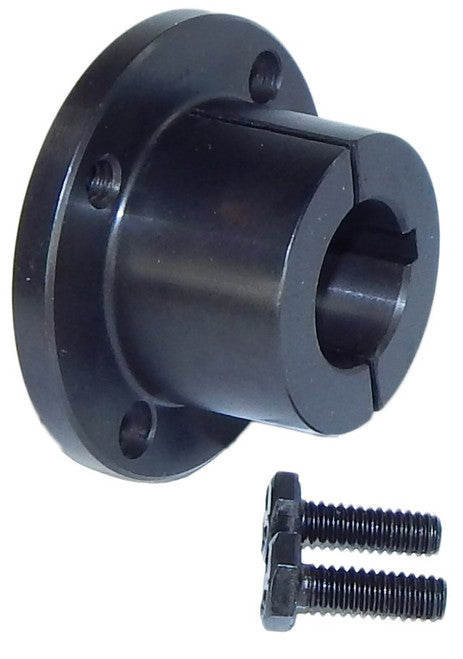

The POWER DRIVE H-1-7/16 bushing is a split taper bushing. It is designed for use with pulleys and sheaves, featuring a bore size of one and seven-sixteenths inches. This bushing is perfect for applications that require a removable connection. It is made from steel and has a black oxide finish for added durability. Installation is simple with the included screws, and it comes with a keyway for secure fitting.

• Bore size: 1-7/16 inches
• Material: Steel
• Style: Split Taper

Product Highlights

The POWER DRIVE H-1-7/16 bushing ensures reliable performance in various pulley applications.

Product Information

Standard Information

• MPN: H-1-7/16
• UPC: 637363066987

Technical Specifications

• Bore Size: 1.438 inches | 36.525 millimeters
• Bore Type: Finished Bore
• Bushing Series: H
• Bushing Style: Split Taper
• Outside Diameter: 1.625 inches | 41.275 millimeters
• Length Thru Bore: 1.25 inches | 31.75 millimeters
• Material: Steel
• Finish: Black Oxide
• Torque Capacity: 95 lb/in
• Weight: 0.80 lbs
• Keyway: Yes
