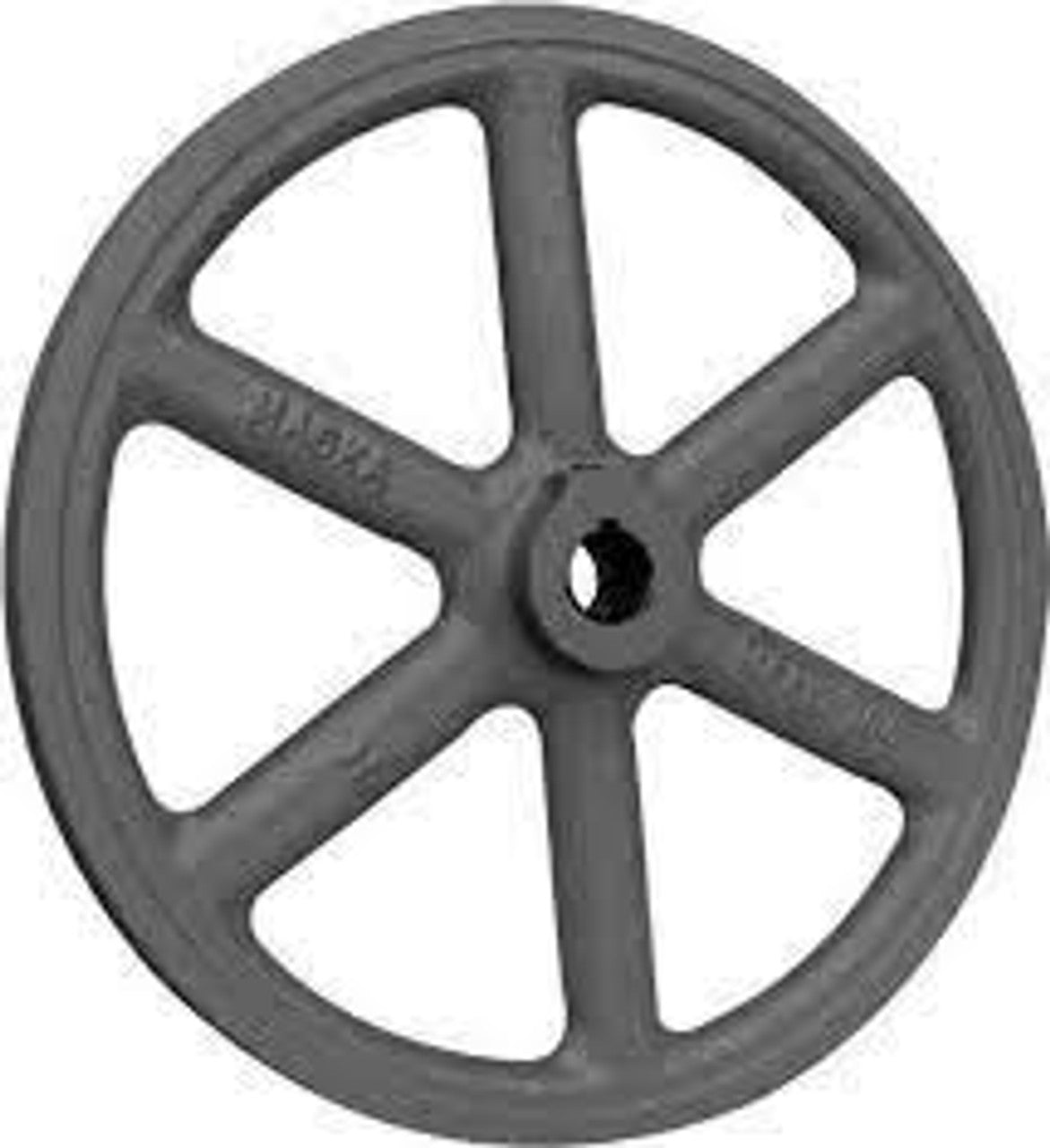

POWER DRIVE BK62-5/8 Fixed Pitch Sheave

Product Description

The POWER DRIVE BK62-5/8 is a fixed pitch sheave designed for efficient power transmission. This product features a bore size of five eighths inches and is made for use with B section belts. A single groove construction assists in securing the belt during operation.

• Designed for power transmission applications
• Single groove for B section belts
• Includes a keyway for easy mounting

Product Highlights

This sheave provides reliable performance and ease of installation for your belt drive system.

Product Information

Standard Information

• Type: Fixed Pitch Sheave
• Bore Size: 5/8 Inches

Technical Specifications

• Outside Diameter: 5.95 Inches | 151.13 Millimeter
• Mounting Method: Finished Bore
• Bushing Size: No Bushing
• Belt Series: 4L | A | 5L | B
• Keyway: Yes
• Pitch Diameter Minimum: 5.2 Inches | 132.08 Millimeter
• Pitch Diameter Maximum: 5.6 Inches | 142.24 Millimeter
• Weight: 2.76 lbs
