POWER DRIVE BK40-1/2 V-Belt Pulley

Product Description

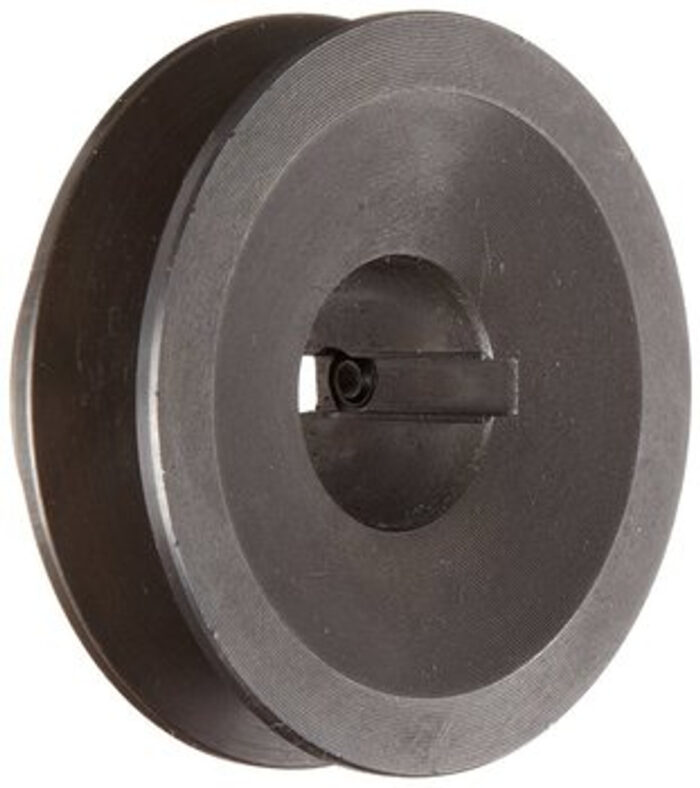

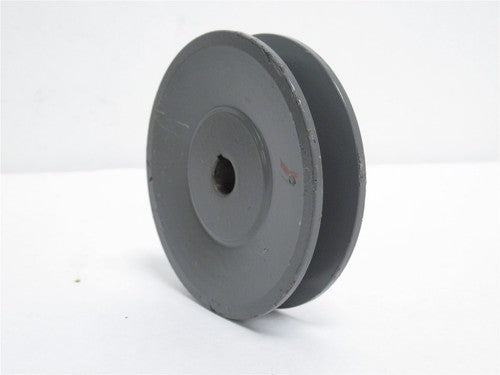

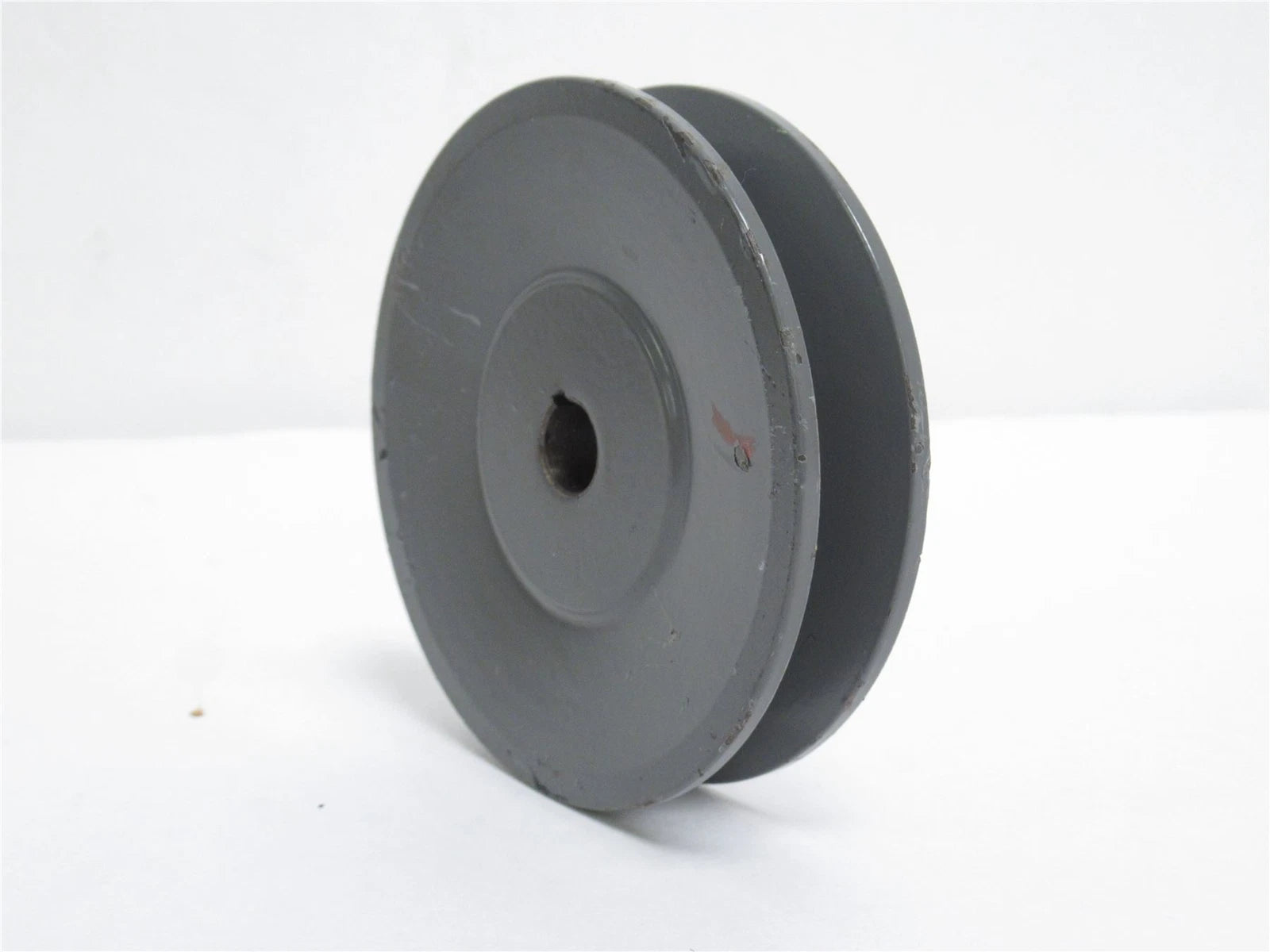

The POWER DRIVE BK40-1/2 is a fixed pitch sheave that features a half-inch bore. This component is ideal for power transmission and is compatible with the 4L, A, 5L, and B belt series. It is designed with a single groove and has a finished bore without a keyway. The outside diameter of the pulley measures three point nine five inches.

• Single groove configuration
• Compatible with 4L, A, 5L, and B belt series
• Finished bore without a keyway

Product Highlights

The POWER DRIVE BK40-1/2 pulley is essential for effective power transmission across various applications.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: BK40-1/2

Technical Specifications

• Number of Grooves: 1
• Mounting Method: Finished Bore
• Bushing Size: No Bushing
• Belt Series: 4L | A | 5L | B
• Keyway: No
• Bore Size: 0.5 Inch | 12.7 Millimeter
• Outside Diameter: 3.95 Inch | 100.33 Millimeter
• Pitch Diameter Maximum: 3.6 Inch | 91.44 Millimeter
• Belt Width Maximum: 0.656 Inch | 16.662 Millimeter
• Pitch Diameter Minimum: 3.2 Inch | 81.28 Millimeter
• Belt Width Minimum: 0.5 Inch | 12.7 Millimeter
• Type: Fixed Pitch Sheave
• Groove Type: Single Groove
