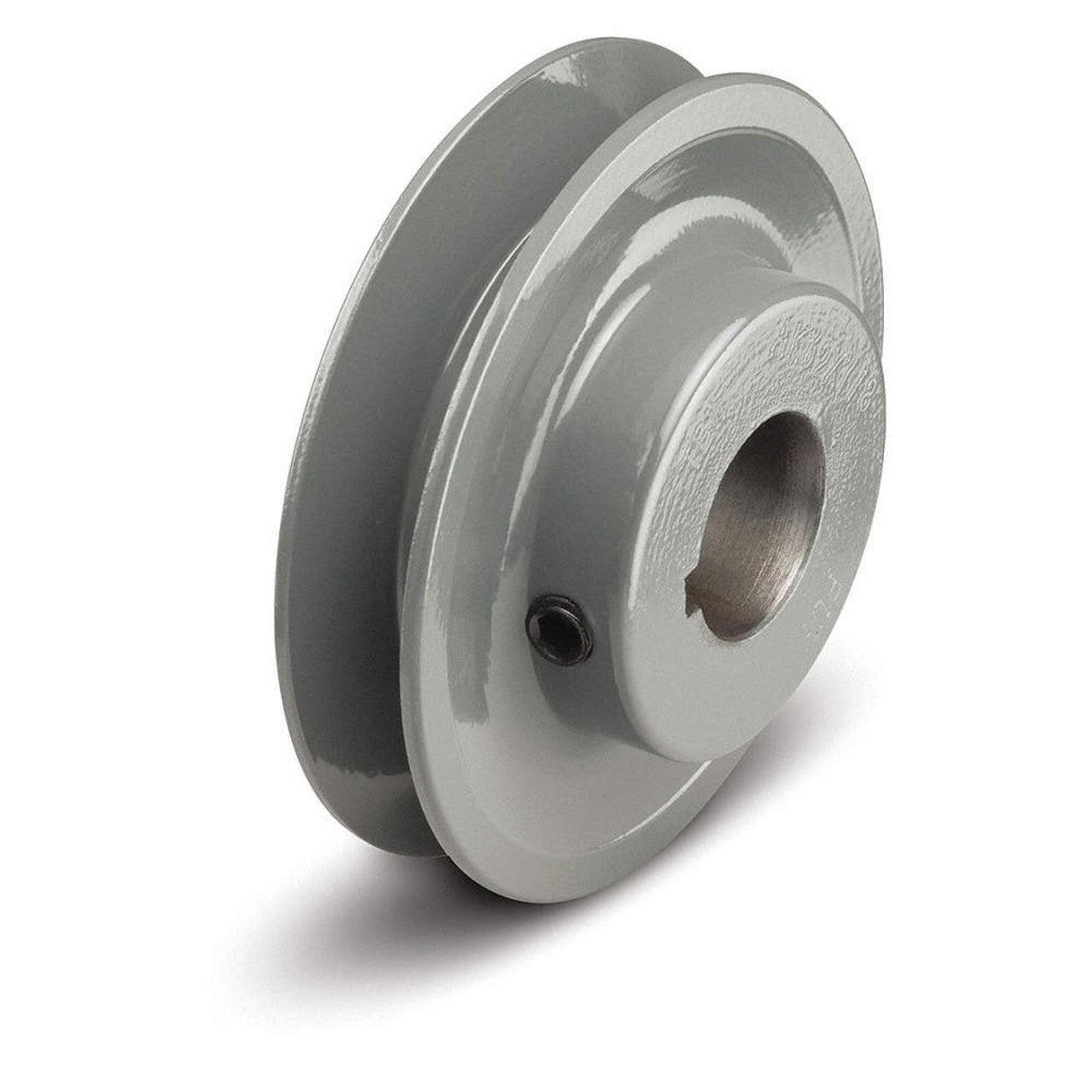

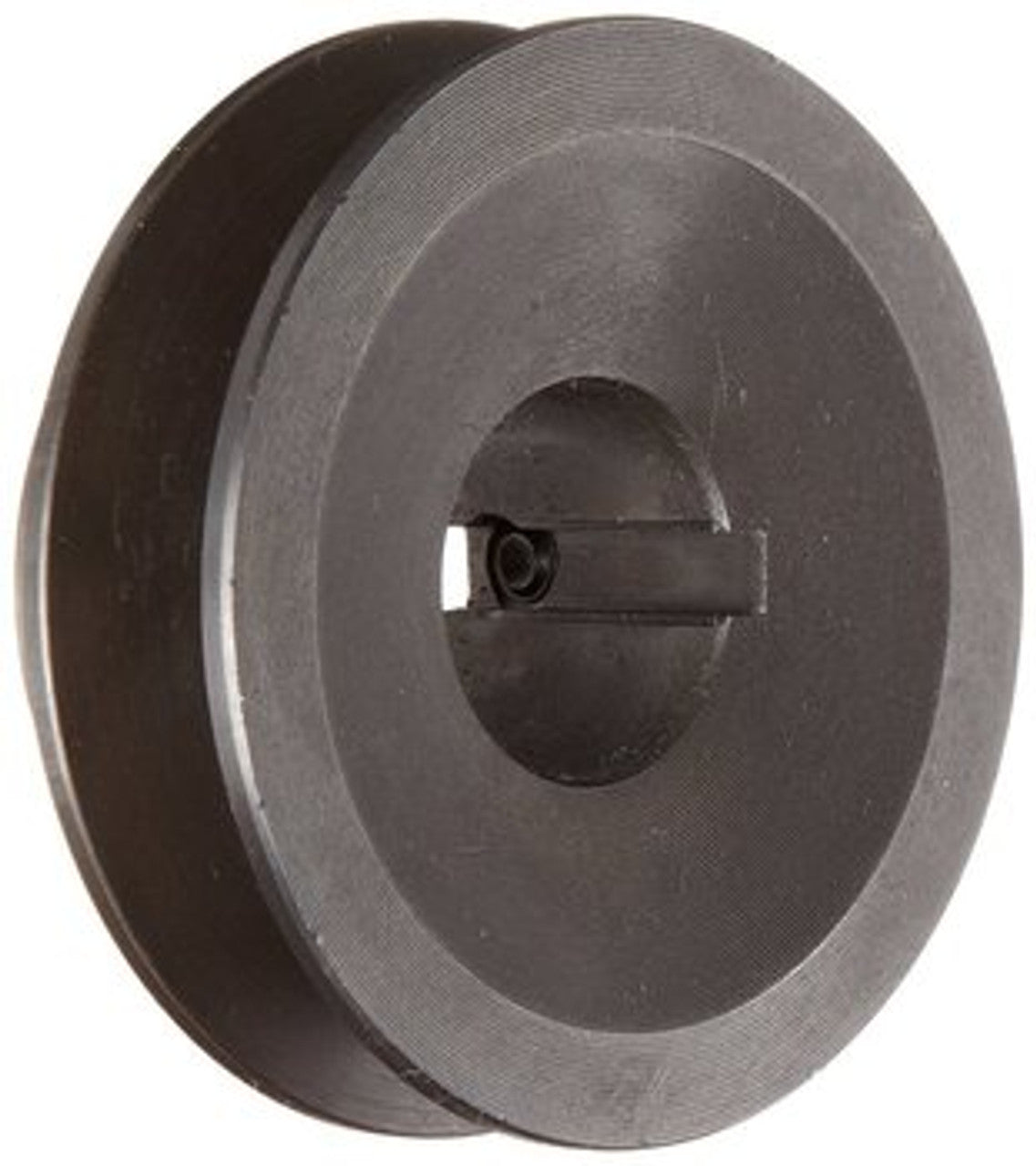

Power Drive BK34-7/8 V-Belt Pulley

Product Description

The Power Drive BK34-7/8 is a single-groove V-belt pulley designed for optimal performance. This pulley fits 4L, A, 5L, and B belt series, providing versatility in applications.

• Fixed bore of 7/8 inches for easy installation
• Compatible with multiple belt series
• Includes a finished bore with a keyway for secure mounting

Product Highlights

The pulley features a pitch diameter ranging from 2.8 inches to 3.2 inches, making it suitable for various mechanical setups.

Product Information

Standard Information

• Brand: Power Drive
• MPN: BK34-7/8

Technical Specifications

• Number of Grooves: 1
• Outside Diameter: 3.55 inches
• Bore: 0.875 inches
• Mounting Method: Finished Bore
• Belt Series: 4L | A | 5L | B
• Pitch Diameter Minimum: 2.8 inches
• Pitch Diameter Maximum: 3.2 inches
• Keyway: Yes
• Belt Width Minimum: 0.5 inches
• Belt Width Maximum: 0.656 inches
• Material: Cast Iron
• Other Features: Web Style
